• KOINO KSL16 Ø16 K Series Key Selector Switches
1 1

KOINO KSL16 Ø16 K Series Key Selector Switches

KOINO KSL16 Ø16 K Series Key Selector Switches

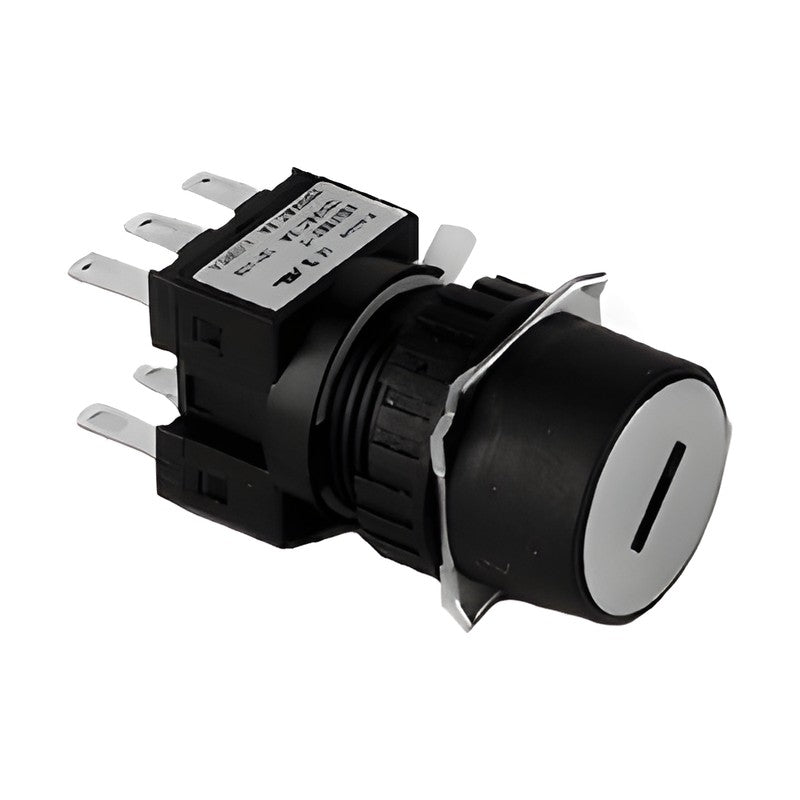

Ø16 mm modular key-operated selector switches in round, square and rectangular shapes with 2- or 3-position maintained or spring-return operation.

Key features

  • KC, UL/cUL, CE and CCC certified
  • Silver-alloy contacts suitable from general machinery to low-current circuits
  • Max. ambient temperature rating 50 °C

Specifications

Mounting Hole Ø16 mm
Contact Rating 250 VAC 3 A (resistive)
Contacts Up to 2c
Operating Temperature -15 to +55 °C (no icing)
Protection IP40
Material Body: Nylon glass, Contact block: PBT, Ring: Nylon glass
Certification KC (except AK2 types), UL/cUL, CE
KSL16K2 Shape: Round | Operation: 2-position maintained
KSL16AK2 Shape: Round | Operation: 2-position spring return | Status: Discontinued
KSL16K3 Shape: Round | Operation: 3-position maintained
KSL16AK3 Shape: Round | Operation: 3-position spring return
KSL16SK2 Shape: Square | Operation: 2-position maintained
KSL16SAK2 Shape: Square | Operation: 2-position spring return | Status: Discontinued
KSL16SK3 Shape: Square | Operation: 3-position maintained
KSL16SAK3 Shape: Square | Operation: 3-position spring return
KSL16RK2 Shape: Rectangular | Operation: 2-position maintained
KSL16RAK2 Shape: Rectangular | Operation: 2-position spring return | Status: Discontinued
KSL16RK3 Shape: Rectangular | Operation: 3-position maintained
KSL16RAK3 Shape: Rectangular | Operation: 3-position spring return
Selector SwitchesKOINO
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KSL16 Ø16 K Series Key Selector Switches

Brand KOINO·Selector Switches

Available part numbers (12)

KSL16K2, KSL16AK2, KSL16K3, KSL16AK3, KSL16SK2, KSL16SAK2, KSL16SK3, KSL16SAK3, KSL16RK2, KSL16RAK2 + 2 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KSL16K2Shape: Round | Operation: 2-position maintained
KSL16AK2Shape: Round | Operation: 2-position spring return | Status: Discontinued
KSL16K3Shape: Round | Operation: 3-position maintained
KSL16AK3Shape: Round | Operation: 3-position spring return
KSL16SK2Shape: Square | Operation: 2-position maintained
KSL16SAK2Shape: Square | Operation: 2-position spring return | Status: Discontinued
KSL16SK3Shape: Square | Operation: 3-position maintained
KSL16SAK3Shape: Square | Operation: 3-position spring return
KSL16RK2Shape: Rectangular | Operation: 2-position maintained
KSL16RAK2Shape: Rectangular | Operation: 2-position spring return | Status: Discontinued
KSL16RK3Shape: Rectangular | Operation: 3-position maintained
KSL16RAK3Shape: Rectangular | Operation: 3-position spring return
