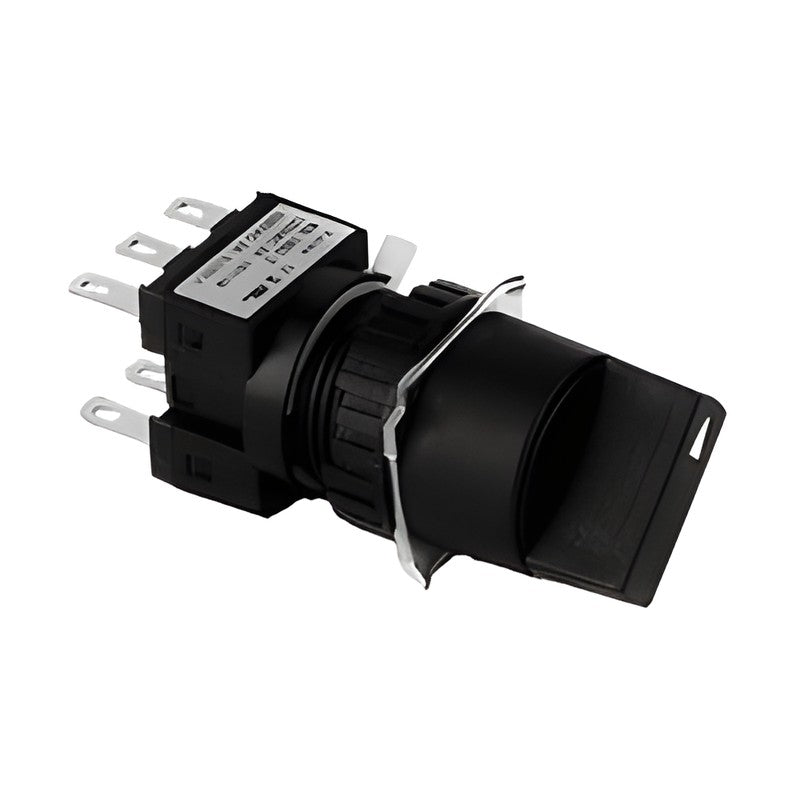

KOINO KSL16 Ø16 K Series Selector Switches

Ø16 mm modular selector switches in round, square and rectangular shapes with 2- or 3-position maintained or spring-return operation, non-illuminated or LED illuminated.

Key features

KC, UL/cUL, CE and CCC certified
Silver-alloy contacts suitable from general machinery to low-current circuits
Tested to elevator safety standard KS C IEC 60947-5-1 (Annex K: KSL16SS2-1/2)
Illuminated selectors are made to order
Max. ambient temperature rating 50 °C

Specifications

Mounting Hole	Ø16 mm
Light Source	Non-illuminated or L: LED (full voltage)
Input Voltage	1C: 6 V, 2C: 12 V, 3C: 24 V
Knob Colour	R/G/Y/O/B (illuminated type)
Contact Rating	250 VAC 3 A (resistive)
Contacts	Up to 2c
Operating Temperature	-15 to +55 °C (no icing)
Protection	IP40
Material	Body: Nylon glass, Contact block: PBT, Ring: Nylon glass, Knob: Nylon glass
Certification	KC (except AS2 types), UL/cUL, CE

KSL16S2		Shape: Round \| Operation: 2-position maintained
KSL16AS2		Shape: Round \| Operation: 2-position spring return \| Status: Discontinued
KSL16S3		Shape: Round \| Operation: 3-position maintained
KSL16AS3		Shape: Round \| Operation: 3-position spring return
KSL16SS2		Shape: Square \| Operation: 2-position maintained
KSL16SAS2		Shape: Square \| Operation: 2-position spring return \| Status: Discontinued
KSL16SS3		Shape: Square \| Operation: 3-position maintained
KSL16SAS3		Shape: Square \| Operation: 3-position spring return
KSL16RS2		Shape: Rectangular \| Operation: 2-position maintained
KSL16RAS2		Shape: Rectangular \| Operation: 2-position spring return \| Status: Discontinued
KSL16RS3		Shape: Rectangular \| Operation: 3-position maintained
KSL16RAS3		Shape: Rectangular \| Operation: 3-position spring return

Selector SwitchesKOINO

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KSL16 Ø16 K Series Selector Switches

Brand KOINO·Selector Switches

Available part numbers (12)

KSL16S2, KSL16AS2, KSL16S3, KSL16AS3, KSL16SS2, KSL16SAS2, KSL16SS3, KSL16SAS3, KSL16RS2, KSL16RAS2 + 2 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
