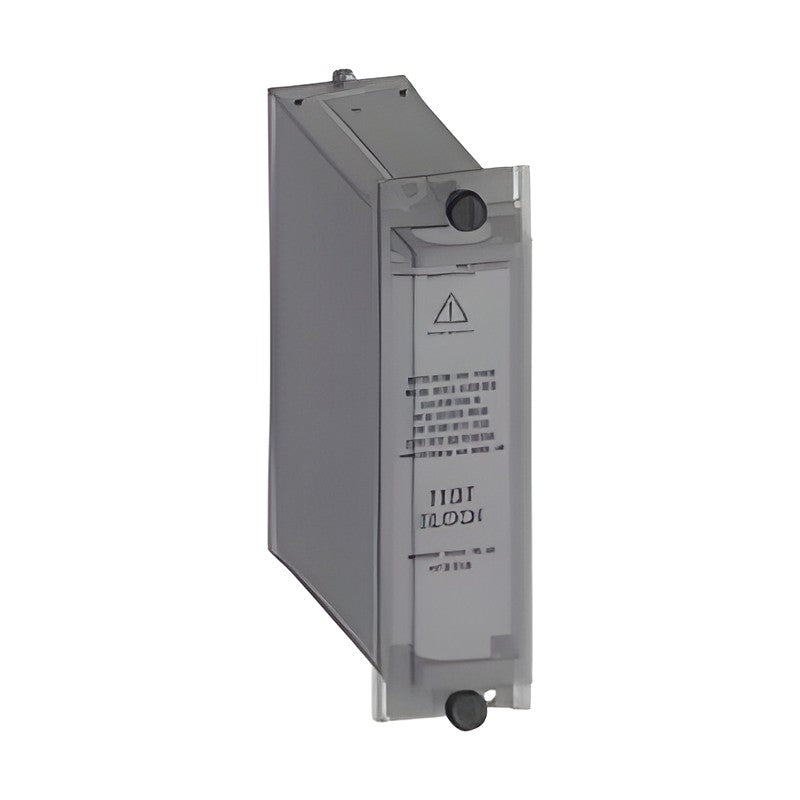

KOINO KTB4300 14-Circuit Test Terminal Block

Test terminal block with 14 equipment-side terminals and 14 linked opposite terminals for panel cut-out mounting. 14 equipment-side terminals (even numbers) and 14 linked opposite terminals (odd numbers). 13 terminals linked; terminals 13 and 14 are an insulated circuit.

Key features

Up to 12 independent circuits
Additional DC auxiliary circuit with insulating link on terminals 13 and 14
Circuit 13-14 opens automatically when the insulating plug is removed

Specifications

Rated insulation voltage	600 V max.
Rated current	20 A
Insulation resistance	100 MOhm
Dielectric strength	2,500 V (60 Hz) 1 min
Applicable wire	2.5 mm2
Terminal bolt	M4
Operating temperature	-5 to +55 C (no icing)
Operating humidity	45 to 85 %
Material	Terminal block Nylon, plug body ABS, case Fe, cover PC

KTB4300

Rated current: 20 A
