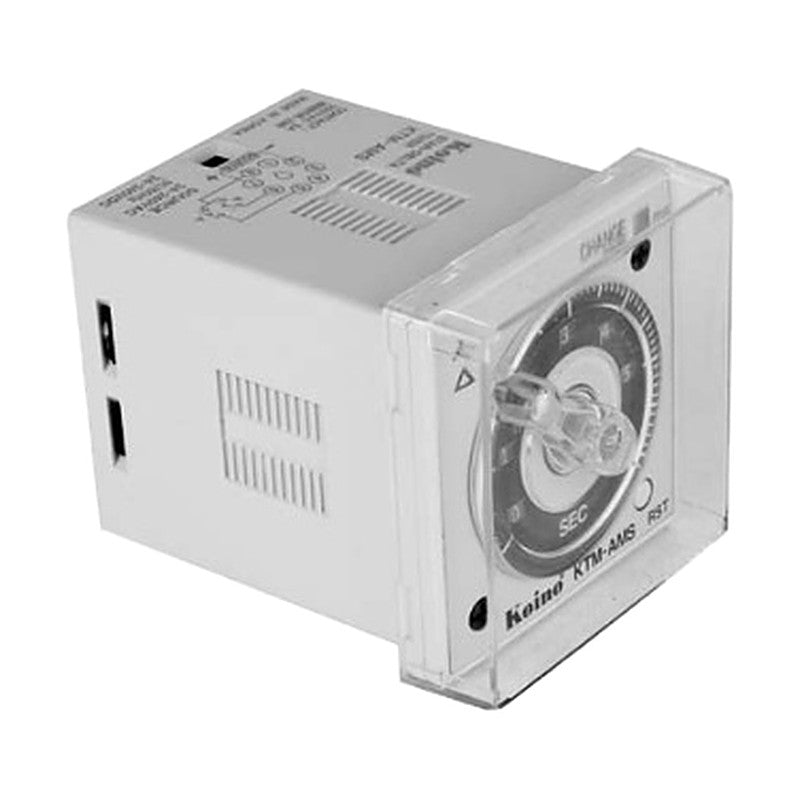

KOINO KTM-AMS Star-Delta Timer

Analog star-delta timer for motor starting with 0.5-120 s star time and selectable 50-500 ms transfer time.

Key features

Free power supply 24-240 VAC (50/60 Hz) and 24-240 VDC
Star time setting 0.5-120 s
Transfer time 50/100/200/250/400/500 ms
Front RST (reset) button for power on/off
LED indication of operation and output
Suited to motor drive control

Specifications

Time Range	0.5-120 s (6/12/60/120 s ranges)
Transfer Time	50, 100, 200, 250, 400, 500 ms
Supply Voltage	24-240 VAC 50/60 Hz, 24-240 VDC
Power Consumption	24-240 VDC max. 1.0 W / 24-240 VAC max. 2.0 VA
Control Output	Star contact SPST (1a), delta contact SPST (1a)
Contact Capacity	250 VAC 5 A, 30 VDC 5 A resistive
Reset Time	100 ms max.
Ambient Temperature	-10 to +55 C
Housing	ABS (ivory)
Weight	Approx. 110 g
