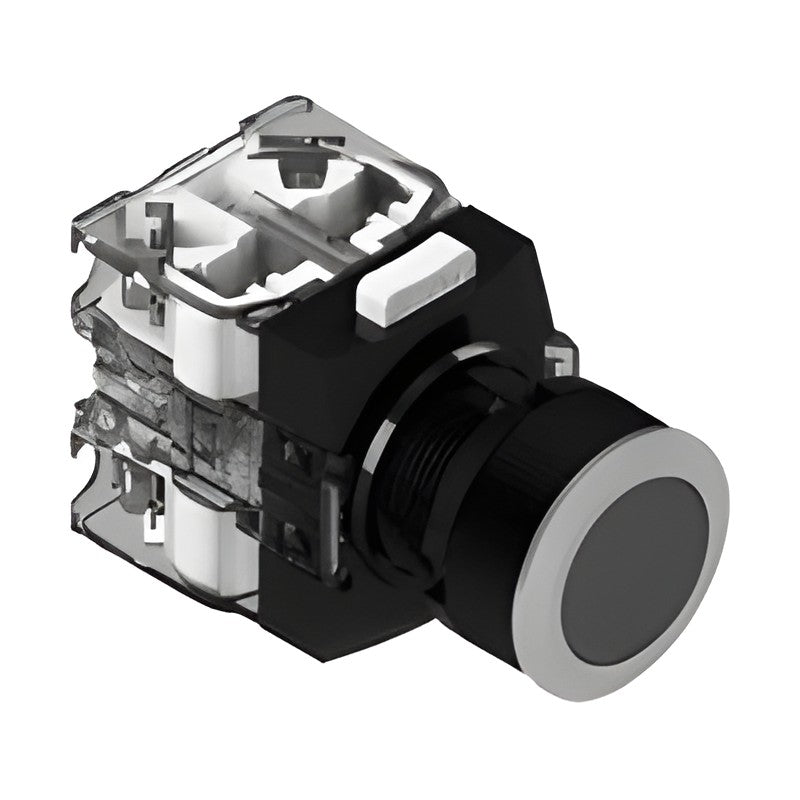

KOINO NF25 / NF30 Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (AL Series)

KOINO NF25 / NF30 Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (AL Series)

Ø25 mm and Ø30 mm flush-mount control switches with aluminium guard, available as pilot lamps, push buttons, emergency buttons, selectors and key selectors.

Key features

  • KC, CE and UL/cUL certified
  • Premium aluminium guard with NF-dedicated contact blocks
  • Protrudes 2 mm or less from the panel
  • Tested to elevator safety standard KS C IEC 60947-5-1 (NF25W-BM3C)
  • Max. surrounding air temperature 40 °C

Specifications

Rated Voltage/Current Ue 125 VAC Ie 10 A / Ue 250 VAC Ie 6 A (resistive)
Rated Insulation Voltage 600 V
Rated Impulse Withstand Voltage 6 kV
Thermal Current (Ith) 10 A
Utilization Category AC-15, DC-13
Dielectric Strength 2,500 VAC 50/60 Hz for 1 min
Operating Temperature -25 to +55 °C (no icing)
Electrical Life 300,000 ops (6 A) / 1,000,000 ops (1 A)
Protection Standard IP40, protected (W) IP54
Input Voltage 1A: LED 110 VAC, 2A: LED 220 VAC, 1C: 6 VDC, 2C: 12 VDC, 3C: 24 VDC
Colours R/G/Y/B/BK/W/O
Certification KC, UL/cUL (UL508), CE
KOINO NF25 / NF30 Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (AL Series) - reference 2
NF25-L Size: Ø25 mm | Type: Pilot lamp
NF30-L Size: Ø30 mm | Type: Pilot lamp
NF25-PM Size: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF25-BM Size: Ø25 mm | Type: Illuminated momentary push button | Protection: IP40
NF25-PA Size: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF25-BA Size: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF25-S Size: Ø25 mm | Type: Selector switch | Protection: IP40
NF25-K Size: Ø25 mm | Type: Key selector switch | Protection: IP40
NF25-PER Size: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP40
NF25-BER Size: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP40
NF25W-PM Size: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF25W-BM Size: Ø25 mm | Type: Illuminated momentary push button | Protection: IP54
NF25W-PA Size: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF25W-BA Size: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF25W-S Size: Ø25 mm | Type: Selector switch | Protection: IP54
NF25W-K Size: Ø25 mm | Type: Key selector switch | Protection: IP54
NF25W-PER Size: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP54
NF25W-BER Size: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP54
NF30-PM Size: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF30-BM Size: Ø30 mm | Type: Illuminated momentary push button | Protection: IP40
NF30-PA Size: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF30-BA Size: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF30-S Size: Ø30 mm | Type: Selector switch | Protection: IP40
NF30-K Size: Ø30 mm | Type: Key selector switch | Protection: IP40
NF30W-PM Size: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF30W-BM Size: Ø30 mm | Type: Illuminated momentary push button | Protection: IP54
NF30W-PA Size: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF30W-BA Size: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF30W-S Size: Ø30 mm | Type: Selector switch | Protection: IP54
NF30W-K Size: Ø30 mm | Type: Key selector switch | Protection: IP54
NF25-BEM Size: Ø25 mm | Type: Illuminated emergency (mushroom) push button
NF25-PEM Size: Ø25 mm | Type: Non-illuminated emergency (mushroom) push button
NF30-BEM Size: Ø30 mm | Type: Illuminated emergency (mushroom) push button
NF30-PEM Size: Ø30 mm | Type: Non-illuminated emergency (mushroom) push button
NF30-BER Size: Ø30 mm | Type: Illuminated mushroom push-lock, turn-release
NF30-PER Size: Ø30 mm | Type: Non-illuminated mushroom push-lock, turn-release
Push Button SwitchesKOINO
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO NF25 / NF30 Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (AL Series)

Brand KOINO·Push Button Switches

Available part numbers (36)

NF25-L, NF30-L, NF25-PM, NF25-BM, NF25-PA, NF25-BA, NF25-S, NF25-K, NF25-PER, NF25-BER + 26 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KOINO NF25 / NF30 Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (AL Series) - reference 2
0 selected
RFQ List (0)
Product codeSpec
NF25-LSize: Ø25 mm | Type: Pilot lamp
NF30-LSize: Ø30 mm | Type: Pilot lamp
NF25-PMSize: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF25-BMSize: Ø25 mm | Type: Illuminated momentary push button | Protection: IP40
NF25-PASize: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF25-BASize: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF25-SSize: Ø25 mm | Type: Selector switch | Protection: IP40
NF25-KSize: Ø25 mm | Type: Key selector switch | Protection: IP40
NF25-PERSize: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP40
NF25-BERSize: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP40
NF25W-PMSize: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF25W-BMSize: Ø25 mm | Type: Illuminated momentary push button | Protection: IP54
NF25W-PASize: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF25W-BASize: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF25W-SSize: Ø25 mm | Type: Selector switch | Protection: IP54
NF25W-KSize: Ø25 mm | Type: Key selector switch | Protection: IP54
NF25W-PERSize: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP54
NF25W-BERSize: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP54
NF30-PMSize: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF30-BMSize: Ø30 mm | Type: Illuminated momentary push button | Protection: IP40
NF30-PASize: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF30-BASize: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF30-SSize: Ø30 mm | Type: Selector switch | Protection: IP40
NF30-KSize: Ø30 mm | Type: Key selector switch | Protection: IP40
NF30W-PMSize: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF30W-BMSize: Ø30 mm | Type: Illuminated momentary push button | Protection: IP54
NF30W-PASize: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF30W-BASize: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF30W-SSize: Ø30 mm | Type: Selector switch | Protection: IP54
NF30W-KSize: Ø30 mm | Type: Key selector switch | Protection: IP54
NF25-BEMSize: Ø25 mm | Type: Illuminated emergency (mushroom) push button
NF25-PEMSize: Ø25 mm | Type: Non-illuminated emergency (mushroom) push button
NF30-BEMSize: Ø30 mm | Type: Illuminated emergency (mushroom) push button
NF30-PEMSize: Ø30 mm | Type: Non-illuminated emergency (mushroom) push button
NF30-BERSize: Ø30 mm | Type: Illuminated mushroom push-lock, turn-release
NF30-PERSize: Ø30 mm | Type: Non-illuminated mushroom push-lock, turn-release
