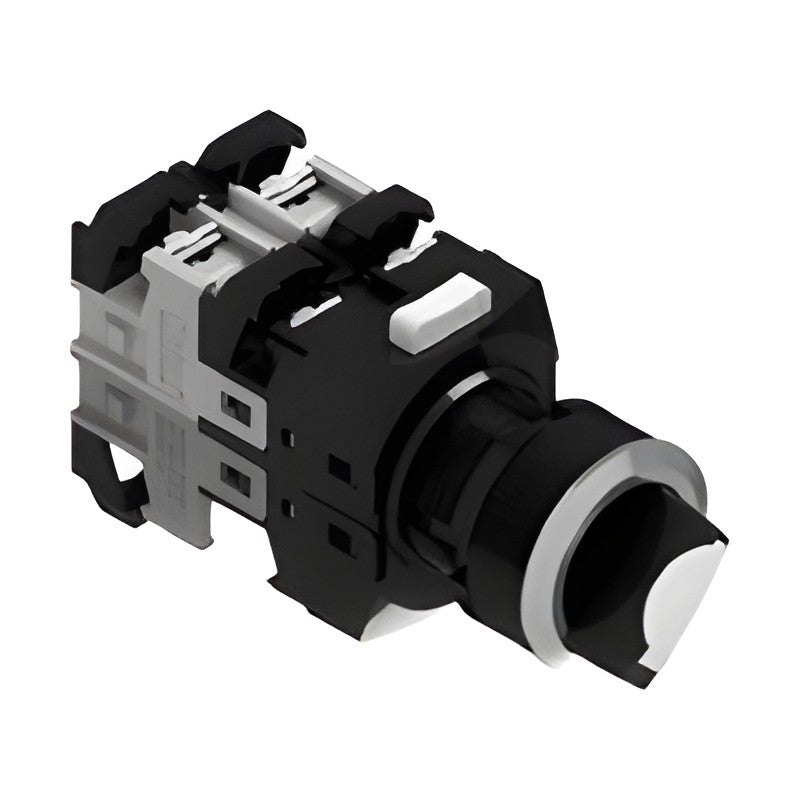

KOINO NF25G-AL / NF30G-AL Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (G-AL Series)

KOINO NF25G-AL / NF30G-AL Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (G-AL Series)

Ø25 mm and Ø30 mm flush-mount control switches with premium aluminium guard and economy contact blocks; the AL suffix denotes the aluminium guard.

Key features

  • KC, CE and UL/cUL certified
  • Premium aluminium guard with economy contact blocks
  • Protrudes 2 mm or less from the panel
  • Key selector switches have no illuminated version
  • Max. surrounding air temperature 40 °C

Specifications

Rated Voltage/Current Ue 125 VAC Ie 10 A / Ue 250 VAC Ie 6 A (resistive)
Rated Insulation Voltage 600 V
Rated Impulse Withstand Voltage 6 kV
Thermal Current (Ith) 10 A
Utilization Category AC-15, DC-13
Dielectric Strength 2,500 VAC 50/60 Hz for 1 min
Operating Temperature -25 to +55 °C (no icing)
Electrical Life 300,000 ops (6 A) / 1,000,000 ops (1 A)
Protection Standard IP40, protected (W) IP54
Input Voltage 1A: LED 110 VAC, 2A: LED 220 VAC, 1C: 6 VDC, 2C: 12 VDC, 3C: 24 VDC
Colours R/G/Y/B/BK/W/O
Certification KC, UL/cUL (UL508), CE
KOINO NF25G-AL / NF30G-AL Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (G-AL Series) - reference 2
NF25G-PM-AL Size: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF25G-BM-AL Size: Ø25 mm | Type: Illuminated momentary push button | Protection: IP40
NF25G-PA-AL Size: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF25G-BA-AL Size: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF25G-S-AL Size: Ø25 mm | Type: Selector switch | Protection: IP40
NF25G-K-AL Size: Ø25 mm | Type: Key selector switch | Protection: IP40
NF25G-PER-AL Size: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP40
NF25G-BER-AL Size: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP40
NF25GW-PM-AL Size: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF25GW-BM-AL Size: Ø25 mm | Type: Illuminated momentary push button | Protection: IP54
NF25GW-PA-AL Size: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF25GW-BA-AL Size: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF25GW-S-AL Size: Ø25 mm | Type: Selector switch | Protection: IP54
NF25GW-K-AL Size: Ø25 mm | Type: Key selector switch | Protection: IP54
NF25GW-PER-AL Size: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP54
NF25GW-BER-AL Size: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP54
NF30G-PM-AL Size: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF30G-BM-AL Size: Ø30 mm | Type: Illuminated momentary push button | Protection: IP40
NF30G-PA-AL Size: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF30G-BA-AL Size: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF30G-S-AL Size: Ø30 mm | Type: Selector switch | Protection: IP40
NF30G-K-AL Size: Ø30 mm | Type: Key selector switch | Protection: IP40
NF30GW-PM-AL Size: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF30GW-BM-AL Size: Ø30 mm | Type: Illuminated momentary push button | Protection: IP54
NF30GW-PA-AL Size: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF30GW-BA-AL Size: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF30GW-S-AL Size: Ø30 mm | Type: Selector switch | Protection: IP54
NF30GW-K-AL Size: Ø30 mm | Type: Key selector switch | Protection: IP54
Push Button SwitchesKOINO
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO NF25G-AL / NF30G-AL Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (G-AL Series)

Brand KOINO·Push Button Switches

Available part numbers (28)

NF25G-PM-AL, NF25G-BM-AL, NF25G-PA-AL, NF25G-BA-AL, NF25G-S-AL, NF25G-K-AL, NF25G-PER-AL, NF25G-BER-AL, NF25GW-PM-AL, NF25GW-BM-AL + 18 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KOINO NF25G-AL / NF30G-AL Ø25 and Ø30 Flush-Mount Switches with Aluminium Guard (G-AL Series) - reference 2
0 selected
RFQ List (0)
Product codeSpec
NF25G-PM-ALSize: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF25G-BM-ALSize: Ø25 mm | Type: Illuminated momentary push button | Protection: IP40
NF25G-PA-ALSize: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF25G-BA-ALSize: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF25G-S-ALSize: Ø25 mm | Type: Selector switch | Protection: IP40
NF25G-K-ALSize: Ø25 mm | Type: Key selector switch | Protection: IP40
NF25G-PER-ALSize: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP40
NF25G-BER-ALSize: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP40
NF25GW-PM-ALSize: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF25GW-BM-ALSize: Ø25 mm | Type: Illuminated momentary push button | Protection: IP54
NF25GW-PA-ALSize: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF25GW-BA-ALSize: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF25GW-S-ALSize: Ø25 mm | Type: Selector switch | Protection: IP54
NF25GW-K-ALSize: Ø25 mm | Type: Key selector switch | Protection: IP54
NF25GW-PER-ALSize: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP54
NF25GW-BER-ALSize: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP54
NF30G-PM-ALSize: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF30G-BM-ALSize: Ø30 mm | Type: Illuminated momentary push button | Protection: IP40
NF30G-PA-ALSize: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF30G-BA-ALSize: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF30G-S-ALSize: Ø30 mm | Type: Selector switch | Protection: IP40
NF30G-K-ALSize: Ø30 mm | Type: Key selector switch | Protection: IP40
NF30GW-PM-ALSize: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF30GW-BM-ALSize: Ø30 mm | Type: Illuminated momentary push button | Protection: IP54
NF30GW-PA-ALSize: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF30GW-BA-ALSize: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF30GW-S-ALSize: Ø30 mm | Type: Selector switch | Protection: IP54
NF30GW-K-ALSize: Ø30 mm | Type: Key selector switch | Protection: IP54
