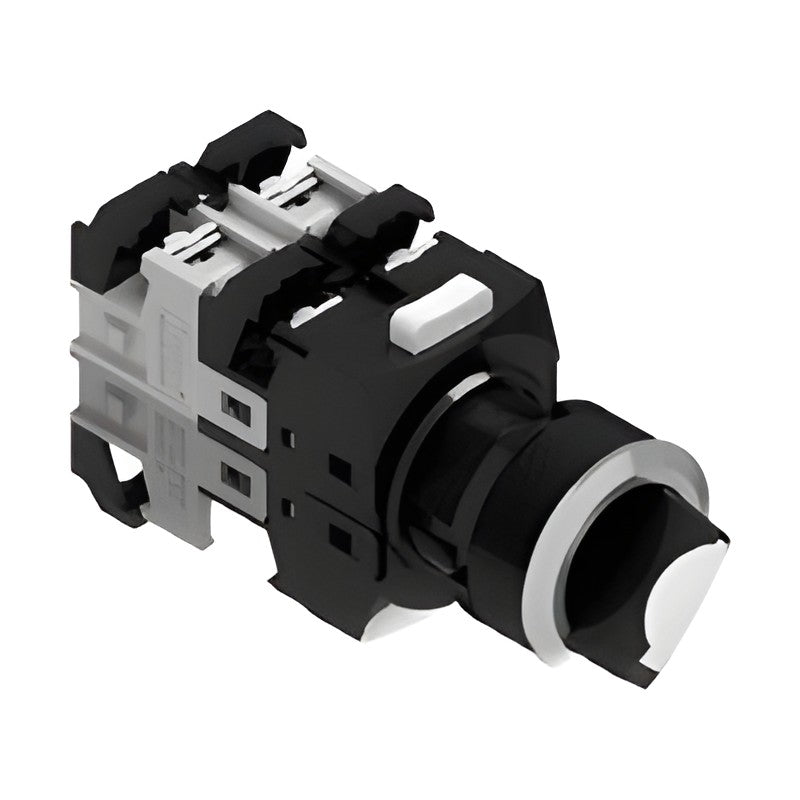

KOINO NF25G / NF30G Ø25 and Ø30 Flush-Mount Switches with Plastic Guard (G Series)

KOINO NF25G / NF30G Ø25 and Ø30 Flush-Mount Switches with Plastic Guard (G Series)

Economy Ø25 mm and Ø30 mm flush-mount control switches with silver-painted plastic guard, available as pilot lamps, push buttons, emergency buttons, selectors and key selectors.

Key features

  • KC, CE and UL/cUL certified
  • Silver-painted plastic guard with economy contact blocks
  • Protrudes 2 mm or less from the panel
  • Key selector switches have no illuminated version
  • Max. surrounding air temperature 40 °C

Specifications

Rated Voltage/Current Ue 125 VAC Ie 10 A / Ue 250 VAC Ie 6 A (resistive)
Rated Insulation Voltage 600 V
Rated Impulse Withstand Voltage 6 kV
Thermal Current (Ith) 10 A
Utilization Category AC-15, DC-13
Dielectric Strength 2,500 VAC 50/60 Hz for 1 min
Operating Temperature -25 to +55 °C (no icing)
Electrical Life 300,000 ops (6 A) / 1,000,000 ops (1 A)
Protection Standard IP40, protected (W) IP54
Input Voltage 1A: LED 110 VAC, 2A: LED 220 VAC, 1C: 6 VDC, 2C: 12 VDC, 3C: 24 VDC
Colours R/G/Y/B/BK/W/O
Certification KC, UL/cUL (UL508), CE
KOINO NF25G / NF30G Ø25 and Ø30 Flush-Mount Switches with Plastic Guard (G Series) - reference 2
NF25G-L Size: Ø25 mm | Type: Pilot lamp
NF30G-L Size: Ø30 mm | Type: Pilot lamp
NF25G-PM Size: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF25G-BM Size: Ø25 mm | Type: Illuminated momentary push button | Protection: IP40
NF25G-PA Size: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF25G-BA Size: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF25G-S Size: Ø25 mm | Type: Selector switch | Protection: IP40
NF25G-K Size: Ø25 mm | Type: Key selector switch | Protection: IP40
NF25G-PER Size: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP40
NF25G-BER Size: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP40
NF25GW-PM Size: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF25GW-BM Size: Ø25 mm | Type: Illuminated momentary push button | Protection: IP54
NF25GW-PA Size: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF25GW-BA Size: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF25GW-S Size: Ø25 mm | Type: Selector switch | Protection: IP54
NF25GW-K Size: Ø25 mm | Type: Key selector switch | Protection: IP54
NF25GW-PER Size: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP54
NF25GW-BER Size: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP54
NF30G-PM Size: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF30G-BM Size: Ø30 mm | Type: Illuminated momentary push button | Protection: IP40
NF30G-PA Size: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF30G-BA Size: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF30G-S Size: Ø30 mm | Type: Selector switch | Protection: IP40
NF30G-K Size: Ø30 mm | Type: Key selector switch | Protection: IP40
NF30GW-PM Size: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF30GW-BM Size: Ø30 mm | Type: Illuminated momentary push button | Protection: IP54
NF30GW-PA Size: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF30GW-BA Size: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF30GW-S Size: Ø30 mm | Type: Selector switch | Protection: IP54
NF30GW-K Size: Ø30 mm | Type: Key selector switch | Protection: IP54
NF25G-BEM Size: Ø25 mm | Type: Illuminated emergency (mushroom) push button
NF25G-PEM Size: Ø25 mm | Type: Non-illuminated emergency (mushroom) push button
NF30G-BEM Size: Ø30 mm | Type: Illuminated emergency (mushroom) push button
NF30G-PEM Size: Ø30 mm | Type: Non-illuminated emergency (mushroom) push button
NF30G-BER Size: Ø30 mm | Type: Illuminated mushroom push-lock, turn-release
NF30G-PER Size: Ø30 mm | Type: Non-illuminated mushroom push-lock, turn-release
Push Button SwitchesKOINO
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO NF25G / NF30G Ø25 and Ø30 Flush-Mount Switches with Plastic Guard (G Series)

Brand KOINO·Push Button Switches

Available part numbers (36)

NF25G-L, NF30G-L, NF25G-PM, NF25G-BM, NF25G-PA, NF25G-BA, NF25G-S, NF25G-K, NF25G-PER, NF25G-BER + 26 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KOINO NF25G / NF30G Ø25 and Ø30 Flush-Mount Switches with Plastic Guard (G Series) - reference 2
0 selected
RFQ List (0)
Product codeSpec
NF25G-LSize: Ø25 mm | Type: Pilot lamp
NF30G-LSize: Ø30 mm | Type: Pilot lamp
NF25G-PMSize: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF25G-BMSize: Ø25 mm | Type: Illuminated momentary push button | Protection: IP40
NF25G-PASize: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF25G-BASize: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF25G-SSize: Ø25 mm | Type: Selector switch | Protection: IP40
NF25G-KSize: Ø25 mm | Type: Key selector switch | Protection: IP40
NF25G-PERSize: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP40
NF25G-BERSize: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP40
NF25GW-PMSize: Ø25 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF25GW-BMSize: Ø25 mm | Type: Illuminated momentary push button | Protection: IP54
NF25GW-PASize: Ø25 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF25GW-BASize: Ø25 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF25GW-SSize: Ø25 mm | Type: Selector switch | Protection: IP54
NF25GW-KSize: Ø25 mm | Type: Key selector switch | Protection: IP54
NF25GW-PERSize: Ø25 mm | Type: Non-illuminated mushroom push-lock, turn-release | Protection: IP54
NF25GW-BERSize: Ø25 mm | Type: Illuminated mushroom push-lock, turn-release | Protection: IP54
NF30G-PMSize: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP40
NF30G-BMSize: Ø30 mm | Type: Illuminated momentary push button | Protection: IP40
NF30G-PASize: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP40
NF30G-BASize: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP40
NF30G-SSize: Ø30 mm | Type: Selector switch | Protection: IP40
NF30G-KSize: Ø30 mm | Type: Key selector switch | Protection: IP40
NF30GW-PMSize: Ø30 mm | Type: Non-illuminated momentary push button | Protection: IP54
NF30GW-BMSize: Ø30 mm | Type: Illuminated momentary push button | Protection: IP54
NF30GW-PASize: Ø30 mm | Type: Non-illuminated push-lock, push-release | Protection: IP54
NF30GW-BASize: Ø30 mm | Type: Illuminated push-lock, push-release | Protection: IP54
NF30GW-SSize: Ø30 mm | Type: Selector switch | Protection: IP54
NF30GW-KSize: Ø30 mm | Type: Key selector switch | Protection: IP54
NF25G-BEMSize: Ø25 mm | Type: Illuminated emergency (mushroom) push button
NF25G-PEMSize: Ø25 mm | Type: Non-illuminated emergency (mushroom) push button
NF30G-BEMSize: Ø30 mm | Type: Illuminated emergency (mushroom) push button
NF30G-PEMSize: Ø30 mm | Type: Non-illuminated emergency (mushroom) push button
NF30G-BERSize: Ø30 mm | Type: Illuminated mushroom push-lock, turn-release
NF30G-PERSize: Ø30 mm | Type: Non-illuminated mushroom push-lock, turn-release
