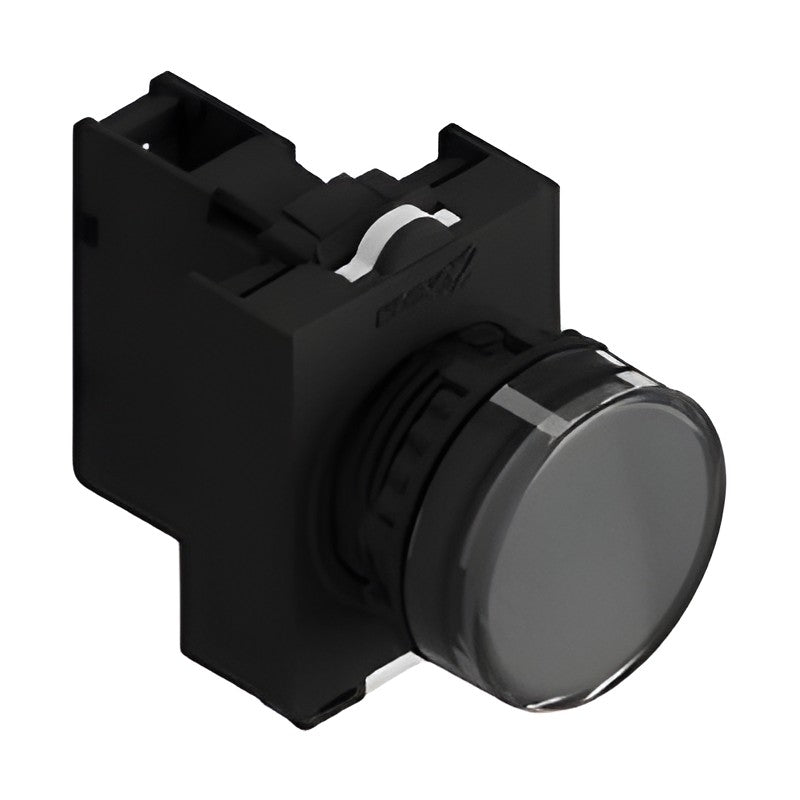

KOINO NS22-L Ø22 Pilot Lamp

Ø22 mm pilot lamp of the NS22 series, available as full-voltage or transformer type with LED or filament lamp.

Key features

IP66 front protection
Full-voltage and transformer versions
RoHS compliant (excluding filament and transformer types)

Specifications

Mounting Hole	Ø22 mm
Contact Rating	AC15: 125 V 6 A, 250 V 3 A / DC13: 250 V 0.27 A
Insulation Resistance	100 MΩ min. (500 VDC)
Dielectric Strength	2,500 VAC 50/60 Hz for 1 min
Contact Resistance	30 mΩ max. (initial)
Electrical Life	500,000 operations min. (250 VAC 2 A inductive)
Operating Temperature	-25 to +70 °C (LED), -25 to +55 °C (filament)
Rated Insulation Voltage	600 V
Rated Impulse Withstand Voltage	6 kV
Thermal Current (Ith)	10 A
Certification	KC, UL/cUL (UL508), CE, CCC, RoHS (excluding filament/transformer types)
Protection	IP66

NS22-L

Type: Pilot lamp (full voltage or transformer)
