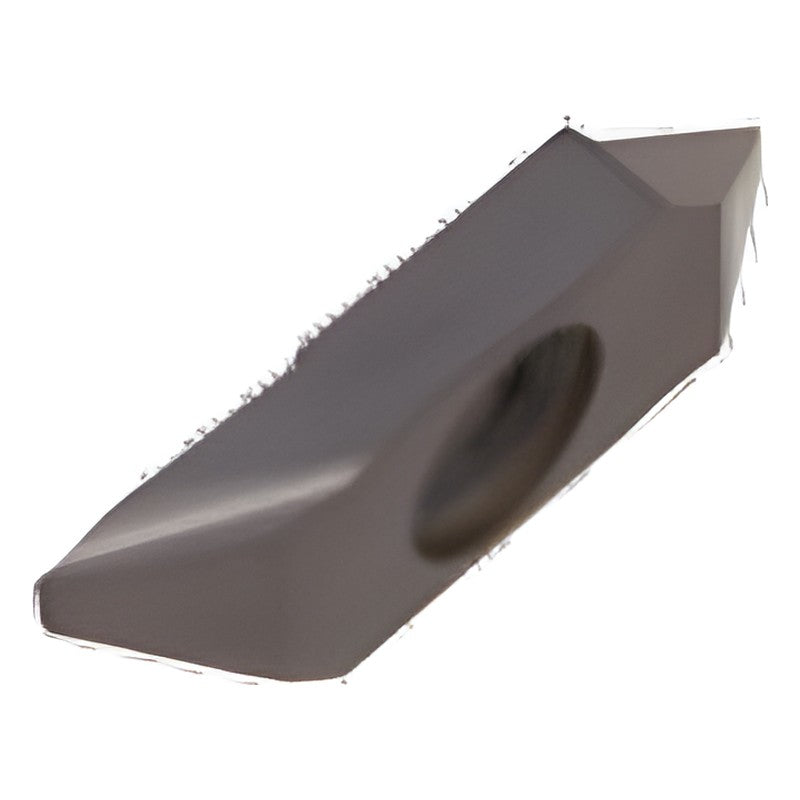

Korloy Auto Tools Blade Insert SBBR/L Back Turning

Korloy Auto Tools Blade Insert SBBR/L Back Turning

Blade back-turning insert for automatic lathes.

Key features

  • Small blade insert for external machining of precise small parts
  • Coated grade PC8110
  • Used with SBHR/L blade holders
  • Right-hand stocked; left-hand not stocked in this catalog

Specifications

Application Back Turning
Grade PC8110
Insert length l (mm) 25
Lead angle α (°) 59
Thickness t (mm) 3.18
Hand Right
Stock Yes
SBBR25005 PC8110 Insert length l (mm): 25 | Lead angle α (°): 59 | Thickness t (mm): 3.18 | Corner radius r (mm): 0.05 | Hand: Right | Stock: Yes | Grade: PC8110
SBBR25010 PC8110 Insert length l (mm): 25 | Lead angle α (°): 59 | Thickness t (mm): 3.18 | Corner radius r (mm): 0.1 | Hand: Right | Stock: Yes | Grade: PC8110
SBBR25020 PC8110 Insert length l (mm): 25 | Lead angle α (°): 59 | Thickness t (mm): 3.18 | Corner radius r (mm): 0.2 | Hand: Right | Stock: Yes | Grade: PC8110
Grooving InsertsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools Blade Insert SBBR/L Back Turning

Brand Korloy·Grooving Inserts

Available part numbers (3)

SBBR25005 PC8110, SBBR25010 PC8110, SBBR25020 PC8110

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBBR25005 PC8110Insert length l (mm): 25 | Lead angle α (°): 59 | Thickness t (mm): 3.18 | Corner radius r (mm): 0.05 | Hand: Right | Stock: Yes | Grade: PC8110
SBBR25010 PC8110Insert length l (mm): 25 | Lead angle α (°): 59 | Thickness t (mm): 3.18 | Corner radius r (mm): 0.1 | Hand: Right | Stock: Yes | Grade: PC8110
SBBR25020 PC8110Insert length l (mm): 25 | Lead angle α (°): 59 | Thickness t (mm): 3.18 | Corner radius r (mm): 0.2 | Hand: Right | Stock: Yes | Grade: PC8110
