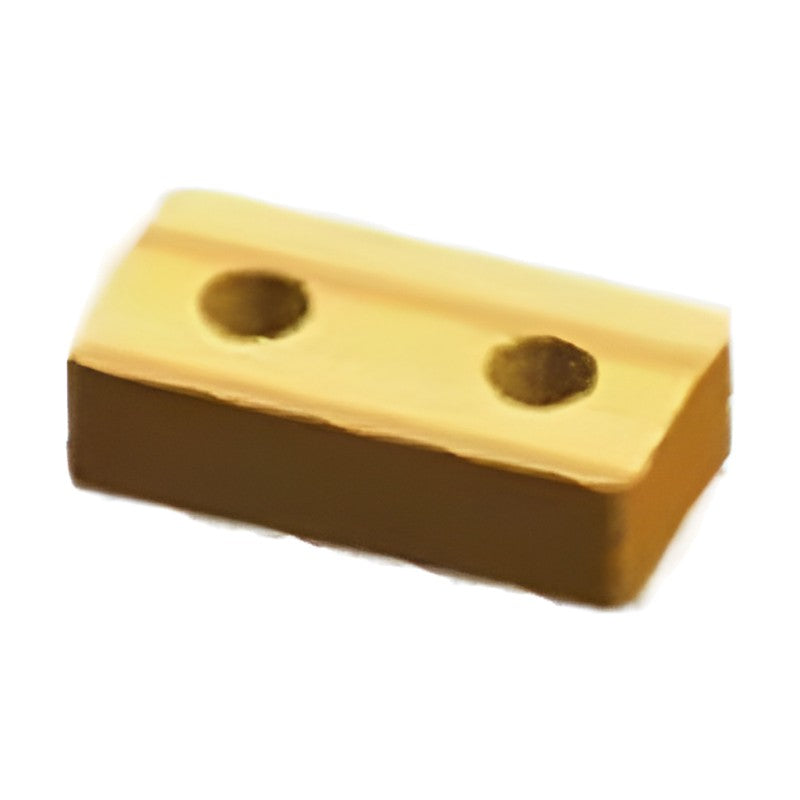

Korloy Pipe Chamfering Insert LNUX

Korloy Pipe Chamfering Insert LNUX

Tangential LNUX insert for heavy end facing and chamfering of pipe ends.

Key features

  • For pipe end facing and bevel chamfering (heavy turning) after welding
  • Large inserts with strong cutting edge for heavy interrupted cuts
  • Wide chip breakers preferred where chip evacuation allows
  • Grades resist thermal cracking

Specifications

Application Pipe end facing / chamfering (heavy turning)
Recommended grades NC5330 / NC5340 (main) / NC5350
d 25.4 mm
d1 9.2 mm
r 2.4 mm
LNUX400624 l: 40 mm | d: 25.4 mm | t: 6.35 mm | d1: 9.2 mm | r: 2.4 mm
LNUX400924 l: 40 mm | d: 25.4 mm | t: 9.52 mm | d1: 9.2 mm | r: 2.4 mm
LNUX501224-BF l: 50 mm | d: 25.4 mm | t: 12.7 mm | d1: 9.2 mm | r: 2.4 mm
LNUX601224-BF1 l: 60 mm | d: 25.4 mm | t: 12.7 mm | d1: 9.2 mm | r: 2.4 mm
LNUX701224EN l: 70 mm | d: 25.4 mm | t: 12.7 mm | d1: 9.2 mm | r: 2.4 mm
Turning InsertsKorloy
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Pipe Chamfering Insert LNUX

Brand Korloy·Turning Inserts

Available part numbers (5)

LNUX400624, LNUX400924, LNUX501224-BF, LNUX601224-BF1, LNUX701224EN

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LNUX400624l: 40 mm | d: 25.4 mm | t: 6.35 mm | d1: 9.2 mm | r: 2.4 mm
LNUX400924l: 40 mm | d: 25.4 mm | t: 9.52 mm | d1: 9.2 mm | r: 2.4 mm
LNUX501224-BFl: 50 mm | d: 25.4 mm | t: 12.7 mm | d1: 9.2 mm | r: 2.4 mm
LNUX601224-BF1l: 60 mm | d: 25.4 mm | t: 12.7 mm | d1: 9.2 mm | r: 2.4 mm
LNUX701224ENl: 70 mm | d: 25.4 mm | t: 12.7 mm | d1: 9.2 mm | r: 2.4 mm
