Korloy Pipe Chamfering Insert TNMM

Korloy Pipe Chamfering Insert TNMM

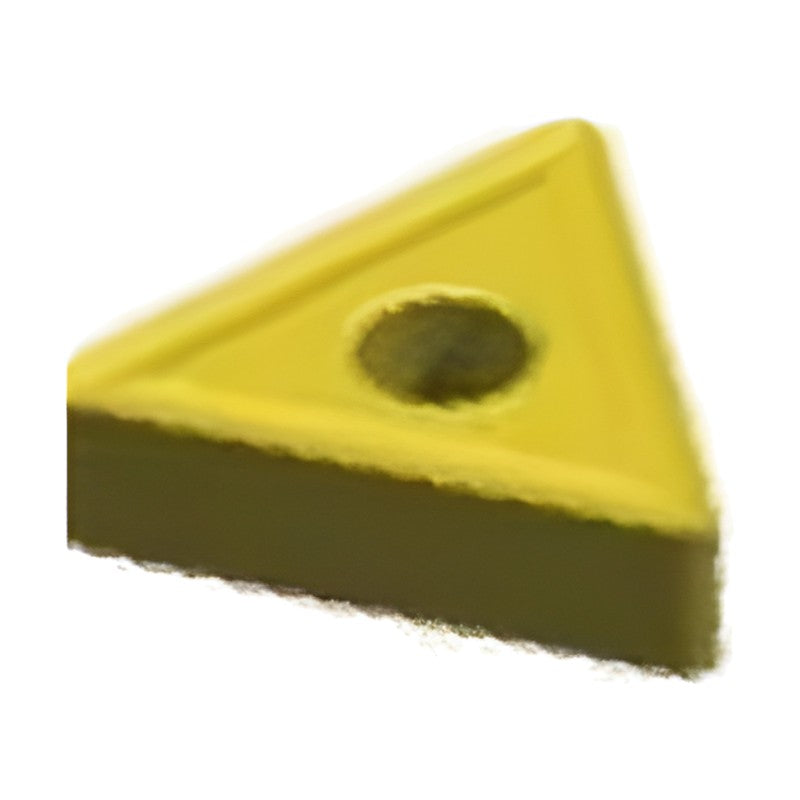

Large triangular TNMM insert for heavy end facing and chamfering of pipe ends.

Key features

  • For pipe end facing and bevel chamfering (heavy turning) after welding
  • Large inserts with strong cutting edge for heavy interrupted cuts
  • Wide chip breakers preferred where chip evacuation allows
  • Grades resist thermal cracking

Specifications

Application Pipe end facing / chamfering (heavy turning)
Recommended grades NC5330 / NC5340 (main) / NC5350
l 40 mm
d 25.4 mm
t 9.52 mm
d1 9.1 mm
r 1.2 mm
TNMM440912Z l: 40 mm | d: 25.4 mm | t: 9.52 mm | d1: 9.1 mm | r: 1.2 mm
TNMM440912Z-B l: 40 mm | d: 25.4 mm | t: 9.52 mm | d1: 9.1 mm | r: 1.2 mm
Turning InsertsKorloy
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Pipe Chamfering Insert TNMM

Brand Korloy·Turning Inserts

Available part numbers (2)

TNMM440912Z, TNMM440912Z-B

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TNMM440912Zl: 40 mm | d: 25.4 mm | t: 9.52 mm | d1: 9.1 mm | r: 1.2 mm
TNMM440912Z-Bl: 40 mm | d: 25.4 mm | t: 9.52 mm | d1: 9.1 mm | r: 1.2 mm
