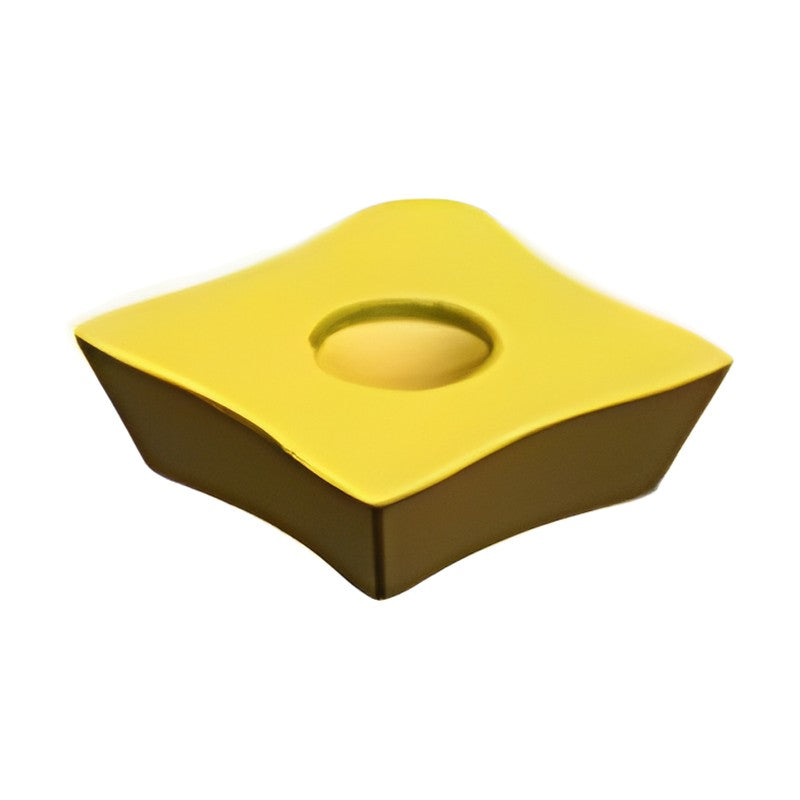

Korloy External Bead Removal Insert SDMX

Korloy External Bead Removal Insert SDMX

Square 15° SDMX insert with concave profile radius for external (O.D.) weld bead trimming of pipe.

Key features

  • Removes weld bead after longitudinal welding of pipe
  • Wide range of profile radii to match pipe diameter
  • Grades resist plastic deformation and edge breakage

Specifications

Application External (O.D.) bead removal
Recommended grades NC5330 (main) / NC5340 / PC5300
l 25.4 mm
d 25.4 mm
t 7.94 mm
r 0.8 mm
d1 5.8 mm
SDMX85-R16 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 16 mm | d1: 5.8 mm
SDMX85-R25 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 25 mm | d1: 5.8 mm
SDMX85-R40 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 40 mm | d1: 5.8 mm
SDMX85-R50 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 50 mm | d1: 5.8 mm
SDMX85-R60 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 60 mm | d1: 5.8 mm
SDMX85-R70 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 70 mm | d1: 5.8 mm
SDMX85-R80 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 80 mm | d1: 5.8 mm
SDMX85-R90 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 90 mm | d1: 5.8 mm
SDMX85-R100 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 100 mm | d1: 5.8 mm
SDMX85-R170 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 170 mm | d1: 5.8 mm
SDMX85-R200 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 200 mm | d1: 5.8 mm
SDMX85-R300 l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 300 mm | d1: 5.8 mm
Bead Removal InsertsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy External Bead Removal Insert SDMX

Brand Korloy·Bead Removal Inserts

Available part numbers (12)

SDMX85-R16, SDMX85-R25, SDMX85-R40, SDMX85-R50, SDMX85-R60, SDMX85-R70, SDMX85-R80, SDMX85-R90, SDMX85-R100, SDMX85-R170 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SDMX85-R16l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 16 mm | d1: 5.8 mm
SDMX85-R25l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 25 mm | d1: 5.8 mm
SDMX85-R40l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 40 mm | d1: 5.8 mm
SDMX85-R50l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 50 mm | d1: 5.8 mm
SDMX85-R60l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 60 mm | d1: 5.8 mm
SDMX85-R70l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 70 mm | d1: 5.8 mm
SDMX85-R80l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 80 mm | d1: 5.8 mm
SDMX85-R90l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 90 mm | d1: 5.8 mm
SDMX85-R100l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 100 mm | d1: 5.8 mm
SDMX85-R170l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 170 mm | d1: 5.8 mm
SDMX85-R200l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 200 mm | d1: 5.8 mm
SDMX85-R300l: 25.4 mm | d: 25.4 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 300 mm | d1: 5.8 mm
