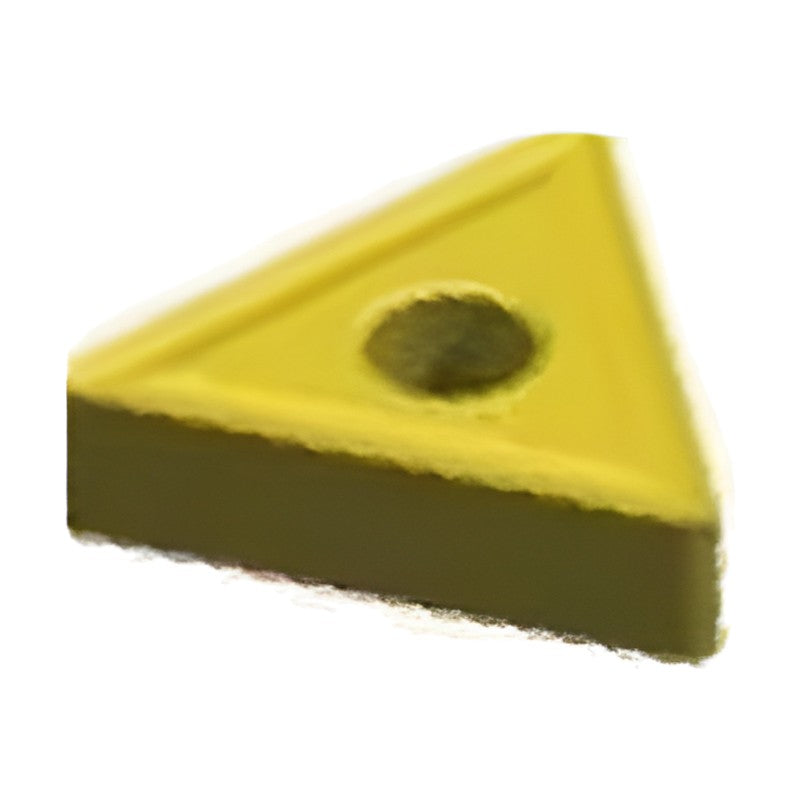

Korloy Pipe Chamfering Insert TNMG

Triangular TNMG insert with chip breaker for end facing and chamfering of pipe ends.

Key features

For pipe end facing and bevel chamfering (heavy turning) after welding
Large inserts with strong cutting edge for heavy interrupted cuts
Wide chip breakers preferred where chip evacuation allows
Grades resist thermal cracking

Specifications

Application	Pipe end facing / chamfering (heavy turning)
Recommended grades	NC5330 / NC5340 (main) / NC5350

TNMG270612KP-B25		l: 23 mm \| d: 15.875 mm \| t: 6.35 mm \| d1: 6.35 mm \| r: 1.2 mm
TNMG330704-B25		l: 31 mm \| d: 19.05 mm \| t: 7.94 mm \| d1: 7.9 mm \| r: 0.4 mm
TNMG330716KP-B25		l: 27 mm \| d: 19.05 mm \| t: 7.94 mm \| d1: 7.9 mm \| r: 1.6 mm

Turning InsertsKorloy

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Pipe Chamfering Insert TNMG

Brand Korloy·Turning Inserts

Available part numbers (3)

TNMG270612KP-B25, TNMG330704-B25, TNMG330716KP-B25

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TNMG270612KP-B25	l: 23 mm \| d: 15.875 mm \| t: 6.35 mm \| d1: 6.35 mm \| r: 1.2 mm
	TNMG330704-B25	l: 31 mm \| d: 19.05 mm \| t: 7.94 mm \| d1: 7.9 mm \| r: 0.4 mm
	TNMG330716KP-B25	l: 27 mm \| d: 19.05 mm \| t: 7.94 mm \| d1: 7.9 mm \| r: 1.6 mm
