Korloy External Bead Removal Insert SNMN

Korloy External Bead Removal Insert SNMN

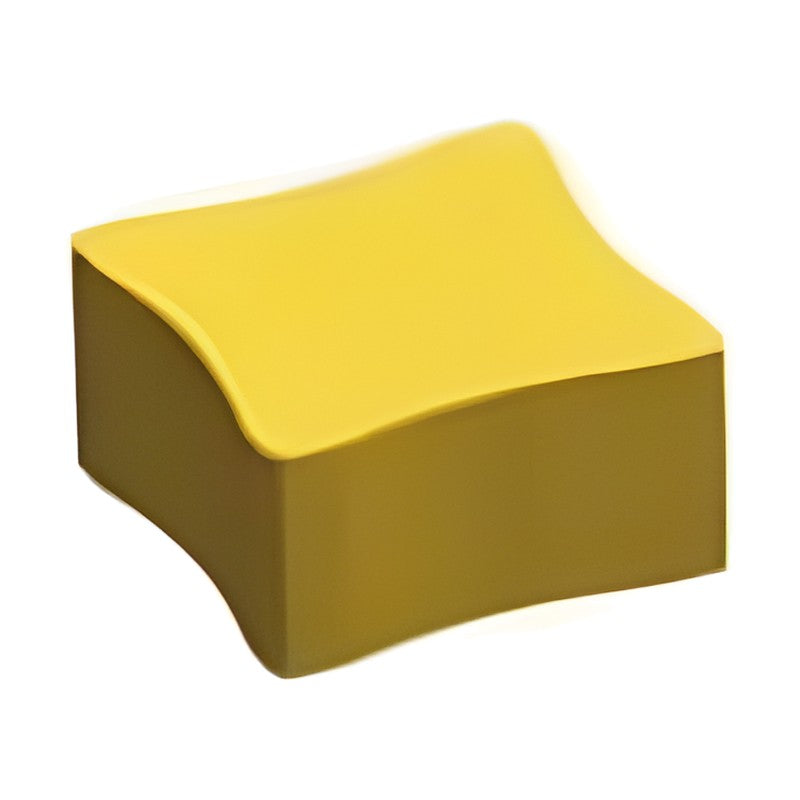

Square SNMN insert with concave profile radius for external (O.D.) weld bead trimming of pipe.

Key features

  • Removes weld bead after longitudinal welding of pipe
  • Wide range of profile radii to match pipe diameter
  • Grades resist plastic deformation and edge breakage

Specifications

Application External (O.D.) bead removal
Recommended grades NC5330 (main) / NC5340 / PC5300
l 12.7 mm
d 12.7 mm
t 7.94 mm
r 0.8 mm
SNMN1207-8R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 8 mm | Alternate designation: SNU452-8R
SNMN1207-10R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 10 mm | Alternate designation: SNU452-10R
SNMN1207-12R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 12 mm
SNMN1207-13R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 13 mm | Alternate designation: SNU452-13R
SNMN1207-14R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 14 mm | Alternate designation: SNU452-14R
SNMN1207-15R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 15 mm | Alternate designation: SNU452-15R
SNMN1207-23R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 23 mm | Alternate designation: SNU452-23R
SNMN1207-24R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 24 mm | Alternate designation: SNU452-24R
SNMN1207-26R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 26 mm
SNMN1207-28R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 28 mm | Alternate designation: SNU452-28R
SNMN1207-40R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 40 mm | Alternate designation: SNU452-40R
SNMN1207-45R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 45 mm | Alternate designation: SNU452-45R
SNMN1207-55R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 55 mm
SNMN1207-80R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 80 mm | Alternate designation: SNU452-80R
SNMN1207-90R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 90 mm | Alternate designation: SNU452-90R
SNMN1207-100R l: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 100 mm | Alternate designation: SNU452-100R
Bead Removal InsertsKorloy
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy External Bead Removal Insert SNMN

Brand Korloy·Bead Removal Inserts

Available part numbers (16)

SNMN1207-8R, SNMN1207-10R, SNMN1207-12R, SNMN1207-13R, SNMN1207-14R, SNMN1207-15R, SNMN1207-23R, SNMN1207-24R, SNMN1207-26R, SNMN1207-28R + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNMN1207-8Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 8 mm | Alternate designation: SNU452-8R
SNMN1207-10Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 10 mm | Alternate designation: SNU452-10R
SNMN1207-12Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 12 mm
SNMN1207-13Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 13 mm | Alternate designation: SNU452-13R
SNMN1207-14Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 14 mm | Alternate designation: SNU452-14R
SNMN1207-15Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 15 mm | Alternate designation: SNU452-15R
SNMN1207-23Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 23 mm | Alternate designation: SNU452-23R
SNMN1207-24Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 24 mm | Alternate designation: SNU452-24R
SNMN1207-26Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 26 mm
SNMN1207-28Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 28 mm | Alternate designation: SNU452-28R
SNMN1207-40Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 40 mm | Alternate designation: SNU452-40R
SNMN1207-45Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 45 mm | Alternate designation: SNU452-45R
SNMN1207-55Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 55 mm
SNMN1207-80Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 80 mm | Alternate designation: SNU452-80R
SNMN1207-90Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 90 mm | Alternate designation: SNU452-90R
SNMN1207-100Rl: 12.7 mm | d: 12.7 mm | t: 7.94 mm | r: 0.8 mm | Profile R: 100 mm | Alternate designation: SNU452-100R
