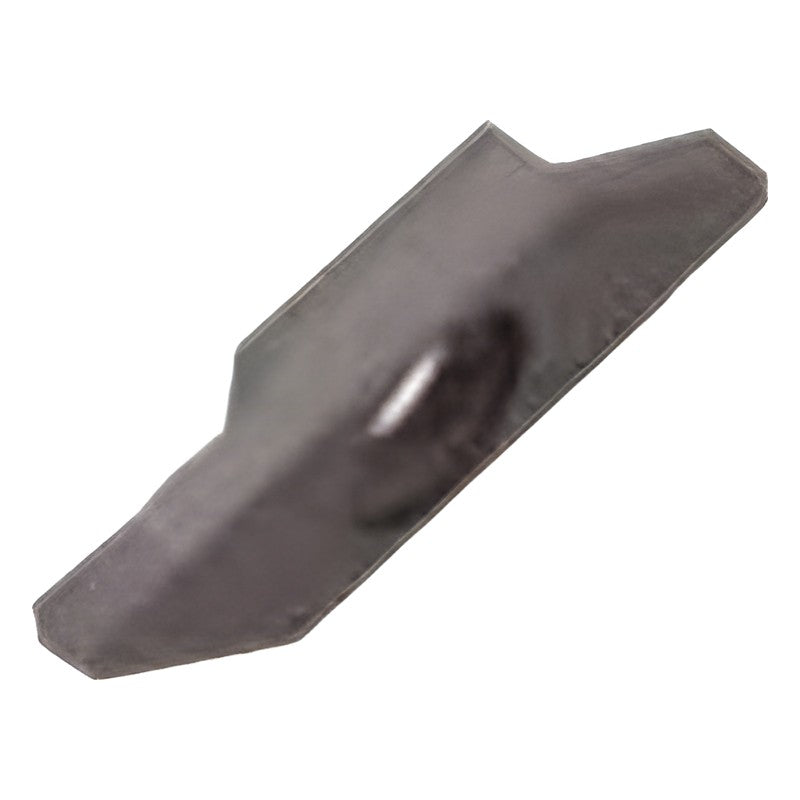

Korloy Auto Tools Blade Insert SBCR/L Parting-Off

Korloy Auto Tools Blade Insert SBCR/L Parting-Off

Blade parting-off insert for automatic lathes (N, R, L and T edge types).

Key features

  • Small blade insert for external machining of precise small parts
  • Coated grade PC8110
  • Used with SBHR/L blade holders
  • Right-hand stocked; left-hand not stocked in this catalog

Specifications

Application Parting-Off
Grade PC8110
Insert length l (mm) 25
Corner radius r (mm) 0.05
Hand Right
Stock Yes
SBCR250708-N PC8110 Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 0.1 | ar (mm): 4.3 | Max. parting dia. DMAX (mm): 8 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251012-N PC8110 Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 1 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251512-N PC8110 Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 1.5 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR252016-N PC8110 Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 2 | ar (mm): 8.3 | Max. parting dia. DMAX (mm): 16 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR250708-R PC8110 Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 0.1 | ar (mm): 4.3 | Max. parting dia. DMAX (mm): 8 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251012-R PC8110 Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 1 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251512-R PC8110 Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 1.5 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR252016-R PC8110 Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 2 | ar (mm): 8.3 | Max. parting dia. DMAX (mm): 16 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR250708-L PC8110 Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 0.1 | ar (mm): 4.3 | Max. parting dia. DMAX (mm): 8 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251012-L PC8110 Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 1 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251512-L PC8110 Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 1.5 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR252016-L PC8110 Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 2 | ar (mm): 8.3 | Max. parting dia. DMAX (mm): 16 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251012-T PC8110 Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 1 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251512-T PC8110 Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 1.5 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR252016-T PC8110 Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 2 | ar (mm): 8.3 | Max. parting dia. DMAX (mm): 16 | Hand: Right | Stock: Yes | Grade: PC8110
Grooving InsertsKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools Blade Insert SBCR/L Parting-Off

Brand Korloy·Grooving Inserts

Available part numbers (15)

SBCR250708-N PC8110, SBCR251012-N PC8110, SBCR251512-N PC8110, SBCR252016-N PC8110, SBCR250708-R PC8110, SBCR251012-R PC8110, SBCR251512-R PC8110, SBCR252016-R PC8110, SBCR250708-L PC8110, SBCR251012-L PC8110 + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBCR250708-N PC8110Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 0.1 | ar (mm): 4.3 | Max. parting dia. DMAX (mm): 8 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251012-N PC8110Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 1 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251512-N PC8110Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 1.5 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR252016-N PC8110Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 2 | ar (mm): 8.3 | Max. parting dia. DMAX (mm): 16 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR250708-R PC8110Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 0.1 | ar (mm): 4.3 | Max. parting dia. DMAX (mm): 8 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251012-R PC8110Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 1 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251512-R PC8110Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 1.5 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR252016-R PC8110Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 2 | ar (mm): 8.3 | Max. parting dia. DMAX (mm): 16 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR250708-L PC8110Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 0.1 | ar (mm): 4.3 | Max. parting dia. DMAX (mm): 8 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251012-L PC8110Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 1 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251512-L PC8110Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 1.5 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR252016-L PC8110Insert length l (mm): 25 | Lead angle α (°): 15 | Corner radius r (mm): 0.05 | Width La (mm): 2 | ar (mm): 8.3 | Max. parting dia. DMAX (mm): 16 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251012-T PC8110Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 1 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR251512-T PC8110Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 1.5 | ar (mm): 6.3 | Max. parting dia. DMAX (mm): 12 | Hand: Right | Stock: Yes | Grade: PC8110
SBCR252016-T PC8110Insert length l (mm): 25 | Lead angle α (°): 0 | Corner radius r (mm): 0.05 | Width La (mm): 2 | ar (mm): 8.3 | Max. parting dia. DMAX (mm): 16 | Hand: Right | Stock: Yes | Grade: PC8110
