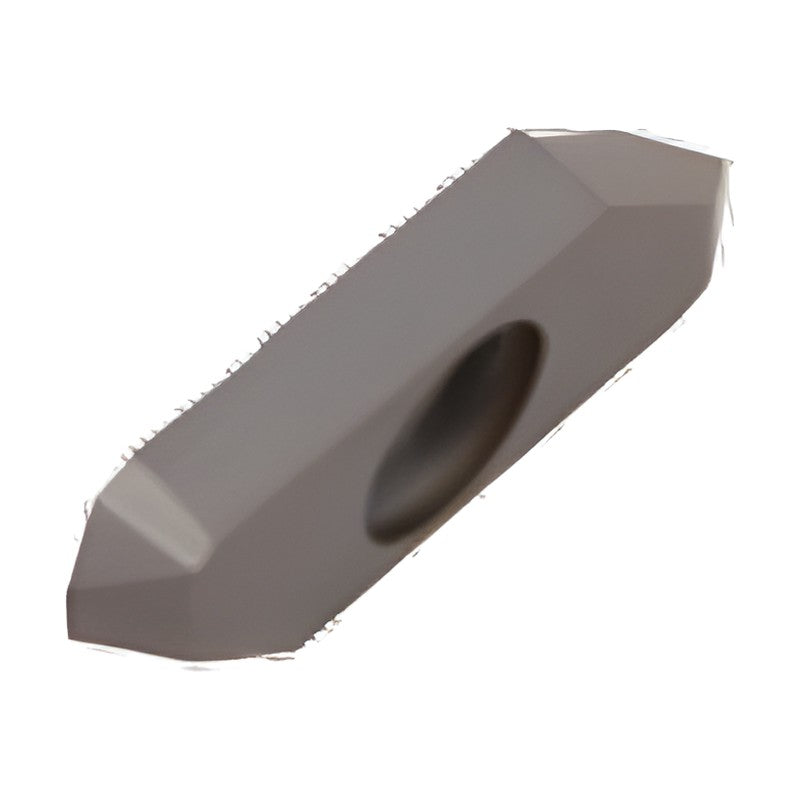

Korloy Auto Tools Blade Insert SBTR/L Threading

Korloy Auto Tools Blade Insert SBTR/L Threading

Blade 60° threading insert for automatic lathes.

Key features

  • Small blade insert for external machining of precise small parts
  • Coated grade PC8110
  • Used with SBHR/L blade holders
  • Right-hand stocked; left-hand not stocked in this catalog

Specifications

Application Threading
Grade PC8110
Insert length l (mm) 25
Hand Right
Stock Yes
SBTR2560-N-005 PC8110 Insert length l (mm): 25 | Corner radius r (mm): 0.05 | f (mm): 1.59 | Pitch min. (mm): 0.2 | Pitch max. (mm): 2 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-N-010 PC8110 Insert length l (mm): 25 | Corner radius r (mm): 0.1 | f (mm): 1.59 | Pitch min. (mm): 1 | Pitch max. (mm): 2 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-R-005 PC8110 Insert length l (mm): 25 | Corner radius r (mm): 0.05 | f (mm): 0.6 | Pitch min. (mm): 0.2 | Pitch max. (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-R-010 PC8110 Insert length l (mm): 25 | Corner radius r (mm): 0.1 | f (mm): 0.6 | Pitch min. (mm): 1 | Pitch max. (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-L-005 PC8110 Insert length l (mm): 25 | Corner radius r (mm): 0.05 | f (mm): 0.6 | Pitch min. (mm): 0.2 | Pitch max. (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-L-010 PC8110 Insert length l (mm): 25 | Corner radius r (mm): 0.1 | f (mm): 0.6 | Pitch min. (mm): 1 | Pitch max. (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC8110
Threading InsertsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools Blade Insert SBTR/L Threading

Brand Korloy·Threading Inserts

Available part numbers (6)

SBTR2560-N-005 PC8110, SBTR2560-N-010 PC8110, SBTR2560-R-005 PC8110, SBTR2560-R-010 PC8110, SBTR2560-L-005 PC8110, SBTR2560-L-010 PC8110

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBTR2560-N-005 PC8110Insert length l (mm): 25 | Corner radius r (mm): 0.05 | f (mm): 1.59 | Pitch min. (mm): 0.2 | Pitch max. (mm): 2 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-N-010 PC8110Insert length l (mm): 25 | Corner radius r (mm): 0.1 | f (mm): 1.59 | Pitch min. (mm): 1 | Pitch max. (mm): 2 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-R-005 PC8110Insert length l (mm): 25 | Corner radius r (mm): 0.05 | f (mm): 0.6 | Pitch min. (mm): 0.2 | Pitch max. (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-R-010 PC8110Insert length l (mm): 25 | Corner radius r (mm): 0.1 | f (mm): 0.6 | Pitch min. (mm): 1 | Pitch max. (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-L-005 PC8110Insert length l (mm): 25 | Corner radius r (mm): 0.05 | f (mm): 0.6 | Pitch min. (mm): 0.2 | Pitch max. (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC8110
SBTR2560-L-010 PC8110Insert length l (mm): 25 | Corner radius r (mm): 0.1 | f (mm): 0.6 | Pitch min. (mm): 1 | Pitch max. (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC8110
