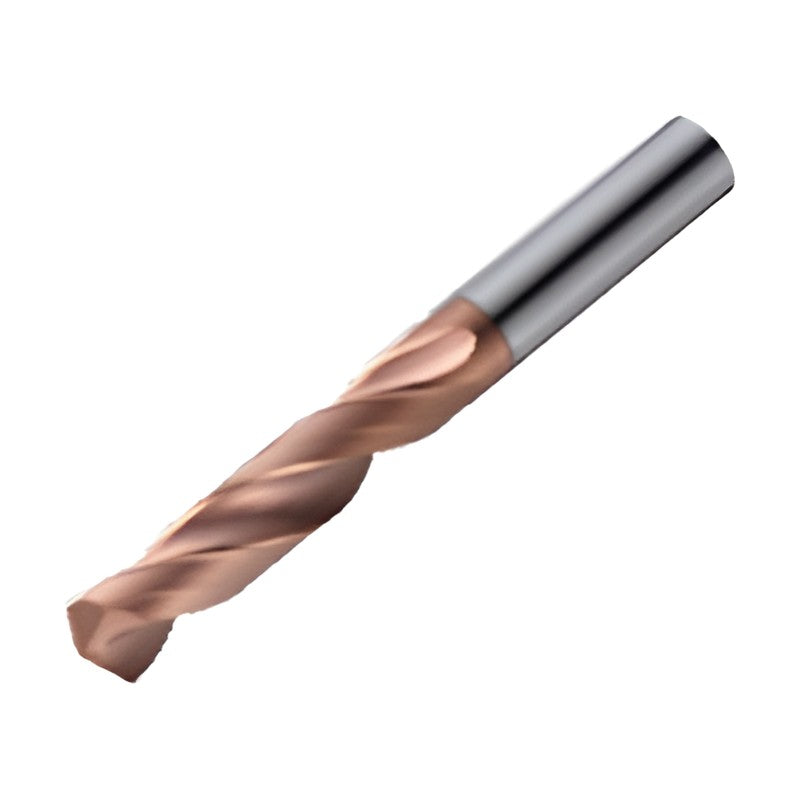

Korloy Auto Tools ESD Plus Solid Carbide Drill ESDP-5P

Korloy Auto Tools ESD Plus Solid Carbide Drill ESDP-5P

Economical solid carbide drill (5xD) for small-hole drilling on automatic lathes.

Key features

  • Economical solid drill
  • New PC325U grade with lubricative coating for welding resistance at medium-high speed
  • Diameter 1.00 mm upward in 0.05 mm steps
  • External coolant
  • For P, M, K, N materials

Specifications

Series ESDP-5P
Coolant External
Grade PC325U (coated)
Stock Yes
ESDP010-5P PC325U Drill diameter ØD (mm): 1.00 | Shank diameter Ød (mm): 3 | L (mm): 8 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0105-5P PC325U Drill diameter ØD (mm): 1.05 | Shank diameter Ød (mm): 3 | L (mm): 8 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP011-5P PC325U Drill diameter ØD (mm): 1.10 | Shank diameter Ød (mm): 3 | L (mm): 9 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0115-5P PC325U Drill diameter ØD (mm): 1.15 | Shank diameter Ød (mm): 3 | L (mm): 9 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP012-5P PC325U Drill diameter ØD (mm): 1.20 | Shank diameter Ød (mm): 3 | L (mm): 10 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0125-5P PC325U Drill diameter ØD (mm): 1.25 | Shank diameter Ød (mm): 3 | L (mm): 10 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP013-5P PC325U Drill diameter ØD (mm): 1.30 | Shank diameter Ød (mm): 3 | L (mm): 10 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0135-5P PC325U Drill diameter ØD (mm): 1.35 | Shank diameter Ød (mm): 3 | L (mm): 10 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP014-5P PC325U Drill diameter ØD (mm): 1.40 | Shank diameter Ød (mm): 3 | L (mm): 11 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0145-5P PC325U Drill diameter ØD (mm): 1.45 | Shank diameter Ød (mm): 3 | L (mm): 11 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP015-5P PC325U Drill diameter ØD (mm): 1.50 | Shank diameter Ød (mm): 3 | L (mm): 11 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0155-5P PC325U Drill diameter ØD (mm): 1.55 | Shank diameter Ød (mm): 3 | L (mm): 11 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP016-5P PC325U Drill diameter ØD (mm): 1.60 | Shank diameter Ød (mm): 3 | L (mm): 12 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0165-5P PC325U Drill diameter ØD (mm): 1.65 | Shank diameter Ød (mm): 3 | L (mm): 12 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP017-5P PC325U Drill diameter ØD (mm): 1.70 | Shank diameter Ød (mm): 3 | L (mm): 12 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0175-5P PC325U Drill diameter ØD (mm): 1.75 | Shank diameter Ød (mm): 3 | L (mm): 12 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP018-5P PC325U Drill diameter ØD (mm): 1.80 | Shank diameter Ød (mm): 3 | L (mm): 13 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0185-5P PC325U Drill diameter ØD (mm): 1.85 | Shank diameter Ød (mm): 3 | L (mm): 13 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP019-5P PC325U Drill diameter ØD (mm): 1.90 | Shank diameter Ød (mm): 3 | L (mm): 14 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP0195-5P PC325U Drill diameter ØD (mm): 1.95 | Shank diameter Ød (mm): 3 | L (mm): 14 | Overall length, unlabeled column (mm): 45 | Grade: PC325U | Stock: Yes
ESDP020-5P PC325U Drill diameter ØD (mm): 2.00 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0205-5P PC325U Drill diameter ØD (mm): 2.05 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP021-5P PC325U Drill diameter ØD (mm): 2.10 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0215-5P PC325U Drill diameter ØD (mm): 2.15 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP022-5P PC325U Drill diameter ØD (mm): 2.20 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0225-5P PC325U Drill diameter ØD (mm): 2.25 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP023-5P PC325U Drill diameter ØD (mm): 2.30 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0235-5P PC325U Drill diameter ØD (mm): 2.35 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP024-5P PC325U Drill diameter ØD (mm): 2.40 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0245-5P PC325U Drill diameter ØD (mm): 2.45 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP025-5P PC325U Drill diameter ØD (mm): 2.50 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0255-5P PC325U Drill diameter ØD (mm): 2.55 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP026-5P PC325U Drill diameter ØD (mm): 2.60 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0265-5P PC325U Drill diameter ØD (mm): 2.65 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP027-5P PC325U Drill diameter ØD (mm): 2.70 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0275-5P PC325U Drill diameter ØD (mm): 2.75 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP028-5P PC325U Drill diameter ØD (mm): 2.80 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0285-5P PC325U Drill diameter ØD (mm): 2.85 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP029-5P PC325U Drill diameter ØD (mm): 2.90 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP0295-5P PC325U Drill diameter ØD (mm): 2.95 | Shank diameter Ød (mm): 3 | L (mm): 18 | Overall length, unlabeled column (mm): 50 | Grade: PC325U | Stock: Yes
ESDP030-5P PC325U Drill diameter ØD (mm): 3.00 | Shank diameter Ød (mm): 3 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0305-5P PC325U Drill diameter ØD (mm): 3.05 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP031-5P PC325U Drill diameter ØD (mm): 3.10 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0315-5P PC325U Drill diameter ØD (mm): 3.15 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP032-5P PC325U Drill diameter ØD (mm): 3.20 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0325-5P PC325U Drill diameter ØD (mm): 3.25 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP033-5P PC325U Drill diameter ØD (mm): 3.30 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0335-5P PC325U Drill diameter ØD (mm): 3.35 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP034-5P PC325U Drill diameter ØD (mm): 3.40 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0345-5P PC325U Drill diameter ØD (mm): 3.45 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP035-5P PC325U Drill diameter ØD (mm): 3.50 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0355-5P PC325U Drill diameter ØD (mm): 3.55 | Shank diameter Ød (mm): 4 | L (mm): 20 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP036-5P PC325U Drill diameter ØD (mm): 3.60 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0365-5P PC325U Drill diameter ØD (mm): 3.65 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP037-5P PC325U Drill diameter ØD (mm): 3.70 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0375-5P PC325U Drill diameter ØD (mm): 3.75 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP038-5P PC325U Drill diameter ØD (mm): 3.80 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0385-5P PC325U Drill diameter ØD (mm): 3.85 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP039-5P PC325U Drill diameter ØD (mm): 3.90 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0395-5P PC325U Drill diameter ØD (mm): 3.95 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP040-5P PC325U Drill diameter ØD (mm): 4.00 | Shank diameter Ød (mm): 4 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0405-5P PC325U Drill diameter ØD (mm): 4.05 | Shank diameter Ød (mm): 5 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP041-5P PC325U Drill diameter ØD (mm): 4.10 | Shank diameter Ød (mm): 5 | L (mm): 25 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP0415-5P PC325U Drill diameter ØD (mm): 4.15 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 55 | Grade: PC325U | Stock: Yes
ESDP042-5P PC325U Drill diameter ØD (mm): 4.20 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP0425-5P PC325U Drill diameter ØD (mm): 4.25 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP043-5P PC325U Drill diameter ØD (mm): 4.30 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP0435-5P PC325U Drill diameter ØD (mm): 4.35 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP044-5P PC325U Drill diameter ØD (mm): 4.40 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP0445-5P PC325U Drill diameter ØD (mm): 4.45 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP045-5P PC325U Drill diameter ØD (mm): 4.50 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP0455-5P PC325U Drill diameter ØD (mm): 4.55 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP046-5P PC325U Drill diameter ØD (mm): 4.60 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP0465-5P PC325U Drill diameter ØD (mm): 4.65 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP047-5P PC325U Drill diameter ØD (mm): 4.70 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP0475-5P PC325U Drill diameter ØD (mm): 4.75 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP048-5P PC325U Drill diameter ØD (mm): 4.80 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP0485-5P PC325U Drill diameter ØD (mm): 4.85 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP049-5P PC325U Drill diameter ØD (mm): 4.90 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP0495-5P PC325U Drill diameter ØD (mm): 4.95 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP050-5P PC325U Drill diameter ØD (mm): 5.00 | Shank diameter Ød (mm): 5 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP051-5P PC325U Drill diameter ØD (mm): 5.10 | Shank diameter Ød (mm): 6 | L (mm): 33 | Overall length, unlabeled column (mm): 63 | Grade: PC325U | Stock: Yes
ESDP052-5P PC325U Drill diameter ØD (mm): 5.20 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
ESDP053-5P PC325U Drill diameter ØD (mm): 5.30 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
ESDP054-5P PC325U Drill diameter ØD (mm): 5.40 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
ESDP055-5P PC325U Drill diameter ØD (mm): 5.50 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
ESDP056-5P PC325U Drill diameter ØD (mm): 5.60 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
ESDP057-5P PC325U Drill diameter ØD (mm): 5.70 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
ESDP058-5P PC325U Drill diameter ØD (mm): 5.80 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
ESDP059-5P PC325U Drill diameter ØD (mm): 5.90 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
ESDP060-5P PC325U Drill diameter ØD (mm): 6.00 | Shank diameter Ød (mm): 6 | L (mm): 36 | Overall length, unlabeled column (mm): 66 | Grade: PC325U | Stock: Yes
DrillsKorloy
91 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ESD Plus Solid Carbide Drill ESDP-5P

Brand Korloy·Drills

Available part numbers (91)

ESDP010-5P PC325U, ESDP0105-5P PC325U, ESDP011-5P PC325U, ESDP0115-5P PC325U, ESDP012-5P PC325U, ESDP0125-5P PC325U, ESDP013-5P PC325U, ESDP0135-5P PC325U, ESDP014-5P PC325U, ESDP0145-5P PC325U + 81 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
