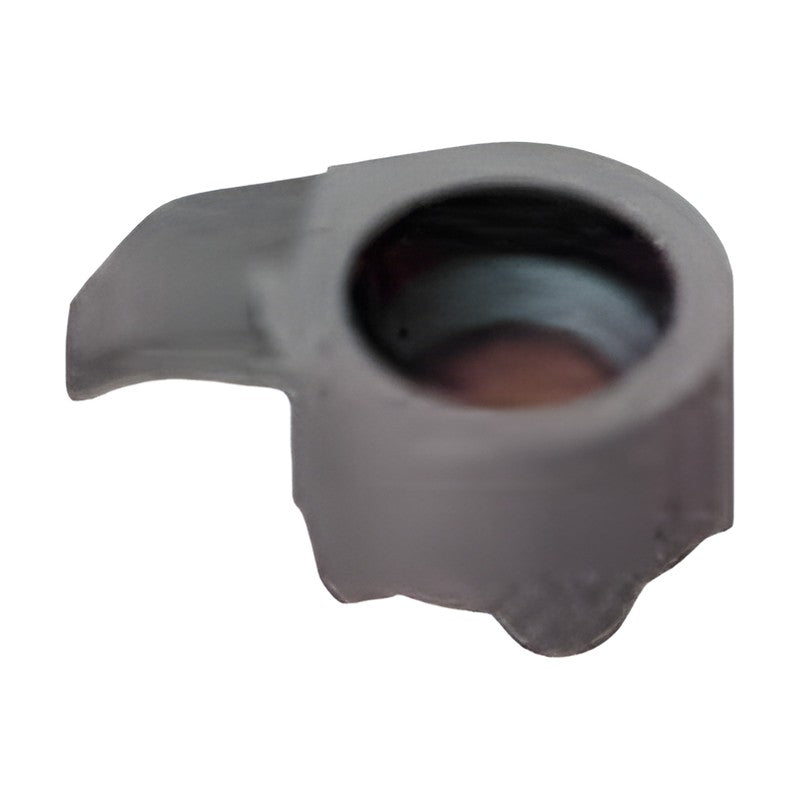

Small-bore forming / profiling insert of the Fine Tools system for internal machining of small diameters on automatic lathes.

Key features

  • Strong clamping system and dedicated insert for small-diameter machining
  • Six insert types can be mounted in one NFTIH holder
  • Min. machining diameter 8~16 mm
  • Coated grade PC5300
  • Right-hand stocked

Specifications

Application Profiling
Grade PC5300
Hand Right
Stock Yes
NFTF08082R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 0.82 | Corner radius r (mm): 0.41 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF08122R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 1.22 | Corner radius r (mm): 0.61 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF08182R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 1.82 | Corner radius r (mm): 0.91 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF11082R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 0.82 | Corner radius r (mm): 0.41 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF11122R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 1.22 | Corner radius r (mm): 0.61 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF11182R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 1.82 | Corner radius r (mm): 0.91 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF11202R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 2.02 | Corner radius r (mm): 1.01 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF11302R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 3.02 | Corner radius r (mm): 1.51 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF14122R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 1.22 | Corner radius r (mm): 0.61 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF14182R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 1.82 | Corner radius r (mm): 0.91 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF14202R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 2.02 | Corner radius r (mm): 1.01 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF14222R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 2.22 | Corner radius r (mm): 1.11 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF14302R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 3.02 | Corner radius r (mm): 1.51 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF16182R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 1.82 | Corner radius r (mm): 0.91 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF16222R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 2.22 | Corner radius r (mm): 1.11 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF16302R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 3.02 | Corner radius r (mm): 1.51 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTF16402R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 4.02 | Corner radius r (mm): 2.01 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
