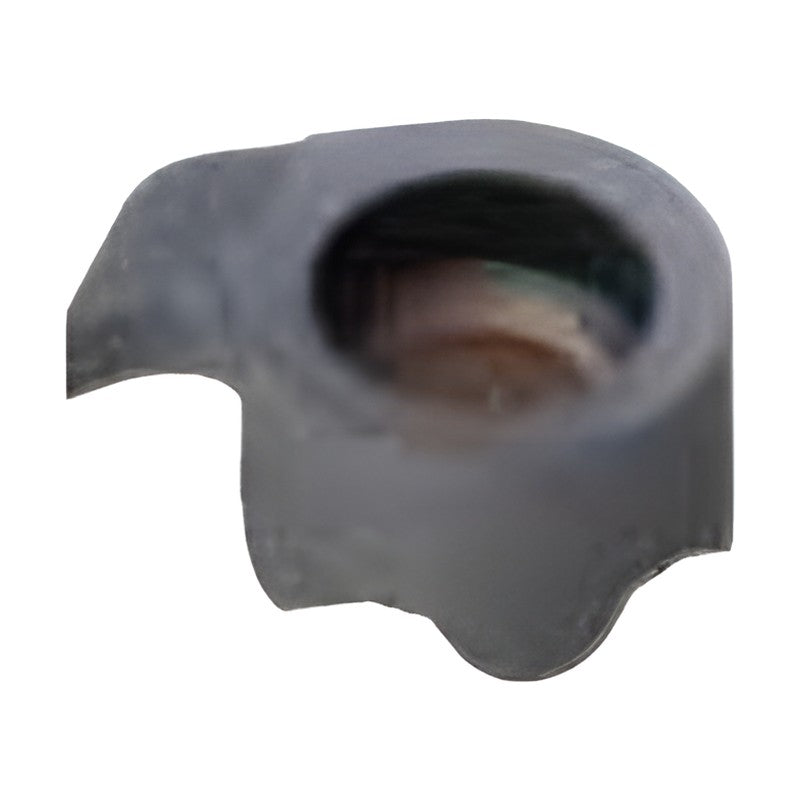

Korloy Auto Tools Fine Tools Insert NFTG Grooving

Korloy Auto Tools Fine Tools Insert NFTG Grooving

Small-bore grooving insert of the Fine Tools system for internal machining of small diameters on automatic lathes.

Key features

  • Strong clamping system and dedicated insert for small-diameter machining
  • Six insert types can be mounted in one NFTIH holder
  • Min. machining diameter 8~16 mm
  • Coated grade PC5300
  • Right-hand stocked

Specifications

Application Grooving
Grade PC5300
Hand Right
Stock Yes
NFTG08075R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 0.75 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG08085R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 0.85 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG08095R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 0.95 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG08121R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 1.21 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG08141R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 1.41 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG08152R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 1.52 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG08171R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 1.71 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG08202R PC5300 Min. machining dia. ØD (mm): 8 | Width b (mm): 2.02 | S (mm): 7.75 | Max. depth g (mm): 1.3 | Thickness t (mm): 3.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11075R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 0.75 | S (mm): 10.7 | Max. depth g (mm): 1.8 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11085R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 0.85 | S (mm): 10.7 | Max. depth g (mm): 1.8 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11095R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 0.95 | S (mm): 10.7 | Max. depth g (mm): 1.8 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11121R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 1.21 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11141R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 1.41 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11171R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 1.71 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11202R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 2.02 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11202R-02 PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 2.02 | Corner radius r (mm): 0.2 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11252R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 2.52 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG11302R PC5300 Min. machining dia. ØD (mm): 11 | Width b (mm): 3.02 | S (mm): 10.7 | Max. depth g (mm): 2.6 | Thickness t (mm): 4.90 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14075R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 0.75 | S (mm): 13.5 | Max. depth g (mm): 1.8 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14085R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 0.85 | S (mm): 13.5 | Max. depth g (mm): 1.8 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14095R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 0.95 | S (mm): 13.5 | Max. depth g (mm): 1.8 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14121R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 1.21 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14141R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 1.41 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14152R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 1.52 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14171R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 1.71 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14202R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 2.02 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14252R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 2.52 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG14302R PC5300 Min. machining dia. ØD (mm): 14 | Width b (mm): 3.02 | S (mm): 13.5 | Max. depth g (mm): 4.3 | Thickness t (mm): 5.85 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16075R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 0.75 | S (mm): 15.7 | Max. depth g (mm): 1.8 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16085R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 0.85 | S (mm): 15.7 | Max. depth g (mm): 1.8 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16095R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 0.95 | S (mm): 15.7 | Max. depth g (mm): 1.8 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16121R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 1.21 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16141R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 1.41 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16171R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 1.71 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16202R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 2.02 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16252R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 2.52 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16302R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 3.02 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16352R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 3.52 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
NFTG16402R PC5300 Min. machining dia. ØD (mm): 16 | Width b (mm): 4.02 | S (mm): 15.7 | Max. depth g (mm): 4.6 | Thickness t (mm): 5.80 | Hand: Right | Stock: Yes | Grade: PC5300
Grooving InsertsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools Fine Tools Insert NFTG Grooving

Brand Korloy·Grooving Inserts

Available part numbers (39)

NFTG08075R PC5300, NFTG08085R PC5300, NFTG08095R PC5300, NFTG08121R PC5300, NFTG08141R PC5300, NFTG08152R PC5300, NFTG08171R PC5300, NFTG08202R PC5300, NFTG11075R PC5300, NFTG11085R PC5300 + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
