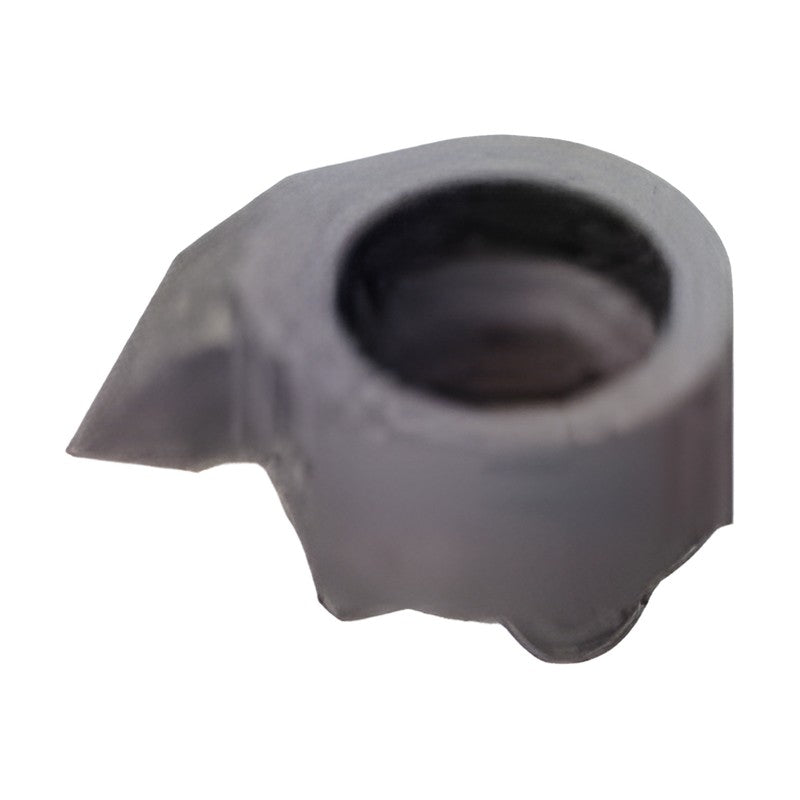

Korloy Auto Tools Fine Tools Insert NFTT Threading

Korloy Auto Tools Fine Tools Insert NFTT Threading

Small-bore threading insert of the Fine Tools system for internal machining of small diameters on automatic lathes.

Key features

  • Strong clamping system and dedicated insert for small-diameter machining
  • Six insert types can be mounted in one NFTIH holder
  • Min. machining diameter 8~16 mm
  • Coated grade PC5300
  • Right-hand stocked

Specifications

Application Threading
Grade PC5300
Hand Right
Stock Yes
NFTT0805MR PC5300 Min. machining dia. ØD (mm): 8 | S (mm): 7.75 | Thickness t (mm): 3.85 | Pitch (mm): 0.5 | f (mm): 1.0 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT0810MR PC5300 Min. machining dia. ØD (mm): 8 | S (mm): 7.75 | Thickness t (mm): 3.85 | Pitch (mm): 1.0 | f (mm): 1.0 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT0815MR PC5300 Min. machining dia. ØD (mm): 8 | S (mm): 7.75 | Thickness t (mm): 3.85 | Pitch (mm): 1.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1110MR PC5300 Min. machining dia. ØD (mm): 11 | S (mm): 10.7 | Thickness t (mm): 4.90 | Pitch (mm): 1.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1115MR PC5300 Min. machining dia. ØD (mm): 11 | S (mm): 10.7 | Thickness t (mm): 4.90 | Pitch (mm): 1.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1120MR PC5300 Min. machining dia. ØD (mm): 11 | S (mm): 10.7 | Thickness t (mm): 4.90 | Pitch (mm): 2.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1125MR PC5300 Min. machining dia. ØD (mm): 11 | S (mm): 10.7 | Thickness t (mm): 4.90 | Pitch (mm): 2.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1410MR PC5300 Min. machining dia. ØD (mm): 14 | S (mm): 13.5 | Thickness t (mm): 5.85 | Pitch (mm): 1.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1415MR PC5300 Min. machining dia. ØD (mm): 14 | S (mm): 13.5 | Thickness t (mm): 5.85 | Pitch (mm): 1.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1420MR PC5300 Min. machining dia. ØD (mm): 14 | S (mm): 13.5 | Thickness t (mm): 5.85 | Pitch (mm): 2.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1425MR PC5300 Min. machining dia. ØD (mm): 14 | S (mm): 13.5 | Thickness t (mm): 5.85 | Pitch (mm): 2.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1610MR PC5300 Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 1.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1615MR PC5300 Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 1.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1620MR PC5300 Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 2.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1625MR PC5300 Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 2.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1630MR PC5300 Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 3.0 | f (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1635MR PC5300 Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 3.5 | f (mm): 1.6 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1640MR PC5300 Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 4.0 | f (mm): 1.8 | Hand: Right | Stock: Yes | Grade: PC5300
Threading InsertsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools Fine Tools Insert NFTT Threading

Brand Korloy·Threading Inserts

Available part numbers (18)

NFTT0805MR PC5300, NFTT0810MR PC5300, NFTT0815MR PC5300, NFTT1110MR PC5300, NFTT1115MR PC5300, NFTT1120MR PC5300, NFTT1125MR PC5300, NFTT1410MR PC5300, NFTT1415MR PC5300, NFTT1420MR PC5300 + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NFTT0805MR PC5300Min. machining dia. ØD (mm): 8 | S (mm): 7.75 | Thickness t (mm): 3.85 | Pitch (mm): 0.5 | f (mm): 1.0 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT0810MR PC5300Min. machining dia. ØD (mm): 8 | S (mm): 7.75 | Thickness t (mm): 3.85 | Pitch (mm): 1.0 | f (mm): 1.0 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT0815MR PC5300Min. machining dia. ØD (mm): 8 | S (mm): 7.75 | Thickness t (mm): 3.85 | Pitch (mm): 1.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1110MR PC5300Min. machining dia. ØD (mm): 11 | S (mm): 10.7 | Thickness t (mm): 4.90 | Pitch (mm): 1.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1115MR PC5300Min. machining dia. ØD (mm): 11 | S (mm): 10.7 | Thickness t (mm): 4.90 | Pitch (mm): 1.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1120MR PC5300Min. machining dia. ØD (mm): 11 | S (mm): 10.7 | Thickness t (mm): 4.90 | Pitch (mm): 2.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1125MR PC5300Min. machining dia. ØD (mm): 11 | S (mm): 10.7 | Thickness t (mm): 4.90 | Pitch (mm): 2.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1410MR PC5300Min. machining dia. ØD (mm): 14 | S (mm): 13.5 | Thickness t (mm): 5.85 | Pitch (mm): 1.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1415MR PC5300Min. machining dia. ØD (mm): 14 | S (mm): 13.5 | Thickness t (mm): 5.85 | Pitch (mm): 1.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1420MR PC5300Min. machining dia. ØD (mm): 14 | S (mm): 13.5 | Thickness t (mm): 5.85 | Pitch (mm): 2.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1425MR PC5300Min. machining dia. ØD (mm): 14 | S (mm): 13.5 | Thickness t (mm): 5.85 | Pitch (mm): 2.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1610MR PC5300Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 1.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1615MR PC5300Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 1.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1620MR PC5300Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 2.0 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1625MR PC5300Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 2.5 | f (mm): 1.2 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1630MR PC5300Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 3.0 | f (mm): 1.5 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1635MR PC5300Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 3.5 | f (mm): 1.6 | Hand: Right | Stock: Yes | Grade: PC5300
NFTT1640MR PC5300Min. machining dia. ØD (mm): 16 | S (mm): 15.7 | Thickness t (mm): 5.80 | Pitch (mm): 4.0 | f (mm): 1.8 | Hand: Right | Stock: Yes | Grade: PC5300
