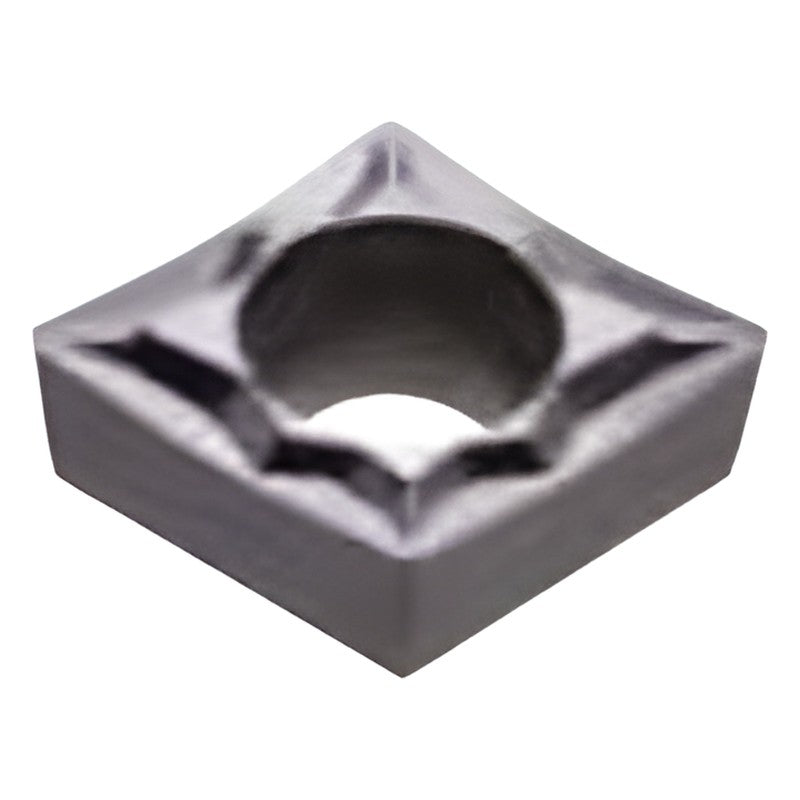

Korloy Auto Tools ISO Turning Insert CCGT-FS

Korloy Auto Tools ISO Turning Insert CCGT-FS

Precision-ground 80° rhombic positive CCGT insert with FS chip breaker for Swiss-type / automatic lathe turning (finishing).

Key features

  • FS chip breaker for finishing with stable chip control
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape C (80° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker FS
Application Finishing
Hand Neutral
CCGT060201-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 6.3 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT060201-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 6.3 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT060202-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT060202-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT060204-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 6.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
CCGT060204-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 6.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
CCGT09T301-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T301-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T302-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T302-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T304-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T304-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT09T308-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 8.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.80 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
CCGT09T308-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 8.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.80 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
CCGT060201MFN-FS Hand: Neutral | Cutting edge length l (mm): 6.3 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT060202MFN-FS Hand: Neutral | Cutting edge length l (mm): 6.2 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT060204MFN-FS Hand: Neutral | Cutting edge length l (mm): 6.0 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T301MFN-FS Hand: Neutral | Cutting edge length l (mm): 9.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T302MFN-FS Hand: Neutral | Cutting edge length l (mm): 9.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 55° | Hole diameter Ød1 (mm): 55° | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T304MFN-FS Hand: Neutral | Cutting edge length l (mm): 9.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
CCGT09T308MFN-FS Hand: Neutral | Cutting edge length l (mm): 8.8 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.8 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
Turning InsertsKorloy
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert CCGT-FS

Brand Korloy·Turning Inserts

Available part numbers (21)

CCGT060201-FS PC5300, CCGT060201-FS PC8110, CCGT060202-FS PC5300, CCGT060202-FS PC8110, CCGT060204-FS PC5300, CCGT060204-FS PC8110, CCGT09T301-FS PC5300, CCGT09T301-FS PC8110, CCGT09T302-FS PC5300, CCGT09T302-FS PC8110 + 11 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
