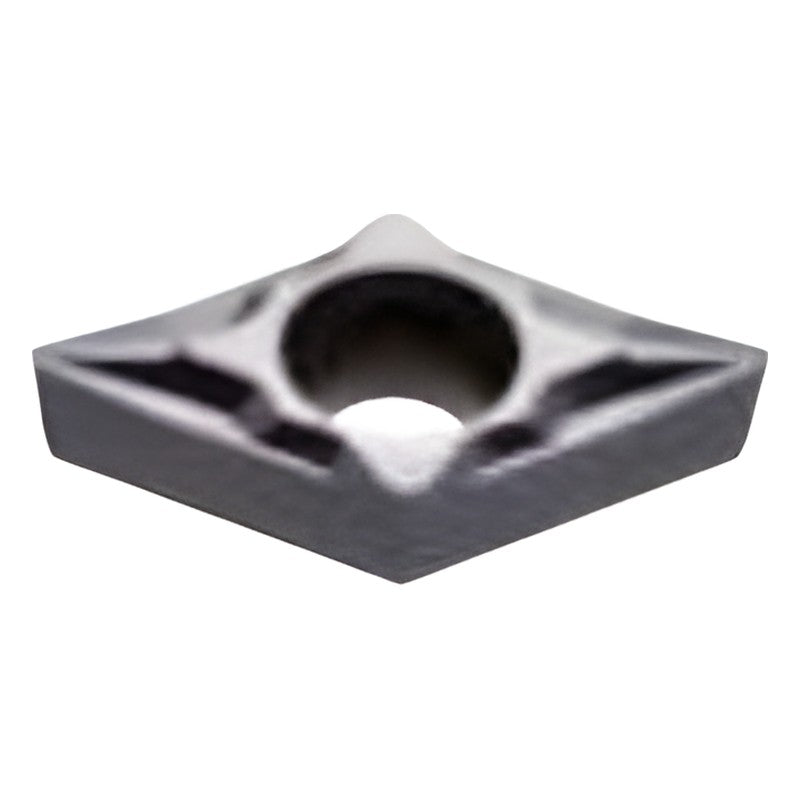

Korloy Auto Tools ISO Turning Insert DCGT-FS

Korloy Auto Tools ISO Turning Insert DCGT-FS

Precision-ground 55° rhombic positive DCGT insert with FS chip breaker for Swiss-type / automatic lathe turning (finishing).

Key features

  • FS chip breaker for finishing with stable chip control
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape D (55° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker FS
Application Finishing
Hand Neutral
DCGT070201-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 7.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
DCGT070201-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 7.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
DCGT070202-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 7.5 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
DCGT070202-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 7.5 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
DCGT11T301-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
DCGT11T301-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
DCGT11T302-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
DCGT11T302-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
DCGT11T304-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 55° | Grade: PC5300 | Stock: Yes
DCGT11T304-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 55° | Grade: PC8110 | Stock: Yes
DCGT11T308-FS PC5300 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.80 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
DCGT11T308-FS PC8110 Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.80 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
DCGT070201MFN-FS Hand: Neutral | Cutting edge length l (mm): 7.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070202MFN-FS Hand: Neutral | Cutting edge length l (mm): 7.5 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T301MFN-FS Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T302MFN-FS Hand: Neutral | Cutting edge length l (mm): 11.4 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T304MFN-FS Hand: Neutral | Cutting edge length l (mm): 11.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 55° | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T308MFN-FS Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.8 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
Turning InsertsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert DCGT-FS

Brand Korloy·Turning Inserts

Available part numbers (18)

DCGT070201-FS PC8110, DCGT070201-FS PC5300, DCGT070202-FS PC8110, DCGT070202-FS PC5300, DCGT11T301-FS PC5300, DCGT11T301-FS PC8110, DCGT11T302-FS PC5300, DCGT11T302-FS PC8110, DCGT11T304-FS PC5300, DCGT11T304-FS PC8110 + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DCGT070201-FS PC8110Hand: Neutral | Cutting edge length l (mm): 7.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
DCGT070201-FS PC5300Hand: Neutral | Cutting edge length l (mm): 7.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
DCGT070202-FS PC8110Hand: Neutral | Cutting edge length l (mm): 7.5 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC8110 | Stock: Yes
DCGT070202-FS PC5300Hand: Neutral | Cutting edge length l (mm): 7.5 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
DCGT11T301-FS PC5300Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
DCGT11T301-FS PC8110Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
DCGT11T302-FS PC5300Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
DCGT11T302-FS PC8110Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
DCGT11T304-FS PC5300Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 55° | Grade: PC5300 | Stock: Yes
DCGT11T304-FS PC8110Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 55° | Grade: PC8110 | Stock: Yes
DCGT11T308-FS PC5300Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.80 | Hole diameter Ød1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
DCGT11T308-FS PC8110Hand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.80 | Hole diameter Ød1 (mm): 4.4 | Grade: PC8110 | Stock: Yes
DCGT070201MFN-FSHand: Neutral | Cutting edge length l (mm): 7.6 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070202MFN-FSHand: Neutral | Cutting edge length l (mm): 7.5 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T301MFN-FSHand: Neutral | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T302MFN-FSHand: Neutral | Cutting edge length l (mm): 11.4 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T304MFN-FSHand: Neutral | Cutting edge length l (mm): 11.2 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.4 | Hole diameter Ød1 (mm): 55° | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T308MFN-FSHand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.8 | Hole diameter Ød1 (mm): 4.4 | Nose R tolerance: Minus (MF, high precision) | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
