Korloy Auto Tools ISO Turning Insert DCGT-KF

Korloy Auto Tools ISO Turning Insert DCGT-KF

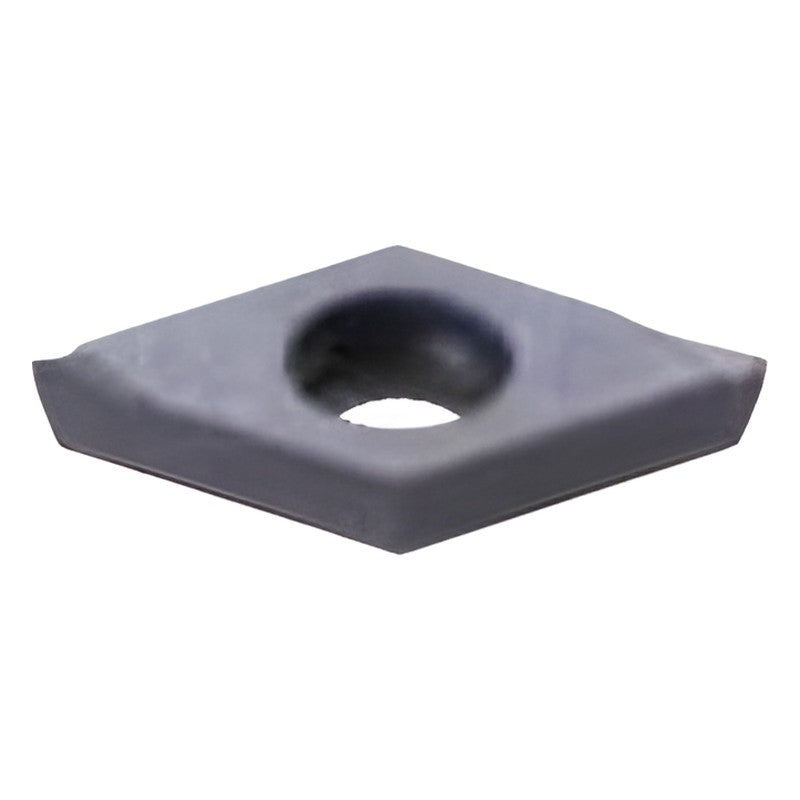

Precision-ground 55° rhombic positive DCGT insert with KF chip breaker for Swiss-type / automatic lathe turning (finishing).

Key features

  • KF chip breaker for finishing with sharp cutting edge
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape D (55° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker KF
Application Finishing
Grades PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01
Stock Not marked as stock item
DCGT0702005R-KF Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070201R-KF Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070202R-KF Hand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T3005R-KF Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T301R-KF Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T302R-KF Hand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT0702005L-KF Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070201L-KF Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070202L-KF Hand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T3005L-KF Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T301L-KF Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T302L-KF Hand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
Turning InsertsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert DCGT-KF

Brand Korloy·Turning Inserts

Available part numbers (12)

DCGT0702005R-KF, DCGT070201R-KF, DCGT070202R-KF, DCGT11T3005R-KF, DCGT11T301R-KF, DCGT11T302R-KF, DCGT0702005L-KF, DCGT070201L-KF, DCGT070202L-KF, DCGT11T3005L-KF + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DCGT0702005R-KFHand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070201R-KFHand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070202R-KFHand: Right | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T3005R-KFHand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T301R-KFHand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T302R-KFHand: Right | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT0702005L-KFHand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070201L-KFHand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT070202L-KFHand: Left | Cutting edge length l (mm): 7.8 | Inscribed circle Ød (mm): 6.35 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T3005L-KFHand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T301L-KFHand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
DCGT11T302L-KFHand: Left | Cutting edge length l (mm): 11.6 | Inscribed circle Ød (mm): 9.525 | Thickness t (mm): 3.97 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 4.4 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
