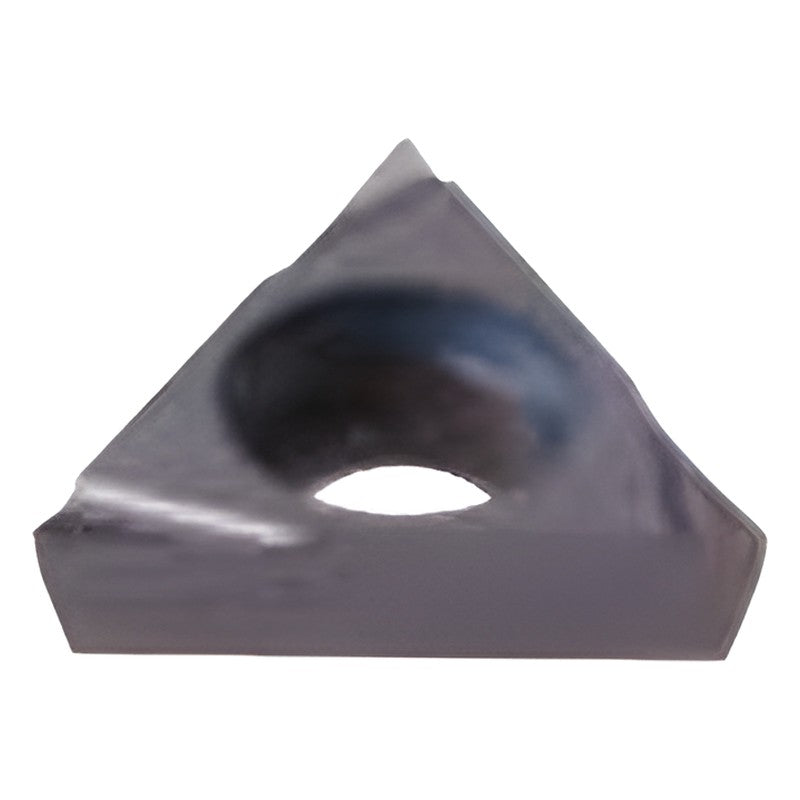

Korloy Auto Tools ISO Turning Insert TCGT-KF

Korloy Auto Tools ISO Turning Insert TCGT-KF

Precision-ground 60° triangular positive TCGT insert with KF chip breaker for Swiss-type / automatic lathe turning (finishing).

Key features

  • KF chip breaker for finishing with sharp cutting edge
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape T (60° triangular)
Relief angle 7°
Tolerance class G
Chip breaker KF
Application Finishing
Inscribed circle Ød (mm) 4.76
Thickness t (mm) 2.38
Hole diameter Ød1 (mm) 2.38
Grades PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01
Stock Not marked as stock item
TCGT0802003R-KF Hand: Right | Cutting edge length l (mm): 8.15 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT080201R-KF Hand: Right | Cutting edge length l (mm): 8 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT080202R-KF Hand: Right | Cutting edge length l (mm): 7.7 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT08020003L-KF Hand: Left | Cutting edge length l (mm): 8.15 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT080201L-KF Hand: Left | Cutting edge length l (mm): 8 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT080202L-KF Hand: Left | Cutting edge length l (mm): 7.7 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
Turning InsertsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert TCGT-KF

Brand Korloy·Turning Inserts

Available part numbers (6)

TCGT0802003R-KF, TCGT080201R-KF, TCGT080202R-KF, TCGT08020003L-KF, TCGT080201L-KF, TCGT080202L-KF

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCGT0802003R-KFHand: Right | Cutting edge length l (mm): 8.15 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT080201R-KFHand: Right | Cutting edge length l (mm): 8 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT080202R-KFHand: Right | Cutting edge length l (mm): 7.7 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT08020003L-KFHand: Left | Cutting edge length l (mm): 8.15 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.05 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT080201L-KFHand: Left | Cutting edge length l (mm): 8 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.1 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
TCGT080202L-KFHand: Left | Cutting edge length l (mm): 7.7 | Inscribed circle Ød (mm): 4.76 | Thickness t (mm): 2.38 | Nose radius r (mm): 0.2 | Hole diameter Ød1 (mm): 2.38 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
