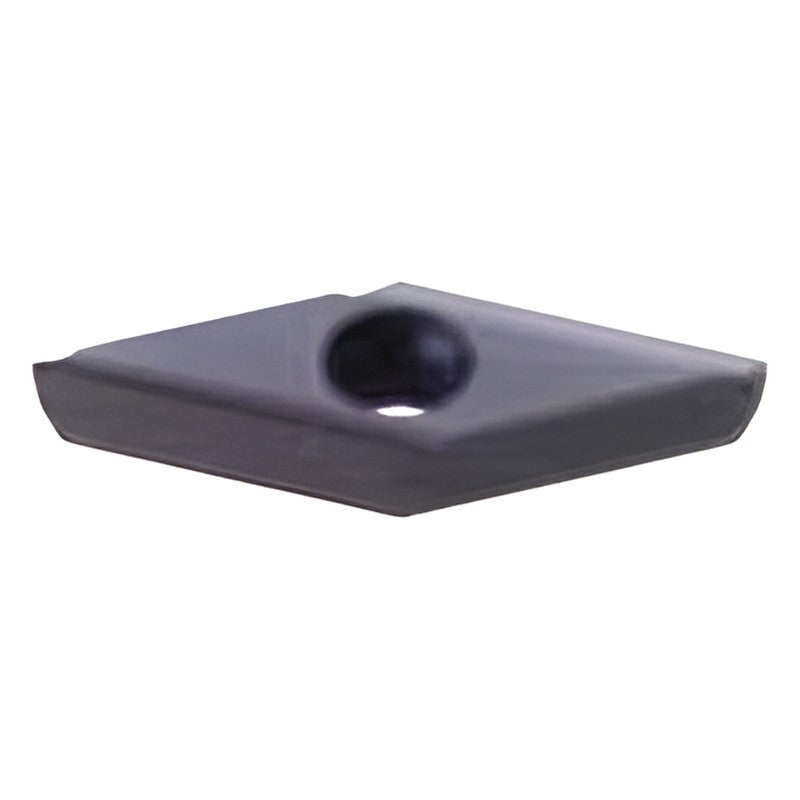

Korloy Auto Tools ISO Turning Insert VCET-KM

Precision-ground 35° rhombic positive VCET insert with KM chip breaker for Swiss-type / automatic lathe turning (medium to finishing).

Key features

KM chip breaker for medium-to-finishing cutting
Positive 7° relief for low cutting force on small parts
Precise nose R with minus tolerance (MF types)
Sharp edges for chip control and surface roughness on small diameters
For precision electrical/electronic and medical components

Specifications

Insert shape	V (35° rhombic)
Relief angle	7°
Tolerance class	E
Chip breaker	KM
Application	Medium to finishing
Cutting edge length l (mm)	11
Inscribed circle Ød (mm)	6.35
Thickness t (mm)	3.18
Hole diameter Ød1 (mm)	2.8
Nose R tolerance	Minus (MF, high precision)
Stock	Yes

VCET1103005MFR-KM PC5300		Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.05 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCET1103005MFR-KM PC8110		Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.05 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
VCET110301MFR-KM PC5300		Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCET110301MFR-KM PC8110		Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
VCET110302MFR-KM PC5300		Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCET110302MFR-KM PC8110		Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
VCET11T3005MFL-KM PC5300		Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.05 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCET11T3005MFL-KM PC8110		Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.05 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
VCET11T301MFL-KM PC5300		Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCET11T301MFL-KM PC8110		Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
VCET11T302MFL-KM PC5300		Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
VCET11T302MFL-KM PC8110		Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes

Turning InsertsKorloy

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert VCET-KM

Brand Korloy·Turning Inserts

Available part numbers (12)

VCET1103005MFR-KM PC5300, VCET1103005MFR-KM PC8110, VCET110301MFR-KM PC5300, VCET110301MFR-KM PC8110, VCET110302MFR-KM PC5300, VCET110302MFR-KM PC8110, VCET11T3005MFL-KM PC5300, VCET11T3005MFL-KM PC8110, VCET11T301MFL-KM PC5300, VCET11T301MFL-KM PC8110 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VCET1103005MFR-KM PC5300	Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.05 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCET1103005MFR-KM PC8110	Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.05 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
	VCET110301MFR-KM PC5300	Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCET110301MFR-KM PC8110	Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
	VCET110302MFR-KM PC5300	Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCET110302MFR-KM PC8110	Hand: Right \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
	VCET11T3005MFL-KM PC5300	Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.05 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCET11T3005MFL-KM PC8110	Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.05 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
	VCET11T301MFL-KM PC5300	Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCET11T301MFL-KM PC8110	Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.1 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
	VCET11T302MFL-KM PC5300	Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC5300 \| Stock: Yes
	VCET11T302MFL-KM PC8110	Hand: Left \| Cutting edge length l (mm): 11 \| Inscribed circle Ød (mm): 6.35 \| Thickness t (mm): 3.18 \| Nose radius r (mm): 0.2 \| Hole diameter Ød1 (mm): 2.8 \| Nose R tolerance: Minus (MF, high precision) \| Grade: PC8110 \| Stock: Yes
