Korloy Auto Tools ISO Turning Insert VCGT-MS

Korloy Auto Tools ISO Turning Insert VCGT-MS

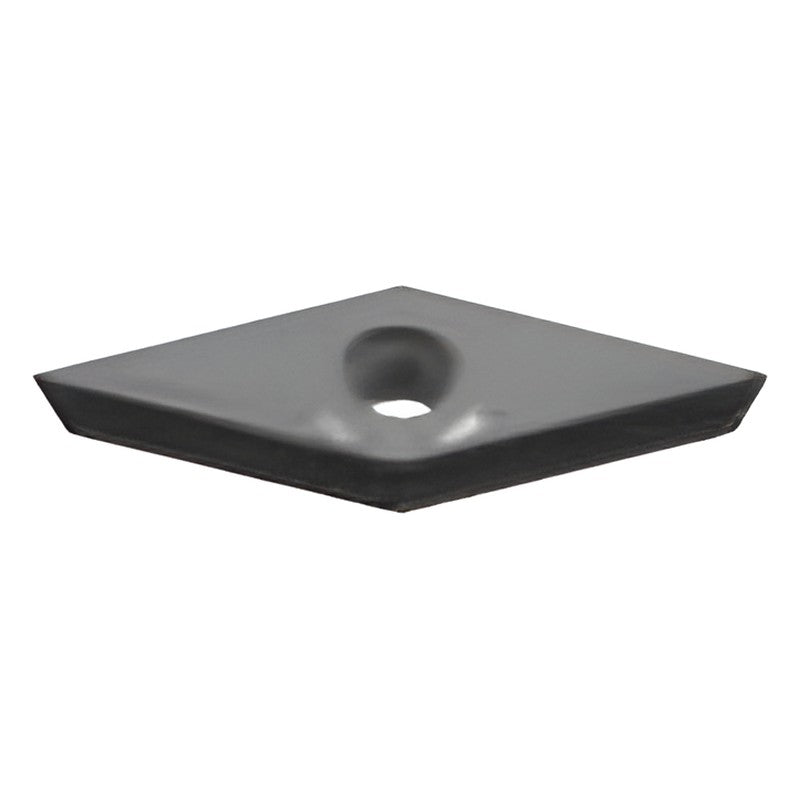

Precision-ground 35° rhombic positive VCGT insert with MS chip breaker for Swiss-type / automatic lathe turning (medium cutting).

Key features

  • MS chip breaker for medium cutting with good surface roughness
  • Positive 7° relief for low cutting force on small parts
  • Precise nose R with minus tolerance (MF types)
  • Sharp edges for chip control and surface roughness on small diameters
  • For precision electrical/electronic and medical components

Specifications

Insert shape V (35° rhombic)
Relief angle 7°
Tolerance class G
Chip breaker MS
Application Medium cutting
Hand Neutral
Cutting edge length l (mm) 11.0
Inscribed circle Ød (mm) 7.50
Thickness t (mm) 3.00
Hole diameter Ød1 (mm) 2.8
Grades PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01
Stock Not marked as stock item
VCGT1203008FN-MS Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.00 | Nose radius r (mm): 0.08 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT120301FN-MS Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.00 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT120302FN-MS Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.00 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT120304FN-MS Hand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.00 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
Turning InsertsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools ISO Turning Insert VCGT-MS

Brand Korloy·Turning Inserts

Available part numbers (4)

VCGT1203008FN-MS, VCGT120301FN-MS, VCGT120302FN-MS, VCGT120304FN-MS

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VCGT1203008FN-MSHand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.00 | Nose radius r (mm): 0.08 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT120301FN-MSHand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.00 | Nose radius r (mm): 0.10 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT120302FN-MSHand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.00 | Nose radius r (mm): 0.20 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
VCGT120304FN-MSHand: Neutral | Cutting edge length l (mm): 11.0 | Inscribed circle Ød (mm): 7.50 | Thickness t (mm): 3.00 | Nose radius r (mm): 0.40 | Hole diameter Ød1 (mm): 2.8 | Grades: PC5300 / PC8105 / PC8110 / PC8115 / PC9030 / H01 | Stock: Not marked as stock item
