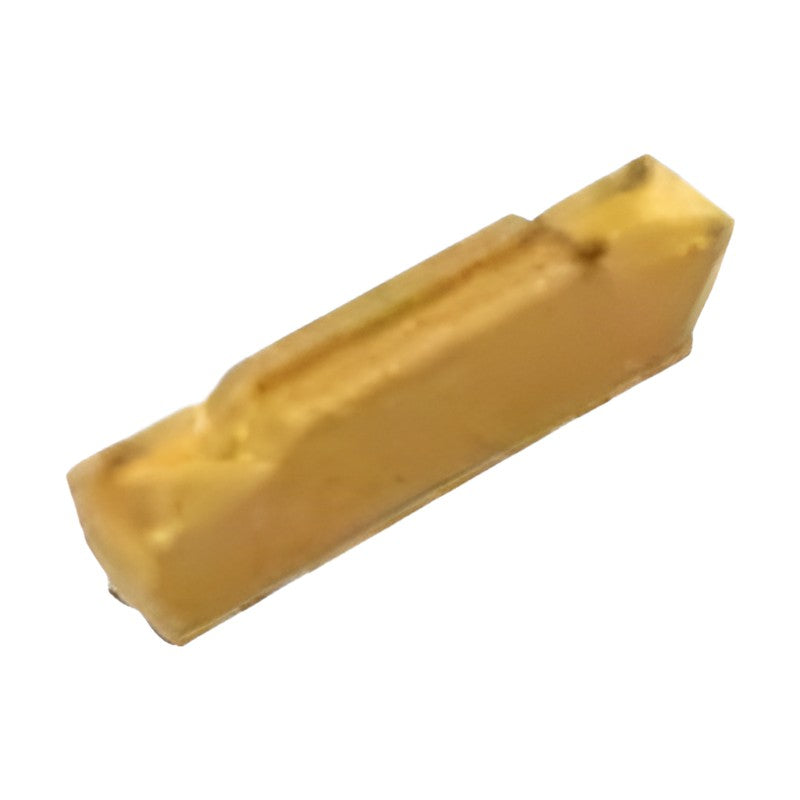

Korloy Auto Tools MGT Grooving Insert MGMN-G

Korloy Auto Tools MGT Grooving Insert MGMN-G

Double-sided MGT grooving insert MGMN-G for automatic lathes - grooving.

Key features

  • Economic double-sided insert
  • For MGEHR/L exclusive holders
  • Widths 1.5~2.5 mm
  • Grades NC3030 / NC3120 / PC5300 / PC9030 (availability per row)

Specifications

Chip breaker MGMN-G
Application Grooving
Stock Yes
MGMN150-G NC3030 Width b (mm): 1.5 | Corner radius r (mm): 0.15 | Length l (mm): 16.0 | d (mm): 1.2 | Max. depth t (mm): 3.50 | Grade: NC3030 | Stock: Yes
MGMN150-G NC3120 Width b (mm): 1.5 | Corner radius r (mm): 0.15 | Length l (mm): 16.0 | d (mm): 1.2 | Max. depth t (mm): 3.50 | Grade: NC3120 | Stock: Yes
MGMN150-G PC5300 Width b (mm): 1.5 | Corner radius r (mm): 0.15 | Length l (mm): 16.0 | d (mm): 1.2 | Max. depth t (mm): 3.50 | Grade: PC5300 | Stock: Yes
MGMN150-G PC9030 Width b (mm): 1.5 | Corner radius r (mm): 0.15 | Length l (mm): 16.0 | d (mm): 1.2 | Max. depth t (mm): 3.50 | Grade: PC9030 | Stock: Yes
MGMN200-G NC3030 Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: NC3030 | Stock: Yes
MGMN200-G NC3120 Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: NC3120 | Stock: Yes
MGMN200-G PC5300 Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: PC5300 | Stock: Yes
MGMN200-G PC9030 Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: PC9030 | Stock: Yes
MGMN250-G NC3030 Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: NC3030 | Stock: Yes
MGMN250-G NC3120 Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: NC3120 | Stock: Yes
MGMN250-G PC5300 Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: PC5300 | Stock: Yes
MGMN250-G PC9030 Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: PC9030 | Stock: Yes
Grooving InsertsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools MGT Grooving Insert MGMN-G

Brand Korloy·Grooving Inserts

Available part numbers (12)

MGMN150-G NC3030, MGMN150-G NC3120, MGMN150-G PC5300, MGMN150-G PC9030, MGMN200-G NC3030, MGMN200-G NC3120, MGMN200-G PC5300, MGMN200-G PC9030, MGMN250-G NC3030, MGMN250-G NC3120 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGMN150-G NC3030Width b (mm): 1.5 | Corner radius r (mm): 0.15 | Length l (mm): 16.0 | d (mm): 1.2 | Max. depth t (mm): 3.50 | Grade: NC3030 | Stock: Yes
MGMN150-G NC3120Width b (mm): 1.5 | Corner radius r (mm): 0.15 | Length l (mm): 16.0 | d (mm): 1.2 | Max. depth t (mm): 3.50 | Grade: NC3120 | Stock: Yes
MGMN150-G PC5300Width b (mm): 1.5 | Corner radius r (mm): 0.15 | Length l (mm): 16.0 | d (mm): 1.2 | Max. depth t (mm): 3.50 | Grade: PC5300 | Stock: Yes
MGMN150-G PC9030Width b (mm): 1.5 | Corner radius r (mm): 0.15 | Length l (mm): 16.0 | d (mm): 1.2 | Max. depth t (mm): 3.50 | Grade: PC9030 | Stock: Yes
MGMN200-G NC3030Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: NC3030 | Stock: Yes
MGMN200-G NC3120Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: NC3120 | Stock: Yes
MGMN200-G PC5300Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: PC5300 | Stock: Yes
MGMN200-G PC9030Width b (mm): 2.0 | Corner radius r (mm): 0.20 | Length l (mm): 16.0 | d (mm): 1.6 | Max. depth t (mm): 3.50 | Grade: PC9030 | Stock: Yes
MGMN250-G NC3030Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: NC3030 | Stock: Yes
MGMN250-G NC3120Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: NC3120 | Stock: Yes
MGMN250-G PC5300Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: PC5300 | Stock: Yes
MGMN250-G PC9030Width b (mm): 2.5 | Corner radius r (mm): 0.20 | Length l (mm): 18.5 | d (mm): 2.0 | Max. depth t (mm): 3.85 | Grade: PC9030 | Stock: Yes
