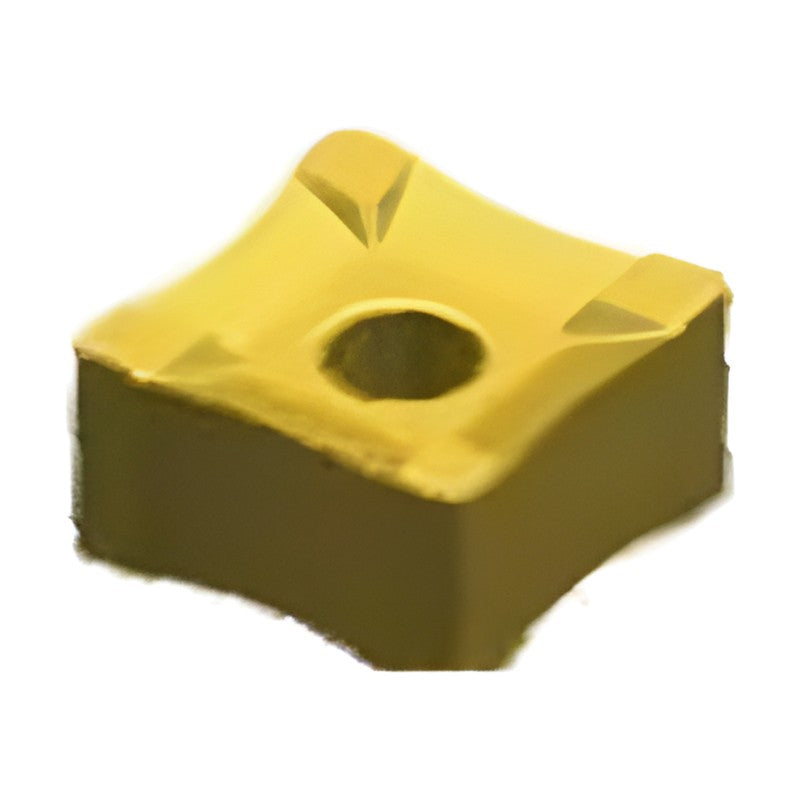

Korloy External Bead Removal Insert SNMG

Korloy External Bead Removal Insert SNMG

Double-sided SNMG insert with concave profile radius for external (O.D.) weld bead trimming of pipe.

Key features

  • Removes weld bead after longitudinal welding of pipe
  • Wide range of profile radii to match pipe diameter
  • Grades resist plastic deformation and edge breakage

Specifications

Application External (O.D.) bead removal
Recommended grades NC5330 (main) / NC5340 / PC5300
SNMG150708-R11 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 11 mm | d1: 5.16 mm
SNMG150708-R13 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 13 mm | d1: 5.16 mm
SNMG150708-R15 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 15 mm | d1: 5.16 mm
SNMG150708-R18 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 18 mm | d1: 5.16 mm
SNMG150708-R20 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 20 mm | d1: 5.16 mm
SNMG150708-R22 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 22 mm | d1: 5.16 mm
SNMG150708-R25 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 25 mm | d1: 5.16 mm
SNMG150708-R30 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 30 mm | d1: 5.16 mm
SNMG150708-R35 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 35 mm | d1: 5.16 mm
SNMG150708-R40 l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 40 mm | d1: 5.16 mm
SNMG190708-R10 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 10 mm | d1: 8.0 mm
SNMG190708-R12 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 12 mm | d1: 8.0 mm
SNMG190708-R15 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 15 mm | d1: 8.0 mm
SNMG190708-R18 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 18 mm | d1: 8.0 mm
SNMG190708-R20 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 20 mm | d1: 8.0 mm
SNMG190708-R25 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 25 mm | d1: 8.0 mm
SNMG190708-R27 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 27 mm | d1: 8.0 mm
SNMG190708-R30 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 30 mm | d1: 8.0 mm
SNMG190708-R35 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 35 mm | d1: 8.0 mm
SNMG190708-R40 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 40 mm | d1: 8.0 mm
SNMG190708-R45 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 45 mm | d1: 8.0 mm
SNMG190708-R55 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 55 mm | d1: 8.0 mm
SNMG190708-R60 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 60 mm | d1: 8.0 mm
SNMG190708-R80 l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 80 mm | d1: 8.0 mm
Bead Removal InsertsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy External Bead Removal Insert SNMG

Brand Korloy·Bead Removal Inserts

Available part numbers (24)

SNMG150708-R11, SNMG150708-R13, SNMG150708-R15, SNMG150708-R18, SNMG150708-R20, SNMG150708-R22, SNMG150708-R25, SNMG150708-R30, SNMG150708-R35, SNMG150708-R40 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNMG150708-R11l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 11 mm | d1: 5.16 mm
SNMG150708-R13l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 13 mm | d1: 5.16 mm
SNMG150708-R15l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 15 mm | d1: 5.16 mm
SNMG150708-R18l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 18 mm | d1: 5.16 mm
SNMG150708-R20l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 20 mm | d1: 5.16 mm
SNMG150708-R22l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 22 mm | d1: 5.16 mm
SNMG150708-R25l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 25 mm | d1: 5.16 mm
SNMG150708-R30l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 30 mm | d1: 5.16 mm
SNMG150708-R35l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 35 mm | d1: 5.16 mm
SNMG150708-R40l: 15.875 mm | L: 10 mm | t: 7.94 mm | Profile R: 40 mm | d1: 5.16 mm
SNMG190708-R10l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 10 mm | d1: 8.0 mm
SNMG190708-R12l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 12 mm | d1: 8.0 mm
SNMG190708-R15l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 15 mm | d1: 8.0 mm
SNMG190708-R18l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 18 mm | d1: 8.0 mm
SNMG190708-R20l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 20 mm | d1: 8.0 mm
SNMG190708-R25l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 25 mm | d1: 8.0 mm
SNMG190708-R27l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 27 mm | d1: 8.0 mm
SNMG190708-R30l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 30 mm | d1: 8.0 mm
SNMG190708-R35l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 35 mm | d1: 8.0 mm
SNMG190708-R40l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 40 mm | d1: 8.0 mm
SNMG190708-R45l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 45 mm | d1: 8.0 mm
SNMG190708-R55l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 55 mm | d1: 8.0 mm
SNMG190708-R60l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 60 mm | d1: 8.0 mm
SNMG190708-R80l: 19.05 mm | L: 12 mm | t: 8.35 mm | Profile R: 80 mm | d1: 8.0 mm
