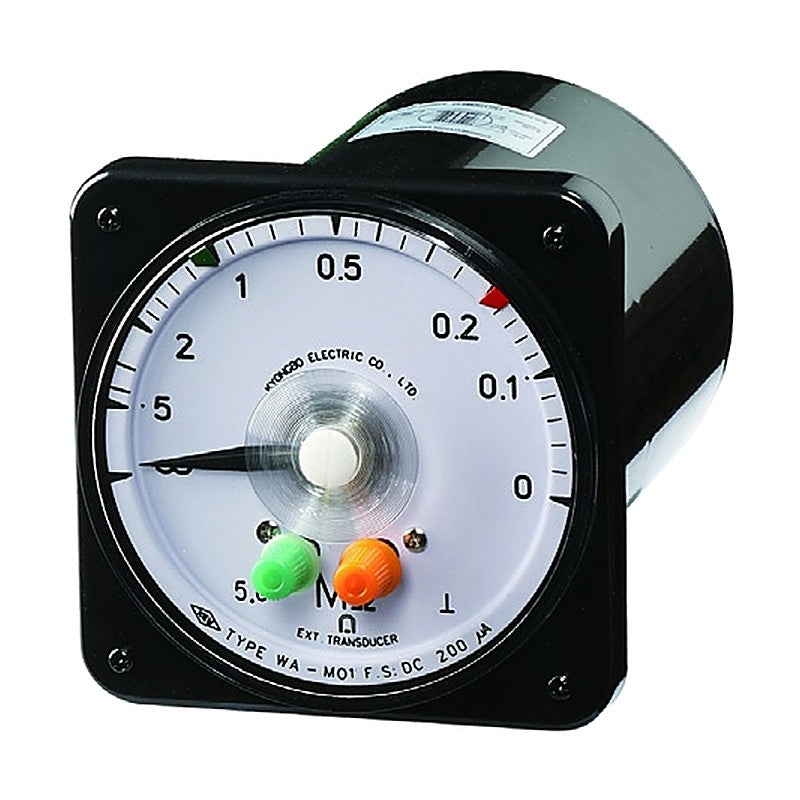

Kyongbo Electric Insulation Resistance Meter Relay WA-MO1

Kyongbo Electric Insulation Resistance Meter Relay WA-MO1

The insulation resistance meter relay indicates insulation resistance to ground of non-grounded AC distribution systems and detects ground faults, with an accessory power box.

Key features

  • Meter relay plus power box with voltage regulator
  • Pointer swings from infinity to zero
  • Meters rated DC 250 uA, DC 50 V also available

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
WA-MO1 Rated: 0-5 MOhm (FS DC 200 uA, DC 100 V) | Line Voltage: Below AC 600 V | Tolerance: 5.0% in 0.05-1 MOhm range | Auxiliary Power: AC 110 V / 220 V | Output Contact: AC 110 V, 5 A
Analog Panel MetersKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Insulation Resistance Meter Relay WA-MO1

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (1)

WA-MO1

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WA-MO1Rated: 0-5 MOhm (FS DC 200 uA, DC 100 V) | Line Voltage: Below AC 600 V | Tolerance: 5.0% in 0.05-1 MOhm range | Auxiliary Power: AC 110 V / 220 V | Output Contact: AC 110 V, 5 A
