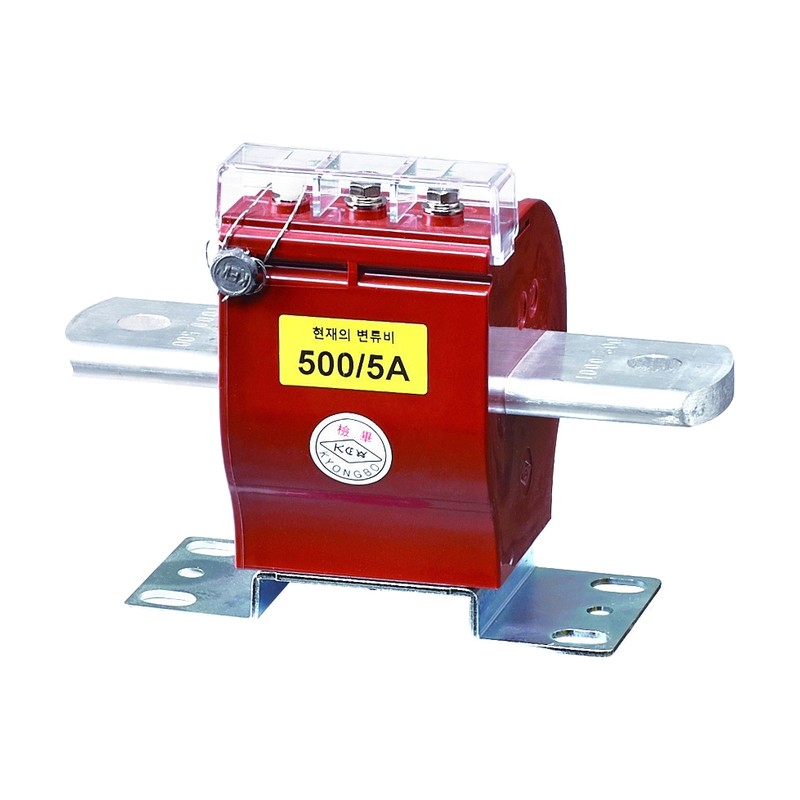

Kyongbo Electric Low Voltage Metering Current Transformer 0.23 kV WL4K

Kyongbo Electric Low Voltage Metering Current Transformer 0.23 kV WL4K

Indoor winding-type metering current transformer for 0.23 kV circuits, epoxy molded with flame retardant ABS case.

Key features

  • For metering service
  • Indoor use
  • Winding type, lightweight
  • Secondary terminal cover
  • 90 degree rotatable mounting
  • Epoxy molding, flame retardant ABS case
WL4K Max. Voltage: 0.23 kV | Primary Current: 300-150, 400-200, 500-250, 600-300, 800-400, 1000-500 A | Secondary Current: 5 A | Accuracy Class: 0.5W | Burden: 15 VA | Frequency: 60 Hz | Short-time Current: 40In | Weight: approx. 1.8-2.2 kg | Standard: KS C 1707, ES-5950-0007
Current TransformersKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Low Voltage Metering Current Transformer 0.23 kV WL4K

Brand Kyongbo Electric·Current Transformers

Available part numbers (1)

WL4K

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WL4KMax. Voltage: 0.23 kV | Primary Current: 300-150, 400-200, 500-250, 600-300, 800-400, 1000-500 A | Secondary Current: 5 A | Accuracy Class: 0.5W | Burden: 15 VA | Frequency: 60 Hz | Short-time Current: 40In | Weight: approx. 1.8-2.2 kg | Standard: KS C 1707, ES-5950-0007
