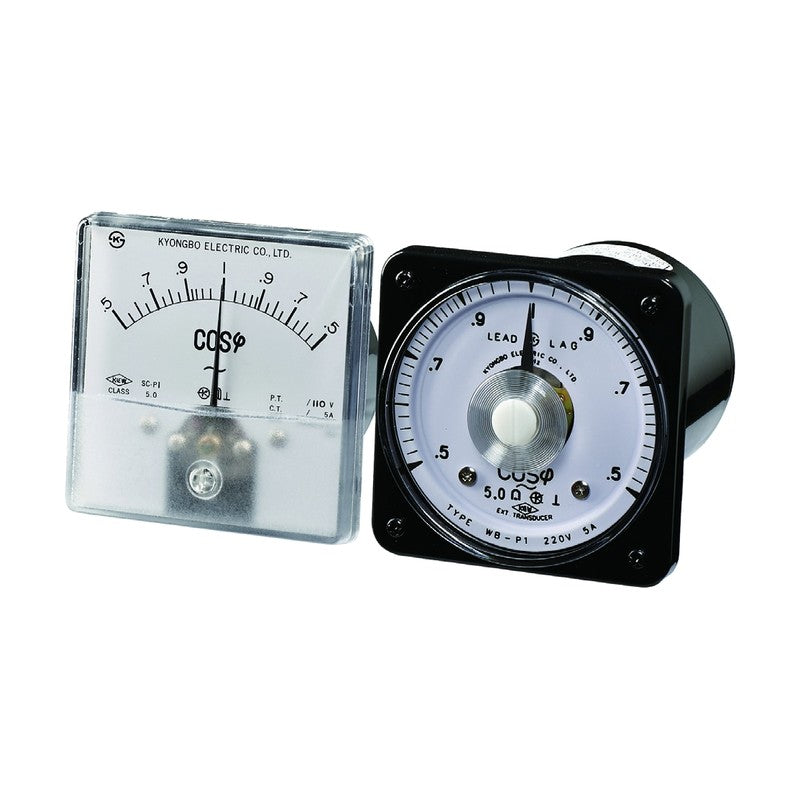

Kyongbo Electric Power Factor Meter P1-P4 (Transducer Type)

Kyongbo Electric Power Factor Meter P1-P4 (Transducer Type)

Transducer type panel power factor meter for balanced and unbalanced loads.

Key features

  • Standard scale LEAD 0.5 - 1 - LAG 0.5
  • Accuracy guaranteed above 30% of rated current
  • Internal (WA-TP) or external transducer

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Current Input 5 A or 1 A
Accuracy Class 5.0% (of 90 electrical degrees)
Burden Voltage 0.5 VA, current 0.5 VA
SC-P1 Size: 80 x 80 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
SB-P1 Size: 100 x 84 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
SA-P1 Size: 120 x 100 mm | Scale Form: Square | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WB-P1 Size: 80 x 80 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WA-P1 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: External
WA-TP1 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 2W | Voltage: 110 or 220 V | Transducer: Internal
SC-P2 Size: 80 x 80 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
SB-P2 Size: 100 x 84 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
SA-P2 Size: 120 x 100 mm | Scale Form: Square | System: 1P 3W | Voltage: 110 V | Transducer: External
WB-P2 Size: 80 x 80 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: External
WA-P2 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: External
WA-TP2 Size: 110 x 110 mm | Scale Form: Wide angle | System: 1P 3W | Voltage: 110 V | Transducer: Internal
SC-P3 Size: 80 x 80 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
SC-UP3 Size: 80 x 80 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
SB-P3 Size: 100 x 84 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
SB-UP3 Size: 100 x 84 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
SA-P3 Size: 120 x 100 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
SA-UP3 Size: 120 x 100 mm | Scale Form: Square | System: 3P 3W | Voltage: 110 or 220 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
WB-P3 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
WB-UP3 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
WA-P3 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
WA-UP3 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
WA-TP3 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: Internal
WA-UTP3 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 3W | Voltage: 110 or 220 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: Internal
SC-P4 Size: 80 x 80 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
SC-UP4 Size: 80 x 80 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
SB-P4 Size: 100 x 84 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
SB-UP4 Size: 100 x 84 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
SA-P4 Size: 120 x 100 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
SA-UP4 Size: 120 x 100 mm | Scale Form: Square | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
WB-P4 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
WB-UP4 Size: 80 x 80 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
WA-P4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: External
WA-UP4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: External
WA-TP4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Balanced | Frequency: 50/60 Hz | Transducer: Internal
WA-UTP4 Size: 110 x 110 mm | Scale Form: Wide angle | System: 3P 4W | Voltage: 190/sqrt3 or 380/sqrt3 V | Load: Unbalanced | Frequency: 50 or 60 Hz | Transducer: Internal
