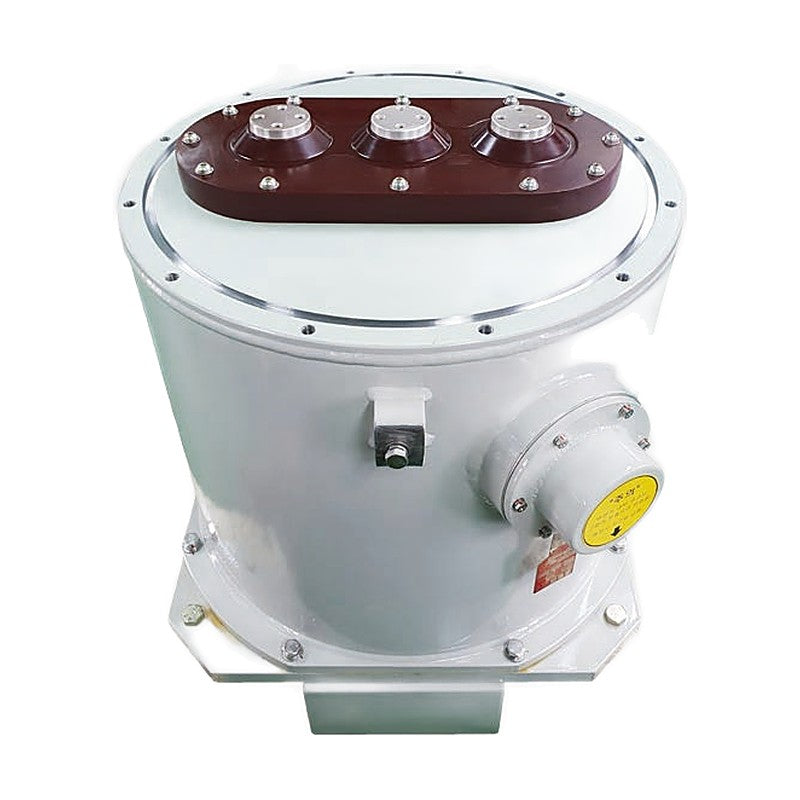

Kyongbo Electric SF6 Gas Insulated Earthed Voltage Transformer 25.8 kV GE-10

Kyongbo Electric SF6 Gas Insulated Earthed Voltage Transformer 25.8 kV GE-10

Three-phase SF6 gas insulated earthed voltage transformer for 25.8 kV systems.

Key features

  • Line-to-earth voltage transformer
  • SF6 gas insulation
  • Three phase
GE-10 Standard: IEC 61869-3 | Max. Voltage: 24 kV | Phase: 3 phase | Primary Voltage: 22900/sqrt3 V | Secondary Voltage: 110/sqrt3 or 190/sqrt3 V | Tertiary Voltage: 190/3 V | Insulation Level: 24/50/125 kV | Accuracy Class: 1.0 / 3P | Burden: 200/200 VA (total 200 VA) | Over Voltage Factor: 1.2Vn continuous / 1.5Vn 30 s | Frequency: 60 Hz | Weight: approx. 280 kg
Voltage TransformersKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric SF6 Gas Insulated Earthed Voltage Transformer 25.8 kV GE-10

Brand Kyongbo Electric·Voltage Transformers

Available part numbers (1)

GE-10

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GE-10Standard: IEC 61869-3 | Max. Voltage: 24 kV | Phase: 3 phase | Primary Voltage: 22900/sqrt3 V | Secondary Voltage: 110/sqrt3 or 190/sqrt3 V | Tertiary Voltage: 190/3 V | Insulation Level: 24/50/125 kV | Accuracy Class: 1.0 / 3P | Burden: 200/200 VA (total 200 VA) | Over Voltage Factor: 1.2Vn continuous / 1.5Vn 30 s | Frequency: 60 Hz | Weight: approx. 280 kg
