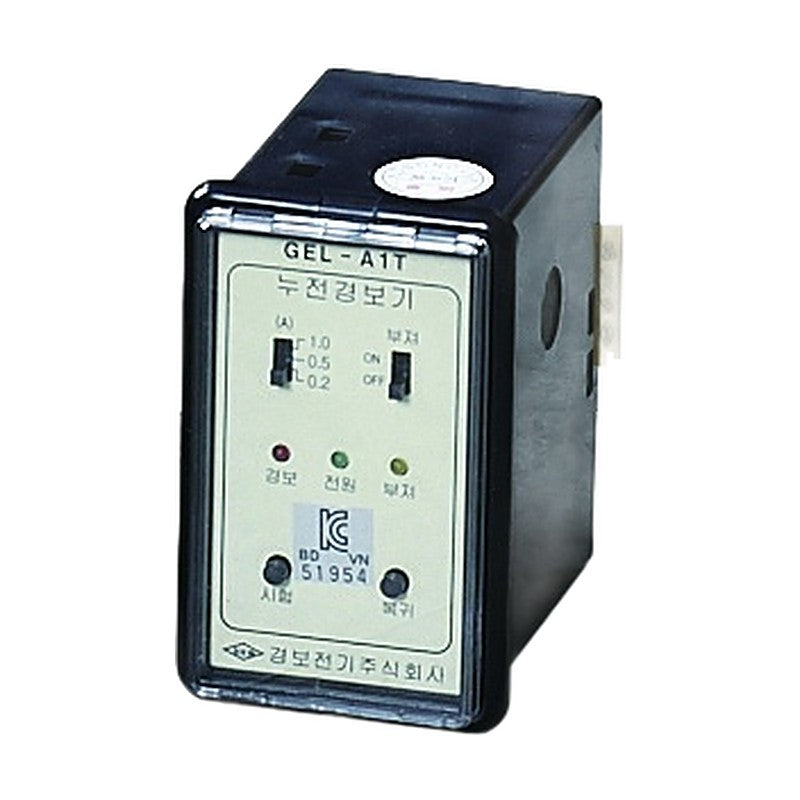

Kyongbo Electric Single-Circuit Earth Leakage Detector GEL-A1S / GEL-A1T

Kyongbo Electric Single-Circuit Earth Leakage Detector GEL-A1S / GEL-A1T

This static semiconductor earth leakage detector senses leakage current through a ZCT on lines up to 600 V and warns the manager of the protected facility.

Key features

  • Single circuit
  • Sensitivity 0.2, 0.5, 1.0 A (3-step)
  • Buzzer 70 dB/m or more
  • Manual reset

Specifications

Circuits 1
Rated Voltage AC 110/220 V
Rated Frequency 60 Hz (50 Hz option)
Line Voltage AC 600 V
Contact Capacity 10 A at AC 120 V, 10 A at DC 24 V
Weight approx. 0.5 kg
GEL-A1S Structure: Socket type | Fuse: 0.25 A x 2 | Panel Cutout: 56 x 94 mm | Front Size: 54 x 92 mm
GEL-A1T Structure: Flush mounted type | Fuse: 0.25 A x 1 | Panel Cutout: 56 x 94 mm | Front Size: 62 x 100 mm
Earth Leakage RelaysKyongbo Electric
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Single-Circuit Earth Leakage Detector GEL-A1S / GEL-A1T

Brand Kyongbo Electric·Earth Leakage Relays

Available part numbers (2)

GEL-A1S, GEL-A1T

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GEL-A1SStructure: Socket type | Fuse: 0.25 A x 2 | Panel Cutout: 56 x 94 mm | Front Size: 54 x 92 mm
GEL-A1TStructure: Flush mounted type | Fuse: 0.25 A x 1 | Panel Cutout: 56 x 94 mm | Front Size: 62 x 100 mm
