Kyongbo Electric Standard Current Transformer CTS Series

Kyongbo Electric Standard Current Transformer CTS Series

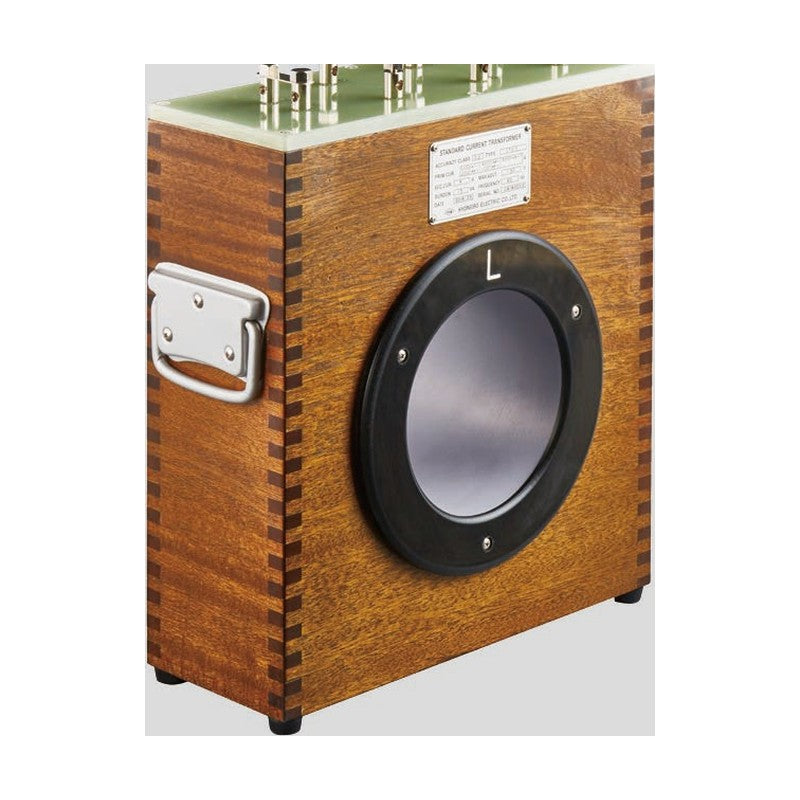

Indoor single-phase standard (reference) current transformer of accuracy class 0.2 in a wooden case, to KS C 1706.

Key features

  • For standard (reference) use
  • Indoor use
  • Single phase
  • Accuracy class 0.2 (0.1 on request)
  • Other current ratios available on request

Specifications

Standard KS C 1706
Secondary Current 5 A or 1 A
Rated Burden 15 VA
Accuracy Class 0.2
Rated Frequency 60 Hz (others on request)
CTS1 Max. Voltage: 1.15 kV | Primary Current: 5~2000 A | Insulation Level: 1.15/4 kV | Standard Primary Currents: 2000(1T), 1500(1T), 1200(2T), 750(2T), 600(4T), 500(4T), 400(4T), 300(5T), 250(6T), 200(8T), 150(10T) A through type; 100, 75, 50, 40, 30, 20, 15, 10, 5 A binding post type | Dimensions: 300 x 320 x 140 mm, window dia. 78 mm | Weight: approx. 15 kg
CTS2 Max. Voltage: 1.15 kV | Primary Current: 0.5~100 A | Insulation Level: 1.15/4 kV | Standard Primary Currents: 100, 75, 50, 25, 15, 10, 5, 2.5, 1, 0.5 A or 120, 75, 60, 40, 30, 24, 15, 12, 6, 3 A binding post type | Dimensions: 240 x 220 x 270 mm | Weight: approx. 20 kg
CTS3 Max. Voltage: 1.15 kV | Primary Current: 1000~5000 A | Insulation Level: 1.15/4 kV | Standard Primary Currents: 5000(1T), 4000(1T), 3000(1T), 2000(1T), 1000(1T) A through type | Dimensions: 370 x 390 x 155 mm, window dia. 150 mm | Weight: approx. 15 kg
CTS4 Max. Voltage: 7.2 kV | Primary Current: 5~1500 A | Insulation Level: 7.2/16 kV | Standard Primary Currents: 1500(1T), 750(2T), 500(3T), 300(4T), 250(6T) A through type; 150, 100, 50, 30, 15, 10, 5 A binding post type | Dimensions: 300 x 320 x 140 mm, window dia. 78 mm | Weight: approx. 14 kg
Current TransformersKyongbo Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Standard Current Transformer CTS Series

Brand Kyongbo Electric·Current Transformers

Available part numbers (4)

CTS1, CTS2, CTS3, CTS4

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CTS1Max. Voltage: 1.15 kV | Primary Current: 5~2000 A | Insulation Level: 1.15/4 kV | Standard Primary Currents: 2000(1T), 1500(1T), 1200(2T), 750(2T), 600(4T), 500(4T), 400(4T), 300(5T), 250(6T), 200(8T), 150(10T) A through type; 100, 75, 50, 40, 30, 20, 15, 10, 5 A binding post type | Dimensions: 300 x 320 x 140 mm, window dia. 78 mm | Weight: approx. 15 kg
CTS2Max. Voltage: 1.15 kV | Primary Current: 0.5~100 A | Insulation Level: 1.15/4 kV | Standard Primary Currents: 100, 75, 50, 25, 15, 10, 5, 2.5, 1, 0.5 A or 120, 75, 60, 40, 30, 24, 15, 12, 6, 3 A binding post type | Dimensions: 240 x 220 x 270 mm | Weight: approx. 20 kg
CTS3Max. Voltage: 1.15 kV | Primary Current: 1000~5000 A | Insulation Level: 1.15/4 kV | Standard Primary Currents: 5000(1T), 4000(1T), 3000(1T), 2000(1T), 1000(1T) A through type | Dimensions: 370 x 390 x 155 mm, window dia. 150 mm | Weight: approx. 15 kg
CTS4Max. Voltage: 7.2 kV | Primary Current: 5~1500 A | Insulation Level: 7.2/16 kV | Standard Primary Currents: 1500(1T), 750(2T), 500(3T), 300(4T), 250(6T) A through type; 150, 100, 50, 30, 15, 10, 5 A binding post type | Dimensions: 300 x 320 x 140 mm, window dia. 78 mm | Weight: approx. 14 kg
