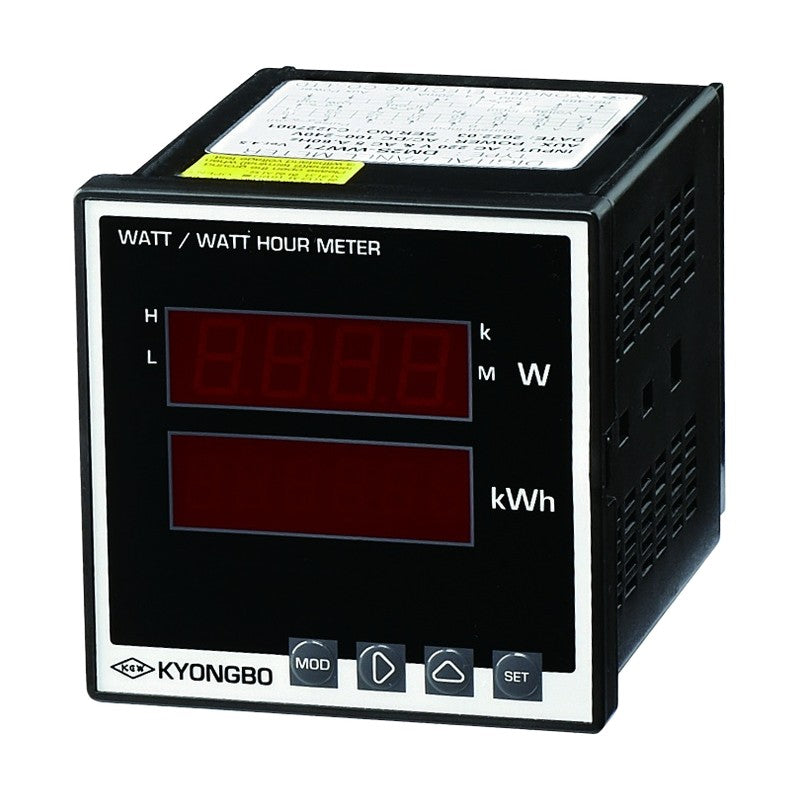

Kyongbo Electric Watt/Watt-hour Meter and var/var-hour Meter DM2S

96 x 96 mm digital meter that measures and displays both power (W or var) and energy (Wh or varh).

Key features

Measures VT and CT primary-side values directly
Watt-hour value RESET function
Wide auxiliary power range
DC 4-20 mA, relay, pulse and RS-485 outputs
Stores measured values at power failure

Specifications

Input	AC current / voltage (3 elements)
Wire Connection	1P2W, 1P3W, 3P3W, 3P4W
Accuracy	+/-1.0% FS +/-2 digit
Aux. Power	AC/DC 100-240 V (free voltage)
Max. Indicating	9999 / 999999
Display	0.56 / 0.4 inch 7-segment LED
Size (WxHxD)	96 x 96 x 115 mm
Weight	approx. 800 g
Outputs	DC 4-20 mA, relay 5 A at AC 250 V / DC 30 V, RS-485 Modbus RTU 9600 bps, pulse 80 ms

DM2S-WW71		Item: Watt/Watt-hour meter \| Measuring Function: Watt / Watt-hour
DM2S-RR71		Item: var/var-hour meter \| Measuring Function: var / var-hour

Digital Panel MetersKyongbo Electric

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Watt/Watt-hour Meter and var/var-hour Meter DM2S

Brand Kyongbo Electric·Digital Panel Meters

Available part numbers (2)

DM2S-WW71, DM2S-RR71
