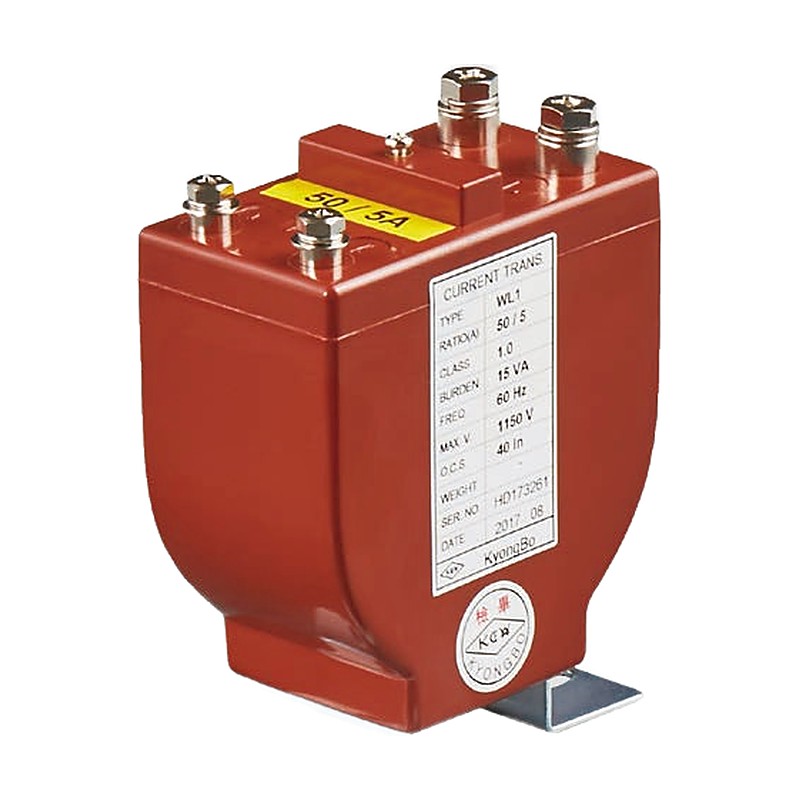

Kyongbo Electric Winding Type Current Transformer 1.15 kV WL / WLD Series

Kyongbo Electric Winding Type Current Transformer 1.15 kV WL / WLD Series

Indoor winding-type metering current transformer for 1.15 kV circuits, epoxy molded, in single and double ratio versions.

Key features

  • For metering service
  • Indoor use
  • Winding type
  • Epoxy molded insulation
  • Single ratio (WL) and double ratio (WLD) versions

Specifications

Application Standard KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Secondary Current 1 or 5 A
Accuracy Class 1.0
Service Metering
WL1 Primary Current: 5-50 A | Burden: 5-40 VA | Weight: approx. 1.2 kg | Ratio: Single ratio
WL2 Primary Current: B: 40-150 A, C: 200-300 A, D: 400-500 A | Burden: 5-15 VA | Weight: approx. 1 kg | Ratio: Single ratio
WL3 Primary Current: B: 40-150 A, C: 100-300 A, D: 400-500 A | Burden: 40 VA | Weight: approx. 1.2 kg | Ratio: Single ratio
WLD1 Primary Current: 10-50 / 5-25 A | Burden: 5-15 VA | Weight: approx. 1.2 kg | Ratio: Double ratio
WLD2 Primary Current: B: 40-150 / 20-75 A, C: 200-300 / 100-150 A, D: 400-500 / 200-250 A | Burden: 5 VA | Weight: approx. 1 kg | Ratio: Double ratio
WLD3 Primary Current: B: 40-150 / 20-75 A, C: 200-300 / 100-150 A, D: 400-500 / 200-250 A | Burden: 15 VA | Weight: approx. 1.2-1.5 kg | Ratio: Double ratio
Current TransformersKyongbo Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Winding Type Current Transformer 1.15 kV WL / WLD Series

Brand Kyongbo Electric·Current Transformers

Available part numbers (6)

WL1, WL2, WL3, WLD1, WLD2, WLD3

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WL1Primary Current: 5-50 A | Burden: 5-40 VA | Weight: approx. 1.2 kg | Ratio: Single ratio
WL2Primary Current: B: 40-150 A, C: 200-300 A, D: 400-500 A | Burden: 5-15 VA | Weight: approx. 1 kg | Ratio: Single ratio
WL3Primary Current: B: 40-150 A, C: 100-300 A, D: 400-500 A | Burden: 40 VA | Weight: approx. 1.2 kg | Ratio: Single ratio
WLD1Primary Current: 10-50 / 5-25 A | Burden: 5-15 VA | Weight: approx. 1.2 kg | Ratio: Double ratio
WLD2Primary Current: B: 40-150 / 20-75 A, C: 200-300 / 100-150 A, D: 400-500 / 200-250 A | Burden: 5 VA | Weight: approx. 1 kg | Ratio: Double ratio
WLD3Primary Current: B: 40-150 / 20-75 A, C: 200-300 / 100-150 A, D: 400-500 / 200-250 A | Burden: 15 VA | Weight: approx. 1.2-1.5 kg | Ratio: Double ratio
