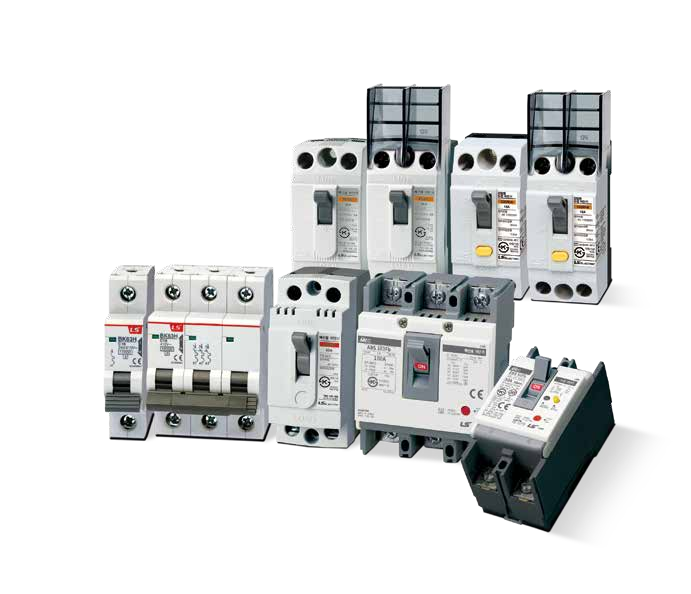

• LS Electric 32GRh-N Beyond X Industrial Distribution Panel MCB/RCBO (N-type RCBO (high-h variant), 30AF RCBO, 1.5kA @ 220V AC / 1.5kA @ 230V AC, 15, 30mA, 15~30A)
1 1

LS Electric 32GRh-N Beyond X Industrial Distribution Panel MCB/RCBO (N-type RCBO (high-h variant), 30AF RCBO, 1.5kA @ 220V AC / 1.5kA @ 230V AC, 15, 30mA, 15~30A)

LS Electric 32GRh-N Beyond X Industrial Distribution Panel MCB/RCBO (N-type RCBO (high-h variant), 30AF RCBO, 1.5kA @ 220V AC / 1.5kA @ 230V AC, 15, 30mA, 15~30A)

LS ELECTRIC Beyond X Industrial Distribution Panel MCB/RCBO 32GRh-N family. | Application: Industrial distribution panel (RCBO). | Frame: 30AF | Type: N-type RCBO (high-h variant) | Trip method: Thermal-Magnetic + RCD | Trip curve: Thermal-Magnetic standard | Breaking capacity Icn: 1.5kA @ 220V AC / 1.5kA @ 230V AC | Ics: 100% Icn | Sensitivity (I△n): 15, 30mA | Rated current (In): 15A, 20A, 30A | Pole: 2P | Mounting: Screw or DIN rail | Uimp: 4kV | Voltage: AC 110/220/230V | Standard: KS 4613 / — | 3 variants — see RFQ table for specific MPN.

Specifications

Frame 30AF
Type N-type RCBO (high-h variant)
Pole 2P
Breaking capacity Icn 1.5kA @ 220V AC / 1.5kA @ 230V AC
Ics 100% Icn
Trip method Thermal-Magnetic + RCD
Trip curve Thermal-Magnetic standard
Sensitivity (I△n) 15, 30mA
Uimp 4kV
Mounting Screw or DIN rail
Voltage AC 110/220/230V
Standard KS 4613 / —
32GRhN/15/15, 30 GR 32GRh-N — 32GRhN 15A 2P (RCBO) | Frame: 30AF | Type: N-type RCBO (high-h variant) | Rated current (In): 15A | Pole: 2P | Breaking capacity Icn: 1.5kA @ 220V AC / 1.5kA @ 230V AC | Ics: 100% Icn | Trip method: Thermal-Magnetic + RCD | Trip curve: Thermal-Magnetic standard | Sensitivity (I△n): 15, 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220/230V | Standard: KS 4613 / — | Application: Industrial distribution panel (RCBO)
32GRhN/20/15, 30 GR 32GRh-N — 32GRhN 20A 2P (RCBO) | Frame: 30AF | Type: N-type RCBO (high-h variant) | Rated current (In): 20A | Pole: 2P | Breaking capacity Icn: 1.5kA @ 220V AC / 1.5kA @ 230V AC | Ics: 100% Icn | Trip method: Thermal-Magnetic + RCD | Trip curve: Thermal-Magnetic standard | Sensitivity (I△n): 15, 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220/230V | Standard: KS 4613 / — | Application: Industrial distribution panel (RCBO)
32GRhN/30/15, 30 GR 32GRh-N — 32GRhN 30A 2P (RCBO) | Frame: 30AF | Type: N-type RCBO (high-h variant) | Rated current (In): 30A | Pole: 2P | Breaking capacity Icn: 1.5kA @ 220V AC / 1.5kA @ 230V AC | Ics: 100% Icn | Trip method: Thermal-Magnetic + RCD | Trip curve: Thermal-Magnetic standard | Sensitivity (I△n): 15, 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220/230V | Standard: KS 4613 / — | Application: Industrial distribution panel (RCBO)
Miniature Circuit BreakersLS Electric
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric 32GRh-N Beyond X Industrial Distribution Panel MCB/RCBO (N-type RCBO (high-h variant), 30AF RCBO, 1.5kA @ 220V AC / 1.5kA @ 230V AC, 15, 30mA, 15~30A)

Brand LS Electric·Miniature Circuit Breakers

Available part numbers (3)

32GRhN/15/15, 30, 32GRhN/20/15, 30, 32GRhN/30/15, 30

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
32GRhN/15/15, 30GR 32GRh-N — 32GRhN 15A 2P (RCBO) | Frame: 30AF | Type: N-type RCBO (high-h variant) | Rated current (In): 15A | Pole: 2P | Breaking capacity Icn: 1.5kA @ 220V AC / 1.5kA @ 230V AC | Ics: 100% Icn | Trip method: Thermal-Magnetic + RCD | Trip curve: Thermal-Magnetic standard | Sensitivity (I△n): 15, 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220/230V | Standard: KS 4613 / — | Application: Industrial distribution panel (RCBO)
32GRhN/20/15, 30GR 32GRh-N — 32GRhN 20A 2P (RCBO) | Frame: 30AF | Type: N-type RCBO (high-h variant) | Rated current (In): 20A | Pole: 2P | Breaking capacity Icn: 1.5kA @ 220V AC / 1.5kA @ 230V AC | Ics: 100% Icn | Trip method: Thermal-Magnetic + RCD | Trip curve: Thermal-Magnetic standard | Sensitivity (I△n): 15, 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220/230V | Standard: KS 4613 / — | Application: Industrial distribution panel (RCBO)
32GRhN/30/15, 30GR 32GRh-N — 32GRhN 30A 2P (RCBO) | Frame: 30AF | Type: N-type RCBO (high-h variant) | Rated current (In): 30A | Pole: 2P | Breaking capacity Icn: 1.5kA @ 220V AC / 1.5kA @ 230V AC | Ics: 100% Icn | Trip method: Thermal-Magnetic + RCD | Trip curve: Thermal-Magnetic standard | Sensitivity (I△n): 15, 30mA | Uimp: 4kV | Mounting: Screw or DIN rail | Voltage: AC 110/220/230V | Standard: KS 4613 / — | Application: Industrial distribution panel (RCBO)
