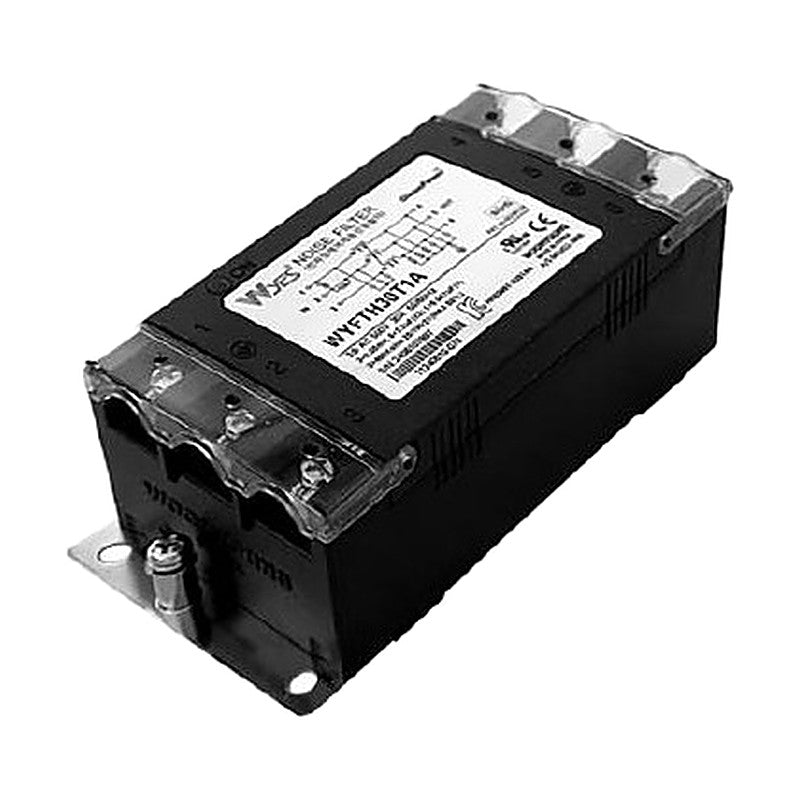

Woonyoung WYFTH-T1A/T2A Series Three-Phase General-Purpose Noise Filter, 500 VAC

Woonyoung WYFTH-T1A/T2A Series Three-Phase General-Purpose Noise Filter, 500 VAC

General-purpose three-phase noise filter for 500 VAC systems from 5 A to 1200 A, in general (A) and inverter-output (C) versions.

Key features

  • General (A) and inverter output (C) versions
  • Plastic case 5-30 A (DIN-rail option, UL recognized); steel case or bus-bar type 40-1200 A
  • Rated 5 A to 1200 A at 500 VAC
  • RoHS compliant

Specifications

Phase Three phase
Rated voltage 500 VAC
Frequency 50/60 Hz
Dielectric withstand 2500 VAC or 2800 VDC for 1 min (line-case)
Insulation resistance 100 MOhm at 500 VDC (5-30 A); 500 MOhm (40 A and up, 300 MOhm for 300-400 A)
Leakage current <= 4.0 mA (5-30 A); 18 mA (40-1200 A)
Operating temperature -25 to +100 C (derating curve type 2)
Operating humidity 35-85% RH
WYFTH05T1A Rated current: 5 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFTH05T1C Rated current: 5 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFTH10T1A Rated current: 10 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFTH10T1C Rated current: 10 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFTH15T1A Rated current: 15 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFTH15T1C Rated current: 15 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFTH20T1A Rated current: 20 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFTH20T1C Rated current: 20 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFTH30T1A Rated current: 30 A | Safety standards: KC, CE, cURus | Version: General (A) | Case: Plastic
WYFTH30T1C Rated current: 30 A | Safety standards: KC, CE, cURus | Version: Inverter output (C) | Case: Plastic
WYFTH40T2A Rated current: 40 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFTH40T2C Rated current: 40 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFTH50T2A Rated current: 50 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFTH50T2C Rated current: 50 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFTH60T2A Rated current: 60 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFTH60T2C Rated current: 60 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFTH80T2A Rated current: 80 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFTH80T2C Rated current: 80 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFTH100T2A Rated current: 100 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFTH100T2C Rated current: 100 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
WYFTH120T2A Rated current: 120 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH120T2C Rated current: 120 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH150T2A Rated current: 150 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH150T2C Rated current: 150 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH200T2A Rated current: 200 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH200T2C Rated current: 200 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH250T2A Rated current: 250 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH250T2C Rated current: 250 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH300T2A Rated current: 300 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH300T2C Rated current: 300 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH400T2A Rated current: 400 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH400T2C Rated current: 400 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH500T2A Rated current: 500 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH500T2C Rated current: 500 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH600T2A Rated current: 600 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH600T2C Rated current: 600 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH800T2A Rated current: 800 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH800T2C Rated current: 800 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH1000T2A Rated current: 1000 A | Safety standards: KC, CE | Version: General (A) | Case: Steel
WYFTH1000T2C Rated current: 1000 A | Safety standards: KC, CE | Version: Inverter output (C) | Case: Steel
WYFTH1200T2A Rated current: 1200 A | Safety standards: CE | Version: General (A) | Case: Steel
WYFTH1200T2C Rated current: 1200 A | Safety standards: CE | Version: Inverter output (C) | Case: Steel
