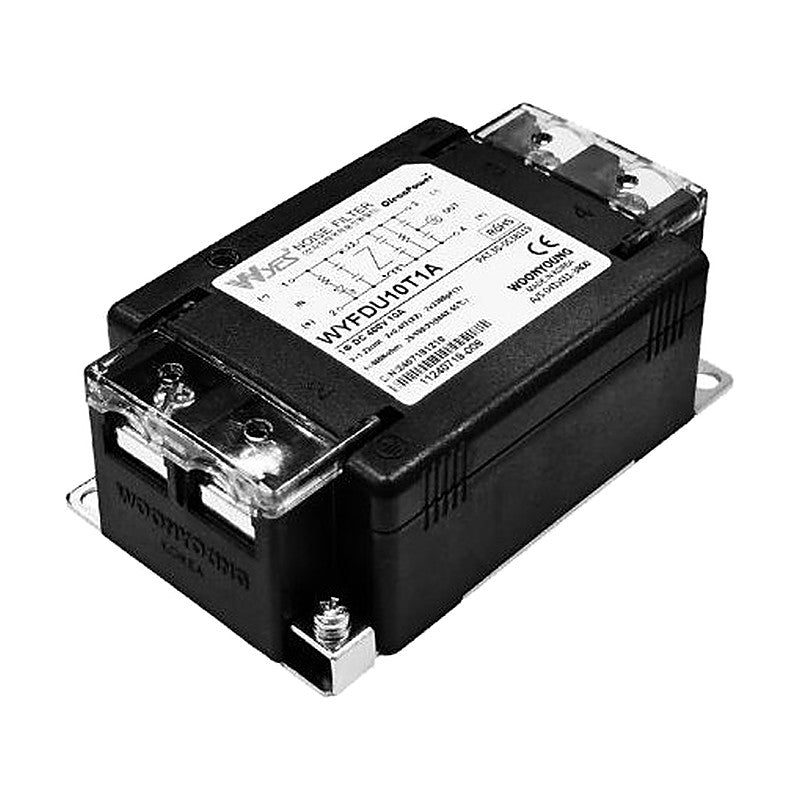

Woonyoung WYFDU-T1A Series DC Noise Filter, 150-400 VDC

Woonyoung WYFDU-T1A Series DC Noise Filter, 150-400 VDC

General-purpose DC power-line noise filter for 150-400 VDC circuits, rated 6 A to 30 A.

Key features

  • Filters noise on DC power lines
  • Plastic case with terminal block
  • DIN-rail version available (D suffix)
  • Rated 6 A to 30 A
  • CE marked; RoHS compliant

Specifications

Rated voltage 150-400 VDC
Dielectric withstand 2500 VAC or 2800 VDC for 1 min (line-case)
Insulation resistance 100 MOhm at 500 VDC
Leakage current <= 0.8 mA (as printed)
Operating temperature -25 to +100 C (derating curve type 1)
Operating humidity 35-85% RH
Weight 0.3 kg
Mounting Screw; DIN rail with (D) suffix
Safety standards CE
WYFDU06T1A Rated current: 6 A | Safety standards: CE
WYFDU10T1A Rated current: 10 A | Safety standards: CE
WYFDU15T1A Rated current: 15 A | Safety standards: CE
WYFDU20T1A Rated current: 20 A | Safety standards: CE
WYFDU30T1A Rated current: 30 A | Safety standards: CE
Noise FiltersWoonyoung
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFDU-T1A Series DC Noise Filter, 150-400 VDC

Brand Woonyoung·Noise Filters

Available part numbers (5)

WYFDU06T1A, WYFDU10T1A, WYFDU15T1A, WYFDU20T1A, WYFDU30T1A

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFDU06T1ARated current: 6 A | Safety standards: CE
WYFDU10T1ARated current: 10 A | Safety standards: CE
WYFDU15T1ARated current: 15 A | Safety standards: CE
WYFDU20T1ARated current: 20 A | Safety standards: CE
WYFDU30T1ARated current: 30 A | Safety standards: CE
