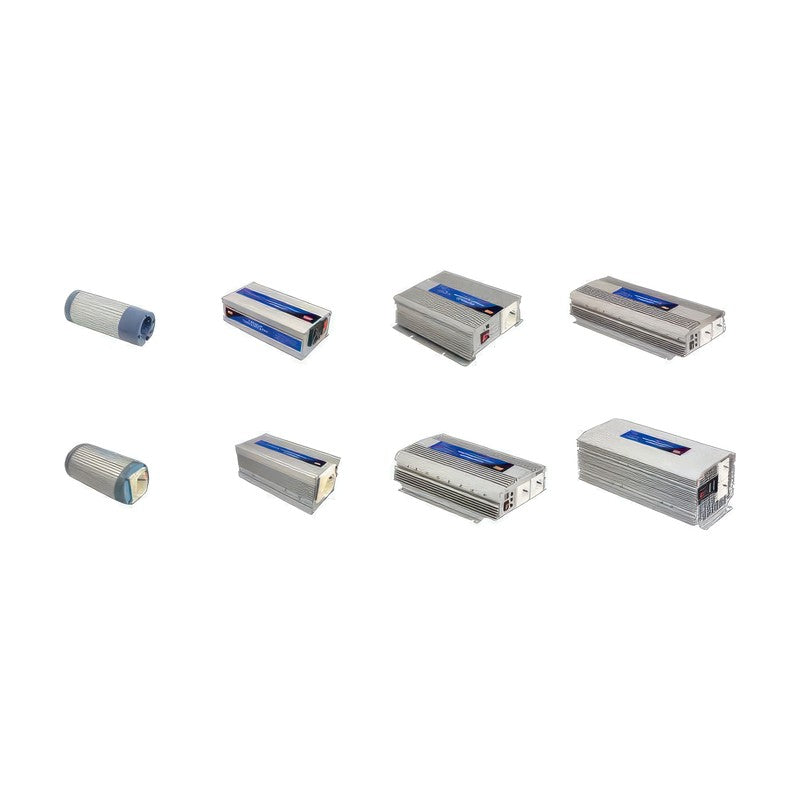

MEAN WELL A301/A302 Modified Sine Wave DC-AC Inverter (100-2500W)

MEAN WELL A301/A302 Modified Sine Wave DC-AC Inverter (100-2500W)

The A301 (12Vdc input) and A302 (24Vdc input) series are 100-2500W modified sine wave portable DC-AC inverters.

A301-100F3 Continuous power: 100W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: No | Dimensions: 170 mm x 65 mm dia.
A302-100F3 Continuous power: 100W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: No | Dimensions: 170 mm x 65 mm dia.
A301-150-B2 Continuous power: 150W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: No | Dimensions: 122x73x45 mm (110Vac) / 165x94x69 mm
A301-150-F3 Continuous power: 150W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: No | Dimensions: 122x73x45 mm (110Vac) / 165x94x69 mm
A302-150-B2 Continuous power: 150W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: No | Dimensions: 122x73x45 mm (110Vac) / 165x94x69 mm
A302-150-F3 Continuous power: 150W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: No | Dimensions: 122x73x45 mm (110Vac) / 165x94x69 mm
A301-300-B2 Continuous power: 300W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 165x88x74 mm
A301-300-F3 Continuous power: 300W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 165x88x74 mm
A302-300-B2 Continuous power: 300W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 165x88x74 mm
A302-300-F3 Continuous power: 300W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 165x88x74 mm
A301-600-B2 Continuous power: 600W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 210x173x65 mm
A301-600-F3 Continuous power: 600W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 210x173x65 mm
A302-600-B2 Continuous power: 600W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 210x173x65 mm
A302-600-F3 Continuous power: 600W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 210x173x65 mm
A301-1K0-B2 Continuous power: 1000W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 320x210x85 mm
A301-1K0-F3 Continuous power: 1000W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 320x210x85 mm
A302-1K0-B2 Continuous power: 1000W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 320x210x85 mm
A302-1K0-F3 Continuous power: 1000W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 320x210x85 mm
A301-1K7-B2 Continuous power: 1700W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 455x210x85 mm
A301-1K7-F3 Continuous power: 1700W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 455x210x85 mm
A302-1K7-B2 Continuous power: 1700W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 455x210x85 mm
A302-1K7-F3 Continuous power: 1700W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 455x210x85 mm
A301-2K5-B4 Continuous power: 2500W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 430x210x159 mm
A301-2K5-F3 Continuous power: 2500W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 430x210x159 mm
A302-2K5-B4 Continuous power: 2500W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 430x210x159 mm
A302-2K5-F3 Continuous power: 2500W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 430x210x159 mm
DC-AC InvertersMEAN WELL
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL A301/A302 Modified Sine Wave DC-AC Inverter (100-2500W)

Brand MEAN WELL·DC-AC Inverters

Available part numbers (26)

A301-100F3, A302-100F3, A301-150-B2, A301-150-F3, A302-150-B2, A302-150-F3, A301-300-B2, A301-300-F3, A302-300-B2, A302-300-F3 + 16 more — see full table ↓

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A301-100F3Continuous power: 100W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: No | Dimensions: 170 mm x 65 mm dia.
A302-100F3Continuous power: 100W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: No | Dimensions: 170 mm x 65 mm dia.
A301-150-B2Continuous power: 150W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: No | Dimensions: 122x73x45 mm (110Vac) / 165x94x69 mm
A301-150-F3Continuous power: 150W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: No | Dimensions: 122x73x45 mm (110Vac) / 165x94x69 mm
A302-150-B2Continuous power: 150W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: No | Dimensions: 122x73x45 mm (110Vac) / 165x94x69 mm
A302-150-F3Continuous power: 150W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: No | Dimensions: 122x73x45 mm (110Vac) / 165x94x69 mm
A301-300-B2Continuous power: 300W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 165x88x74 mm
A301-300-F3Continuous power: 300W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 165x88x74 mm
A302-300-B2Continuous power: 300W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 165x88x74 mm
A302-300-F3Continuous power: 300W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 165x88x74 mm
A301-600-B2Continuous power: 600W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 210x173x65 mm
A301-600-F3Continuous power: 600W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 210x173x65 mm
A302-600-B2Continuous power: 600W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 210x173x65 mm
A302-600-F3Continuous power: 600W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 210x173x65 mm
A301-1K0-B2Continuous power: 1000W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 320x210x85 mm
A301-1K0-F3Continuous power: 1000W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 320x210x85 mm
A302-1K0-B2Continuous power: 1000W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 320x210x85 mm
A302-1K0-F3Continuous power: 1000W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 320x210x85 mm
A301-1K7-B2Continuous power: 1700W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 455x210x85 mm
A301-1K7-F3Continuous power: 1700W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 455x210x85 mm
A302-1K7-B2Continuous power: 1700W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 455x210x85 mm
A302-1K7-F3Continuous power: 1700W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 455x210x85 mm
A301-2K5-B4Continuous power: 2500W | Input: 10~15Vdc (12V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 430x210x159 mm
A301-2K5-F3Continuous power: 2500W | Input: 10~15Vdc (12V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 430x210x159 mm
A302-2K5-B4Continuous power: 2500W | Input: 21~30Vdc (24V) | AC output: 110Vac 60Hz | Built-in fan: Yes | Dimensions: 430x210x159 mm
A302-2K5-F3Continuous power: 2500W | Input: 21~30Vdc (24V) | AC output: 230Vac 50Hz | Built-in fan: Yes | Dimensions: 430x210x159 mm
