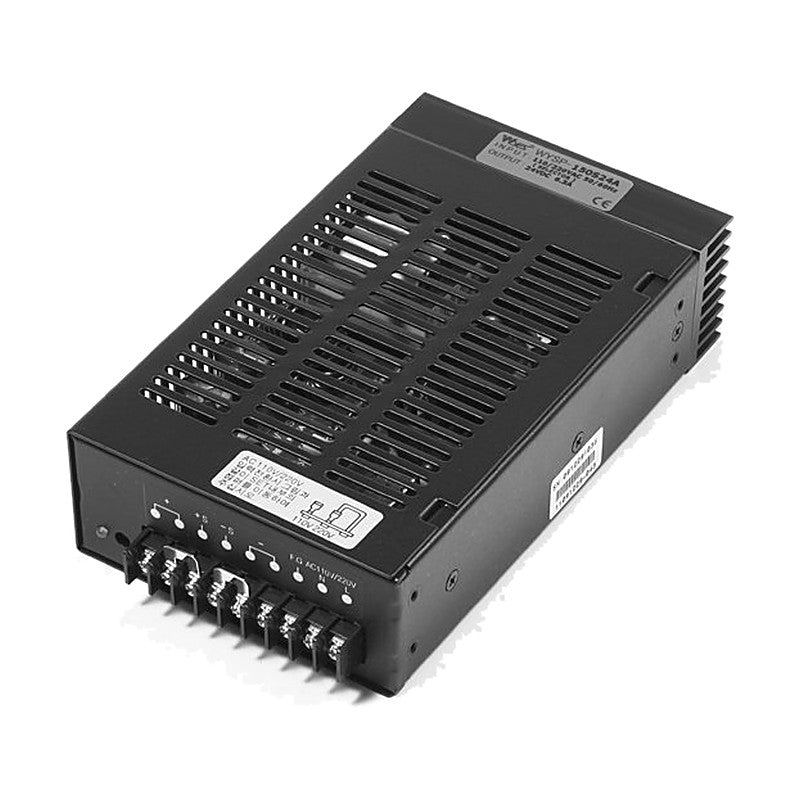

• Woonyoung SP Series WYSP-200S24AD DC-DC Converter, 200 W, 24 V Output
1 1

Woonyoung SP Series WYSP-200S24AD DC-DC Converter, 200 W, 24 V Output

Woonyoung SP Series WYSP-200S24AD DC-DC Converter, 200 W, 24 V Output

Enclosed 200 W DC-DC converter that converts DC 90-130 V input into a regulated 24 V DC output.

Key features

  • DC input range 90-130 V
  • Built-in inrush current limiter
  • Over current, over voltage and short circuit protection
  • Remote sensing function

Specifications

Input voltage DC 90-130 V (110 V DC, 3.7 A at full load)
Output voltage 24 V DC
Output current 8.4 A
Efficiency 78% typ
Cooling Natural cooling
Operating temperature 0 to +50 °C
Weight 1.0 kg
WYSP-200S24AD Output power: 200 W | Output voltage: 24 V DC | Output current: 8.4 A | Input voltage: DC 90-130 V | Efficiency: 78% typ | Weight: 1.0 kg
DC-DC ConvertersWoonyoung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung SP Series WYSP-200S24AD DC-DC Converter, 200 W, 24 V Output

Brand Woonyoung·DC-DC Converters

Available part numbers (1)

WYSP-200S24AD

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSP-200S24ADOutput power: 200 W | Output voltage: 24 V DC | Output current: 8.4 A | Input voltage: DC 90-130 V | Efficiency: 78% typ | Weight: 1.0 kg
