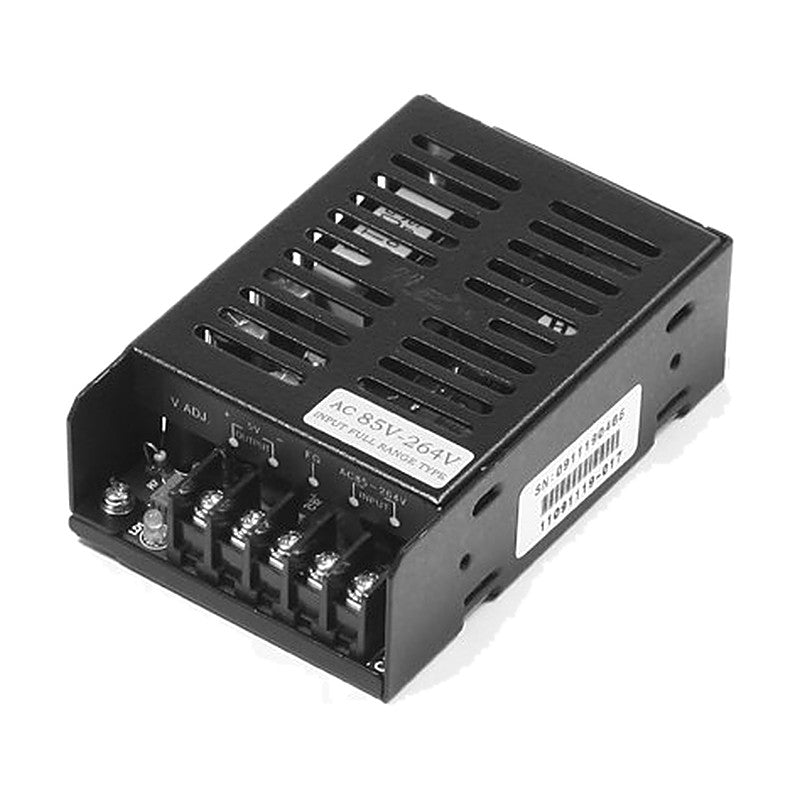

Woonyoung SP Series B Type Enclosed Switching Power Supply, 1-Output, 15-75 W

Woonyoung SP Series B Type Enclosed Switching Power Supply, 1-Output, 15-75 W

Compact enclosed AC-DC switching power supply with straight terminal block, providing a single regulated DC output from 15 W to 75 W.

Key features

  • AC input range 90-264 V (free voltage)
  • Built-in inrush current limiter
  • Over current, short circuit and over temperature protection with auto restart
  • Over voltage protection on 75 W models
  • Wide choice of 5, 9, 12, 15, 24 and 48 V outputs

Specifications

Output type Single output
Input voltage AC 90-264 V, 50/60 Hz
Mounting Chassis mount
Cooling Natural cooling
Operating temperature 0 to +50 °C
Withstand voltage (input-output) AC 1,500 V 1 min
Hold-up time 15 ms typ
Safety marks CE, RoHS
WYSP-15S05B Output power: 15 W | Output voltage: 5 V DC | Output current: 3.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYSP-15S09B Output power: 15 W | Output voltage: 9 V DC | Output current: 1.7 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYSP-15S12B Output power: 15 W | Output voltage: 12 V DC | Output current: 1.3 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYSP-15S15B Output power: 15 W | Output voltage: 15 V DC | Output current: 1.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYSP-15S24B Output power: 15 W | Output voltage: 24 V DC | Output current: 0.7 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYSP-15S48B Output power: 15 W | Output voltage: 48 V DC | Output current: 0.3 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYSP-30S05B Output power: 30 W | Output voltage: 5 V DC | Output current: 6.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYSP-30S09B Output power: 30 W | Output voltage: 9 V DC | Output current: 3.4 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYSP-30S12B Output power: 30 W | Output voltage: 12 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYSP-30S15B Output power: 30 W | Output voltage: 15 V DC | Output current: 2.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYSP-30S24B Output power: 30 W | Output voltage: 24 V DC | Output current: 1.3 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYSP-30S48B Output power: 30 W | Output voltage: 48 V DC | Output current: 0.6 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYSP-50S05B Output power: 50 W | Output voltage: 5 V DC | Output current: 10.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-50S09B Output power: 50 W | Output voltage: 9 V DC | Output current: 5.6 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-50S12B Output power: 50 W | Output voltage: 12 V DC | Output current: 4.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYSP-50S15B Output power: 50 W | Output voltage: 15 V DC | Output current: 3.4 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYSP-50S24B Output power: 50 W | Output voltage: 24 V DC | Output current: 2.1 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.4 kg
WYSP-50S48B Output power: 50 W | Output voltage: 48 V DC | Output current: 1.1 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.4 kg
WYSP-75S05B Output power: 75 W | Output voltage: 5 V DC | Output current: 12 (AC 110 V) / 15 (AC 220 V) A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-75S12B Output power: 75 W | Output voltage: 12 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-75S15B Output power: 75 W | Output voltage: 15 V DC | Output current: 5.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYSP-75S24B Output power: 75 W | Output voltage: 24 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.5 kg
WYSP-75S48B Output power: 75 W | Output voltage: 48 V DC | Output current: 1.6 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.5 kg
Switching Power SuppliesWoonyoung
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung SP Series B Type Enclosed Switching Power Supply, 1-Output, 15-75 W

Brand Woonyoung·Switching Power Supplies

Available part numbers (23)

WYSP-15S05B, WYSP-15S09B, WYSP-15S12B, WYSP-15S15B, WYSP-15S24B, WYSP-15S48B, WYSP-30S05B, WYSP-30S09B, WYSP-30S12B, WYSP-30S15B + 13 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSP-15S05BOutput power: 15 W | Output voltage: 5 V DC | Output current: 3.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYSP-15S09BOutput power: 15 W | Output voltage: 9 V DC | Output current: 1.7 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYSP-15S12BOutput power: 15 W | Output voltage: 12 V DC | Output current: 1.3 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYSP-15S15BOutput power: 15 W | Output voltage: 15 V DC | Output current: 1.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYSP-15S24BOutput power: 15 W | Output voltage: 24 V DC | Output current: 0.7 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYSP-15S48BOutput power: 15 W | Output voltage: 48 V DC | Output current: 0.3 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYSP-30S05BOutput power: 30 W | Output voltage: 5 V DC | Output current: 6.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYSP-30S09BOutput power: 30 W | Output voltage: 9 V DC | Output current: 3.4 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.3 kg
WYSP-30S12BOutput power: 30 W | Output voltage: 12 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYSP-30S15BOutput power: 30 W | Output voltage: 15 V DC | Output current: 2.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.3 kg
WYSP-30S24BOutput power: 30 W | Output voltage: 24 V DC | Output current: 1.3 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYSP-30S48BOutput power: 30 W | Output voltage: 48 V DC | Output current: 0.6 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.3 kg
WYSP-50S05BOutput power: 50 W | Output voltage: 5 V DC | Output current: 10.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-50S09BOutput power: 50 W | Output voltage: 9 V DC | Output current: 5.6 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-50S12BOutput power: 50 W | Output voltage: 12 V DC | Output current: 4.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYSP-50S15BOutput power: 50 W | Output voltage: 15 V DC | Output current: 3.4 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYSP-50S24BOutput power: 50 W | Output voltage: 24 V DC | Output current: 2.1 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.4 kg
WYSP-50S48BOutput power: 50 W | Output voltage: 48 V DC | Output current: 1.1 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.4 kg
WYSP-75S05BOutput power: 75 W | Output voltage: 5 V DC | Output current: 12 (AC 110 V) / 15 (AC 220 V) A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-75S12BOutput power: 75 W | Output voltage: 12 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-75S15BOutput power: 75 W | Output voltage: 15 V DC | Output current: 5.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYSP-75S24BOutput power: 75 W | Output voltage: 24 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.5 kg
WYSP-75S48BOutput power: 75 W | Output voltage: 48 V DC | Output current: 1.6 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.5 kg
