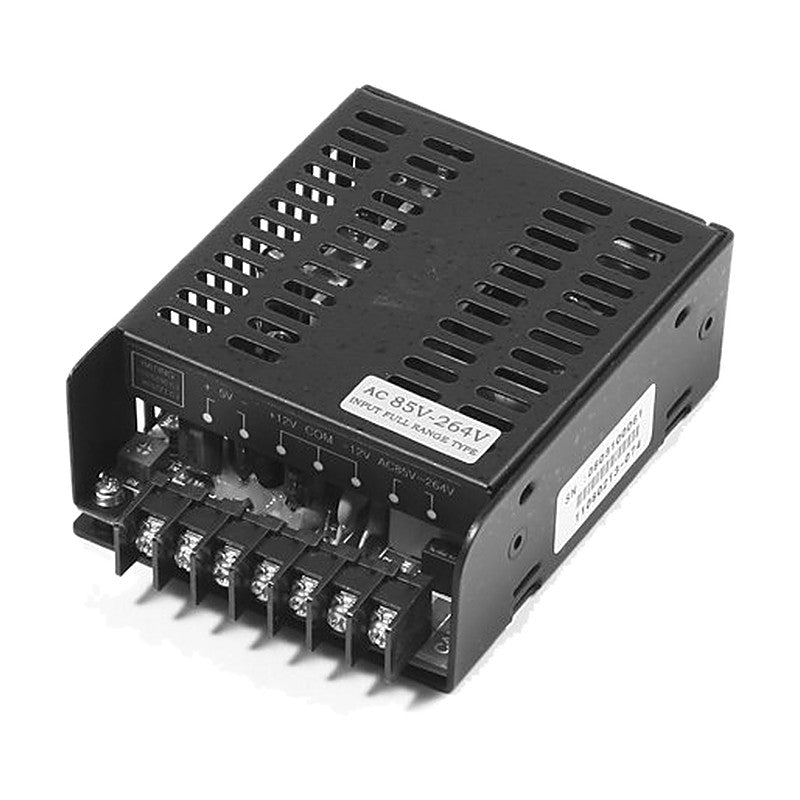

Woonyoung SP Series Triple Output Switching Power Supply, 3-Output, 15-50 W

Woonyoung SP Series Triple Output Switching Power Supply, 3-Output, 15-50 W

Enclosed AC-DC switching power supply with three DC outputs (+5 V and ±12 V or ±15 V), rated 15 W to 50 W.

Key features

  • Three outputs: +5 V, +12 V, -12 V or +5 V, +15 V, -15 V
  • AC input range 80-264 V
  • Built-in inrush current limiter
  • Over current, short circuit and over temperature protection with auto restart
  • A (right-angle terminal) and B (straight terminal) versions

Specifications

Output type Triple output (3 channels)
Input voltage AC 80-264 V, 50/60 Hz
Mounting Chassis mount
Cooling Natural cooling
Operating temperature 0 to +50 °C
Withstand voltage (input-output) AC 1,500 V 1 min
Safety marks CE, RoHS
WYSP-15T12A Output power: 15 W | Output voltage: 5 / 12 / -12 V DC | Output current: 2.0 / 0.3 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 60% typ | Weight: 0.3 kg
WYSP-15T12B Output power: 15 W | Output voltage: 5 / 12 / -12 V DC | Output current: 2.0 / 0.3 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 60% typ | Weight: 0.3 kg
WYSP-15T15A Output power: 15 W | Output voltage: 5 / 15 / -15 V DC | Output current: 2.0 / 0.3 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 60% typ | Weight: 0.3 kg
WYSP-15T15B Output power: 15 W | Output voltage: 5 / 15 / -15 V DC | Output current: 2.0 / 0.3 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 60% typ | Weight: 0.3 kg
WYSP-30T12A Output power: 30 W | Output voltage: 5 / 12 / -12 V DC | Output current: 3.0 / 1.0 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 65% typ | Weight: 0.4 kg
WYSP-30T12B Output power: 30 W | Output voltage: 5 / 12 / -12 V DC | Output current: 3.0 / 1.0 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 65% typ | Weight: 0.4 kg
WYSP-30T15A Output power: 30 W | Output voltage: 5 / 15 / -15 V DC | Output current: 3.0 / 0.8 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-30T15B Output power: 30 W | Output voltage: 5 / 15 / -15 V DC | Output current: 3.0 / 0.8 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-50T12A Output power: 50 W | Output voltage: 5 / 12 / -12 V DC | Output current: 5.0 / 1.8 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 65% typ | Weight: 0.5 kg
WYSP-50T12B Output power: 50 W | Output voltage: 5 / 12 / -12 V DC | Output current: 5.0 / 1.8 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 65% typ | Weight: 0.5 kg
WYSP-50T15A Output power: 50 W | Output voltage: 5 / 15 / -15 V DC | Output current: 3.0 / 1.4 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50T15B Output power: 50 W | Output voltage: 5 / 15 / -15 V DC | Output current: 3.0 / 1.4 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 70% typ | Weight: 0.5 kg
Switching Power SuppliesWoonyoung
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung SP Series Triple Output Switching Power Supply, 3-Output, 15-50 W

Brand Woonyoung·Switching Power Supplies

Available part numbers (12)

WYSP-15T12A, WYSP-15T12B, WYSP-15T15A, WYSP-15T15B, WYSP-30T12A, WYSP-30T12B, WYSP-30T15A, WYSP-30T15B, WYSP-50T12A, WYSP-50T12B + 2 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSP-15T12AOutput power: 15 W | Output voltage: 5 / 12 / -12 V DC | Output current: 2.0 / 0.3 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 60% typ | Weight: 0.3 kg
WYSP-15T12BOutput power: 15 W | Output voltage: 5 / 12 / -12 V DC | Output current: 2.0 / 0.3 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 60% typ | Weight: 0.3 kg
WYSP-15T15AOutput power: 15 W | Output voltage: 5 / 15 / -15 V DC | Output current: 2.0 / 0.3 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 60% typ | Weight: 0.3 kg
WYSP-15T15BOutput power: 15 W | Output voltage: 5 / 15 / -15 V DC | Output current: 2.0 / 0.3 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 60% typ | Weight: 0.3 kg
WYSP-30T12AOutput power: 30 W | Output voltage: 5 / 12 / -12 V DC | Output current: 3.0 / 1.0 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 65% typ | Weight: 0.4 kg
WYSP-30T12BOutput power: 30 W | Output voltage: 5 / 12 / -12 V DC | Output current: 3.0 / 1.0 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 65% typ | Weight: 0.4 kg
WYSP-30T15AOutput power: 30 W | Output voltage: 5 / 15 / -15 V DC | Output current: 3.0 / 0.8 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-30T15BOutput power: 30 W | Output voltage: 5 / 15 / -15 V DC | Output current: 3.0 / 0.8 / 0.2 A | Input voltage: AC 80-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-50T12AOutput power: 50 W | Output voltage: 5 / 12 / -12 V DC | Output current: 5.0 / 1.8 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 65% typ | Weight: 0.5 kg
WYSP-50T12BOutput power: 50 W | Output voltage: 5 / 12 / -12 V DC | Output current: 5.0 / 1.8 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 65% typ | Weight: 0.5 kg
WYSP-50T15AOutput power: 50 W | Output voltage: 5 / 15 / -15 V DC | Output current: 3.0 / 1.4 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50T15BOutput power: 50 W | Output voltage: 5 / 15 / -15 V DC | Output current: 3.0 / 1.4 / 0.3 A | Input voltage: AC 80-264 V | Efficiency: 70% typ | Weight: 0.5 kg
