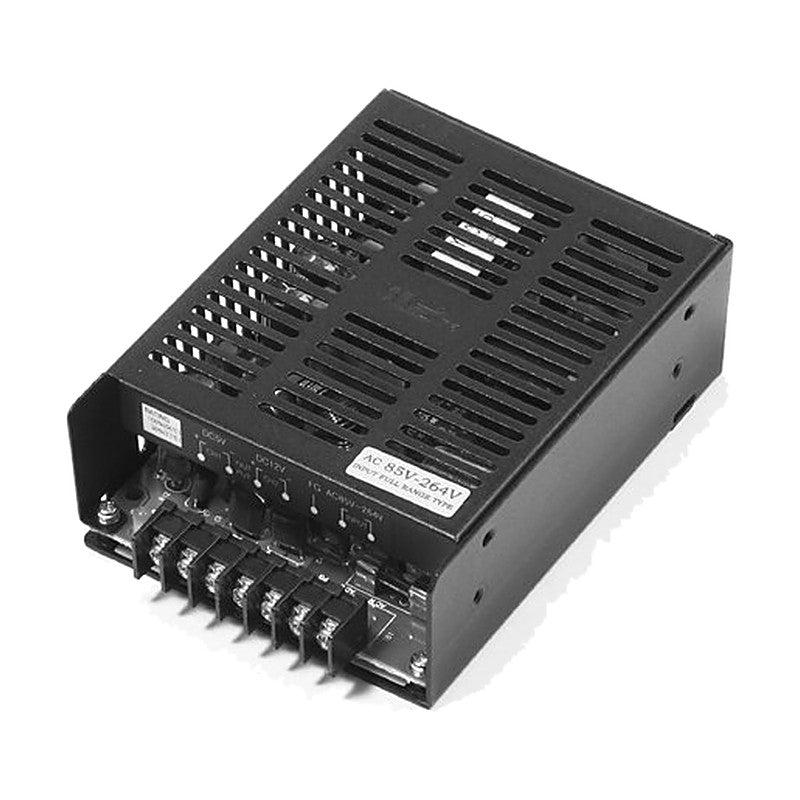

Woonyoung SP Series Dual Output Switching Power Supply, 2-Output, 15-75 W

Woonyoung SP Series Dual Output Switching Power Supply, 2-Output, 15-75 W

Enclosed AC-DC switching power supply with two isolated DC outputs in common voltage combinations, rated 15 W to 75 W.

Key features

  • Two outputs: 5/9, 5/12, 5/24, 12/12 or 15/15 V
  • AC input range 90-264 V
  • Built-in inrush current limiter
  • Over current, short circuit and over temperature protection with auto restart
  • A (right-angle terminal) and B (straight terminal) versions

Specifications

Output type Dual output (2 channels)
Input voltage AC 90-264 V, 50/60 Hz
Mounting Chassis mount
Cooling Natural cooling
Operating temperature 0 to +50 °C
Withstand voltage (input-output) AC 1,500 V 1 min
Safety marks CE, RoHS
WYSP-15D05A Output power: 15 W | Output voltage: 5 / 9 V DC | Output current: 2.0 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D05B Output power: 15 W | Output voltage: 5 / 9 V DC | Output current: 2.0 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D0512A Output power: 15 W | Output voltage: 5 / 12 V DC | Output current: 2.0 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D0512B Output power: 15 W | Output voltage: 5 / 12 V DC | Output current: 2.0 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D0524A Output power: 15 W | Output voltage: 5 / 24 V DC | Output current: 2.0 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D0524B Output power: 15 W | Output voltage: 5 / 24 V DC | Output current: 2.0 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D12A Output power: 15 W | Output voltage: 12 / 12 V DC | Output current: 0.7 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D12B Output power: 15 W | Output voltage: 12 / 12 V DC | Output current: 0.7 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D15A Output power: 15 W | Output voltage: 15 / 15 V DC | Output current: 0.5 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-15D15B Output power: 15 W | Output voltage: 15 / 15 V DC | Output current: 0.5 / 0.5 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.3 kg
WYSP-30D05A Output power: 30 W | Output voltage: 5 / 9 V DC | Output current: 3.0 / 1.6 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.4 kg
WYSP-30D05B Output power: 30 W | Output voltage: 5 / 9 V DC | Output current: 3.0 / 1.6 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.4 kg
WYSP-30D0512A Output power: 30 W | Output voltage: 5 / 12 V DC | Output current: 3.0 / 1.2 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-30D0512B Output power: 30 W | Output voltage: 5 / 12 V DC | Output current: 3.0 / 1.2 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-30D0524A Output power: 30 W | Output voltage: 5 / 24 V DC | Output current: 3.0 / 0.6 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYSP-30D0524B Output power: 30 W | Output voltage: 5 / 24 V DC | Output current: 3.0 / 0.6 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.4 kg
WYSP-30D12A Output power: 30 W | Output voltage: 12 / 12 V DC | Output current: 1.2 / 1.2 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.4 kg
WYSP-30D12B Output power: 30 W | Output voltage: 12 / 12 V DC | Output current: 1.2 / 1.2 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.4 kg
WYSP-30D15A Output power: 30 W | Output voltage: 15 / 15 V DC | Output current: 1.0 / 1.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-30D15B Output power: 30 W | Output voltage: 15 / 15 V DC | Output current: 1.0 / 1.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.4 kg
WYSP-50D05A Output power: 50 W | Output voltage: 5 / 9 V DC | Output current: 5.0 / 2.7 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.5 kg
WYSP-50D05B Output power: 50 W | Output voltage: 5 / 9 V DC | Output current: 5.0 / 2.7 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.5 kg
WYSP-50D0512A Output power: 50 W | Output voltage: 5 / 12 V DC | Output current: 3.0 / 3.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50D0512B Output power: 50 W | Output voltage: 5 / 12 V DC | Output current: 3.0 / 3.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50D0524A Output power: 50 W | Output voltage: 5 / 24 V DC | Output current: 3.0 / 1.5 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50D0524B Output power: 50 W | Output voltage: 5 / 24 V DC | Output current: 3.0 / 1.5 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50D12A Output power: 50 W | Output voltage: 12 / 12 V DC | Output current: 2.0 / 2.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50D12B Output power: 50 W | Output voltage: 12 / 12 V DC | Output current: 2.0 / 2.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50D15A Output power: 50 W | Output voltage: 15 / 15 V DC | Output current: 1.6 / 1.6 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-50D15B Output power: 50 W | Output voltage: 15 / 15 V DC | Output current: 1.6 / 1.6 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYSP-75D05A Output power: 75 W | Output voltage: 5 / 9 V DC | Output current: 7.5 / 4.0 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.6 kg
WYSP-75D05B Output power: 75 W | Output voltage: 5 / 9 V DC | Output current: 7.5 / 4.0 A | Input voltage: AC 90-264 V | Efficiency: 65% typ | Weight: 0.6 kg
WYSP-75D0512A Output power: 75 W | Output voltage: 5 / 12 V DC | Output current: 5.0 / 4.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYSP-75D0512B Output power: 75 W | Output voltage: 5 / 12 V DC | Output current: 5.0 / 4.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYSP-75D0524A Output power: 75 W | Output voltage: 5 / 24 V DC | Output current: 3.0 / 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYSP-75D0524B Output power: 75 W | Output voltage: 5 / 24 V DC | Output current: 3.0 / 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYSP-75D12A Output power: 75 W | Output voltage: 12 / 12 V DC | Output current: 3.1 / 3.1 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.6 kg
WYSP-75D12B Output power: 75 W | Output voltage: 12 / 12 V DC | Output current: 3.1 / 3.1 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.6 kg
WYSP-75D15A Output power: 75 W | Output voltage: 15 / 15 V DC | Output current: 2.5 / 2.5 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.6 kg
WYSP-75D15B Output power: 75 W | Output voltage: 15 / 15 V DC | Output current: 2.5 / 2.5 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.6 kg
