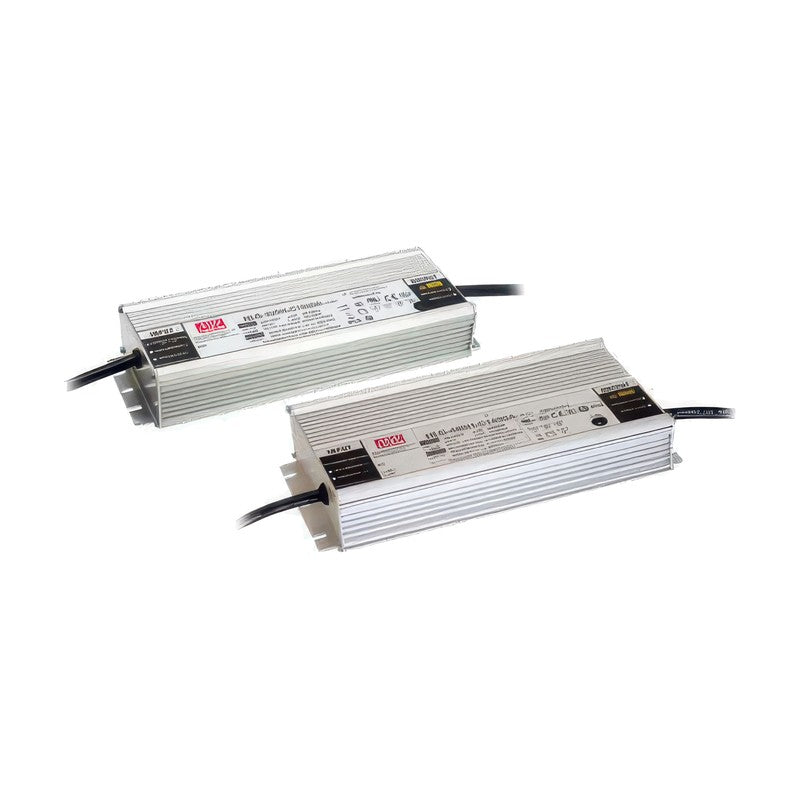

MEAN WELL HLG-C Series Constant Current LED Driver (60-480 W, IP67/IP65)

MEAN WELL HLG-C Series Constant Current LED Driver (60-480 W, IP67/IP65)

The HLG-C series is a constant current mode LED driver in a metal housing with Class I design, covering 60 to 480 W.

Key features

  • Wide 90~305 VAC input and efficiency up to 95%
  • Type HL rated for use in Class I, Division 2 hazardous location luminaires
  • Available in A, B, AB, D, D2/Dx and DA variants
  • Protections: short circuit, over voltage and over temperature. 7-year warranty

Specifications

Input voltage 90~305 VAC
Model suffix options A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-60H-C Output current: 350, 700 mA | Dimensions: 171x61.5x36.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-80H-C Output current: 350, 700 mA | Dimensions: 195.6x61.5x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-120H-C Output current: 350, 500, 700, 1050, 1400 mA | Dimensions: 220x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-185H-C Output current: 500, 700, 1050, 1400 mA | Dimensions: 228x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-240H-C Output current: 700, 1050, 1400, 1750, 2100 mA | Dimensions: 244.2x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-320H-C Output current: 700, 1050, 1400, 1750, 2100, 2800, 3500 mA | Dimensions: 252x90x43.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-480H-C Output current: 1400, 1750, 2100, 2800, 3500 mA | Dimensions: 262x125x43.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
LED DriversMEAN WELL
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL HLG-C Series Constant Current LED Driver (60-480 W, IP67/IP65)

Brand MEAN WELL·LED Drivers

Available part numbers (7)

HLG-60H-C, HLG-80H-C, HLG-120H-C, HLG-185H-C, HLG-240H-C, HLG-320H-C, HLG-480H-C

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HLG-60H-COutput current: 350, 700 mA | Dimensions: 171x61.5x36.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-80H-COutput current: 350, 700 mA | Dimensions: 195.6x61.5x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-120H-COutput current: 350, 500, 700, 1050, 1400 mA | Dimensions: 220x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-185H-COutput current: 500, 700, 1050, 1400 mA | Dimensions: 228x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-240H-COutput current: 700, 1050, 1400, 1750, 2100 mA | Dimensions: 244.2x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-320H-COutput current: 700, 1050, 1400, 1750, 2100, 2800, 3500 mA | Dimensions: 252x90x43.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
HLG-480H-COutput current: 1400, 1750, 2100, 2800, 3500 mA | Dimensions: 262x125x43.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, D (60~185 W), D2/Dx (240~480 W), DA (320 W only)
