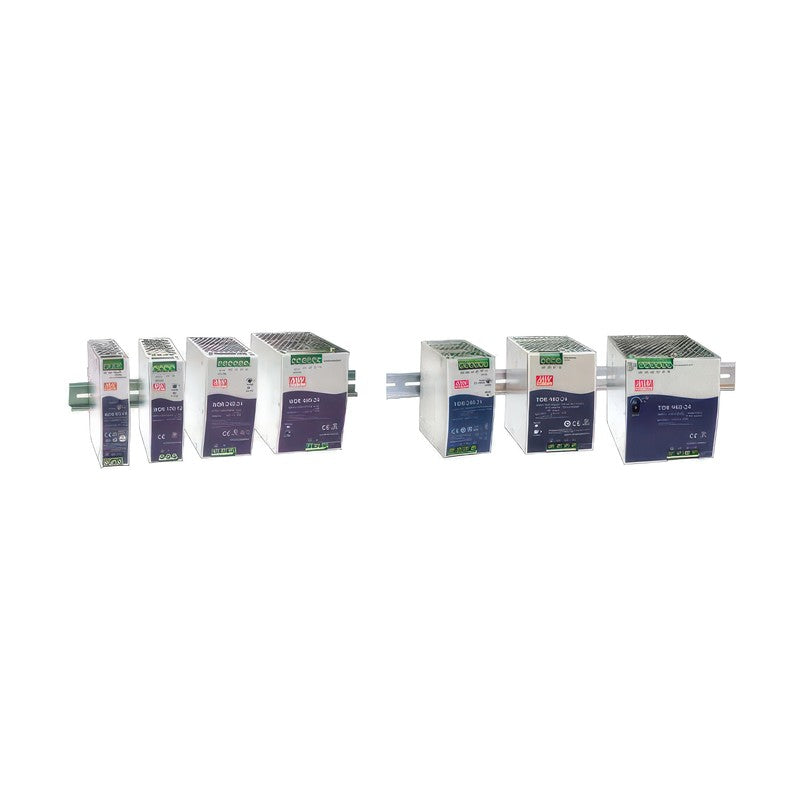

MEAN WELL TDR Series Three-Phase Wide Input DIN Rail Power Supply (240-960W)

MEAN WELL TDR Series Three-Phase Wide Input DIN Rail Power Supply (240-960W)

The TDR series is a 240-960W three-phase wide input DIN rail power supply.

Key features

  • Key features: 3-phase, 340~550VAC wide range input (2-phase operation possible); Slim width with 63~110 mm; DIN Rail:TS-35/7.5 or TS-35/15; Built-in active PFC function(TDR-480/960) Built-in passive PFC function(TDR-240); High efficiency up to 94.5%
  • Also: Cooling by free air convection; Protections: Overload/Over Voltage/Over Temp; DC output voltage adjustable; UL508 /UL61010-1 Industrial control equipment approved
TDR-240 Output: 24V, 0~10A; 48V, 0~5A | Dimensions: 63x125.2x113.5 mm
TDR-480 Output: 24V, 0~20A; 48V, 0~10A | Dimensions: 85.5x125.2x128.5 mm
TDR-960 Output: 24V, 0~40A; 48V, 0~20A | Dimensions: 110x125.2x150 mm
DIN Rail Power SuppliesMEAN WELL
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL TDR Series Three-Phase Wide Input DIN Rail Power Supply (240-960W)

Brand MEAN WELL·DIN Rail Power Supplies

Available part numbers (3)

TDR-240, TDR-480, TDR-960

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TDR-240Output: 24V, 0~10A; 48V, 0~5A | Dimensions: 63x125.2x113.5 mm
TDR-480Output: 24V, 0~20A; 48V, 0~10A | Dimensions: 85.5x125.2x128.5 mm
TDR-960Output: 24V, 0~40A; 48V, 0~20A | Dimensions: 110x125.2x150 mm
