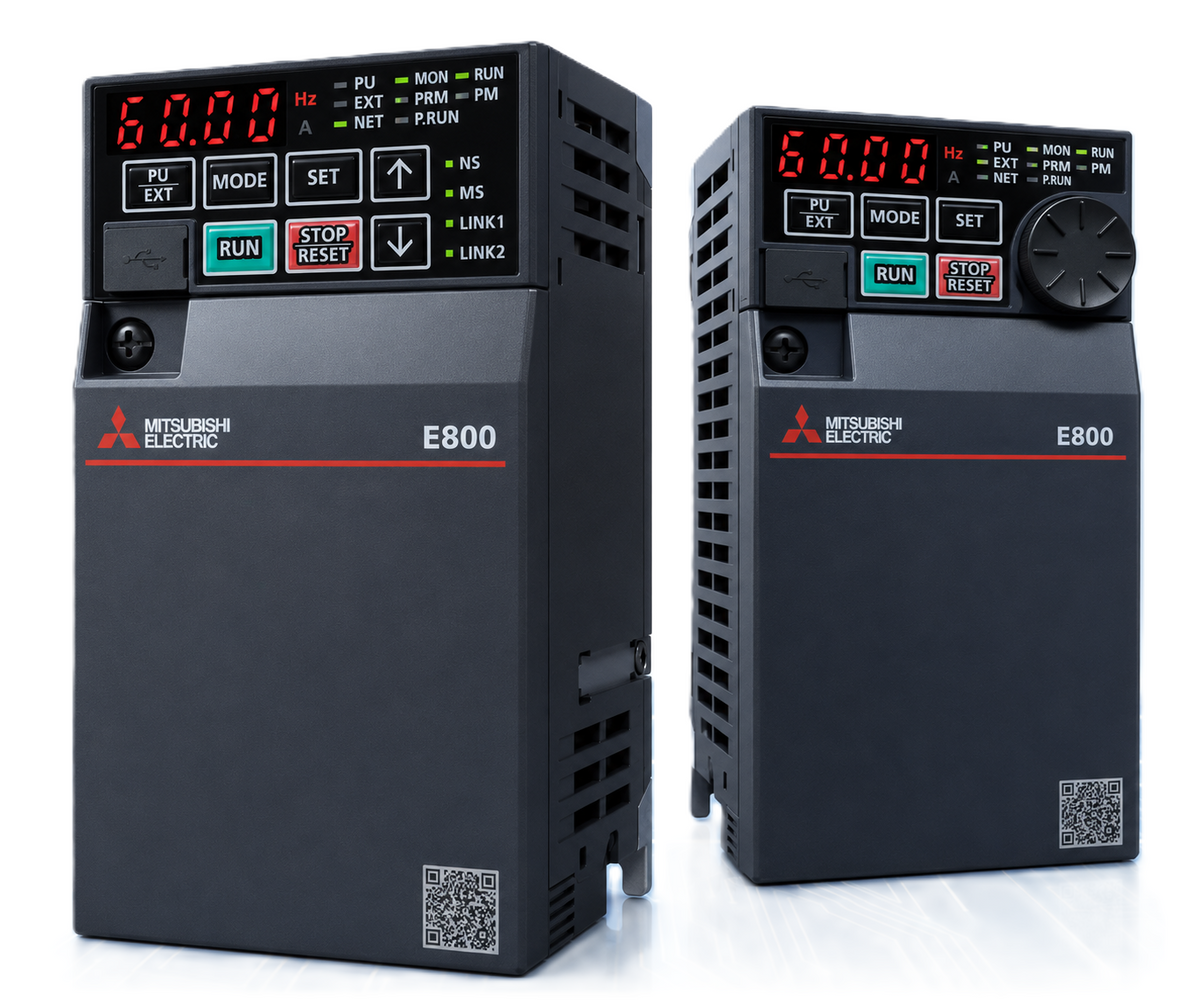

Mitsubishi Electric FR-E820 Compact Inverter (3-Phase 200V, 0.1–22kW, Safety Communication SIL3/PLe)

Mitsubishi Electric FR-E820 Compact Inverter (3-Phase 200V, 0.1–22kW, Safety Communication SIL3/PLe)

Mitsubishi Electric FR-E820 safety-communication-spec compact inverter, 3-phase 200–240V class, 0.1–22kW, with Ethernet and SIL3/PLe functional safety over network.

Key features

  • Dual LD/ND rating (model name = ND), overload 150% 60s / 200% 3s (ND) or 120% 60s / 150% 3s (LD) at 50°C, Soft-PWM control, open type IP20
  • Optional circuit board coating (-60/-06) available

Specifications

Control Logic Source
Availability Made-to-order
FR-E820-0.1KSCEPA FR-E820 compact inverter, 0.1kW ND, Safety SCEPA | Capacity ND: 0.1 kW (code 0008) | Motor LD: 0.2 kW | Rated Current ND: 0.8 A (0.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 1.3 A (1.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.3 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.1KSCEPB FR-E820 compact inverter, 0.1kW ND, Safety SCEPB | Capacity ND: 0.1 kW (code 0008) | Motor LD: 0.2 kW | Rated Current ND: 0.8 A (0.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 1.3 A (1.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.3 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.2KSCEPA FR-E820 compact inverter, 0.2kW ND, Safety SCEPA | Capacity ND: 0.2 kW (code 0015) | Motor LD: 0.4 kW | Rated Current ND: 1.5 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.0 A (1.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.6 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.2KSCEPB FR-E820 compact inverter, 0.2kW ND, Safety SCEPB | Capacity ND: 0.2 kW (code 0015) | Motor LD: 0.4 kW | Rated Current ND: 1.5 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.0 A (1.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.6 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.4KSCEPA FR-E820 compact inverter, 0.4kW ND, Safety SCEPA | Capacity ND: 0.4 kW (code 0030) | Motor LD: 0.75 kW | Rated Current ND: 3.0 A (2.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 0.7 kg | Availability: Made-to-order
FR-E820-0.4KSCEPB FR-E820 compact inverter, 0.4kW ND, Safety SCEPB | Capacity ND: 0.4 kW (code 0030) | Motor LD: 0.75 kW | Rated Current ND: 3.0 A (2.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 0.7 kg | Availability: Made-to-order
FR-E820-0.75KSCEPA FR-E820 compact inverter, 0.75kW ND, Safety SCEPA | Capacity ND: 0.75 kW (code 0050) | Motor LD: 1.1 kW | Rated Current ND: 5.0 A (4.1 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.0 A (5.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.0 kg | Availability: Made-to-order
FR-E820-0.75KSCEPB FR-E820 compact inverter, 0.75kW ND, Safety SCEPB | Capacity ND: 0.75 kW (code 0050) | Motor LD: 1.1 kW | Rated Current ND: 5.0 A (4.1 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.0 A (5.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.0 kg | Availability: Made-to-order
FR-E820-1.5KSCEPA FR-E820 compact inverter, 1.5kW ND, Safety SCEPA | Capacity ND: 1.5 kW (code 0080) | Motor LD: 2.2 kW | Rated Current ND: 8.0 A (7.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 9.6 A (8.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.2 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-1.5KSCEPB FR-E820 compact inverter, 1.5kW ND, Safety SCEPB | Capacity ND: 1.5 kW (code 0080) | Motor LD: 2.2 kW | Rated Current ND: 8.0 A (7.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 9.6 A (8.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.2 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-2.2KSCEPA FR-E820 compact inverter, 2.2kW ND, Safety SCEPA | Capacity ND: 2.2 kW (code 0110) | Motor LD: 3.0 kW | Rated Current ND: 11.0 A (10.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 12.0 A (10.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.4 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-2.2KSCEPB FR-E820 compact inverter, 2.2kW ND, Safety SCEPB | Capacity ND: 2.2 kW (code 0110) | Motor LD: 3.0 kW | Rated Current ND: 11.0 A (10.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 12.0 A (10.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.4 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-3.7KSCEPA FR-E820 compact inverter, 3.7kW ND, Safety SCEPA | Capacity ND: 3.7 kW (code 0175) | Motor LD: 5.5 kW | Rated Current ND: 17.5 A (16.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 19.6 A (16.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E820-3.7KSCEPB FR-E820 compact inverter, 3.7kW ND, Safety SCEPB | Capacity ND: 3.7 kW (code 0175) | Motor LD: 5.5 kW | Rated Current ND: 17.5 A (16.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 19.6 A (16.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E820-5.5KSCEPA FR-E820 compact inverter, 5.5kW ND, Safety SCEPA | Capacity ND: 5.5 kW (code 0240) | Motor LD: 7.5 kW | Rated Current ND: 24.0 A (23.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 30.0 A (25.5 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.6 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-5.5KSCEPB FR-E820 compact inverter, 5.5kW ND, Safety SCEPB | Capacity ND: 5.5 kW (code 0240) | Motor LD: 7.5 kW | Rated Current ND: 24.0 A (23.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 30.0 A (25.5 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.6 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-7.5KSCEPA FR-E820 compact inverter, 7.5kW ND, Safety SCEPA | Capacity ND: 7.5 kW (code 0330) | Motor LD: 11.0 kW | Rated Current ND: 33.0 A (31.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 40.0 A (34.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.1 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-7.5KSCEPB FR-E820 compact inverter, 7.5kW ND, Safety SCEPB | Capacity ND: 7.5 kW (code 0330) | Motor LD: 11.0 kW | Rated Current ND: 33.0 A (31.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 40.0 A (34.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.1 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-11KSCEPA FR-E820 compact inverter, 11.0kW ND, Safety SCEPA | Capacity ND: 11.0 kW (code 0470) | Motor LD: 15.0 kW | Rated Current ND: 47.0 A (44.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 56.0 A (47.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 18.7 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.4 kg | Availability: Made-to-order
FR-E820-11KSCEPB FR-E820 compact inverter, 11.0kW ND, Safety SCEPB | Capacity ND: 11.0 kW (code 0470) | Motor LD: 15.0 kW | Rated Current ND: 47.0 A (44.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 56.0 A (47.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 18.7 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.4 kg | Availability: Made-to-order
FR-E820-15KSCEPA FR-E820 compact inverter, 15.0kW ND, Safety SCEPA | Capacity ND: 15.0 kW (code 0600) | Motor LD: 18.5 kW | Rated Current ND: 60.0 A (57.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 69.0 A (58.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 23.9 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.6 kg | Availability: Made-to-order
FR-E820-15KSCEPB FR-E820 compact inverter, 15.0kW ND, Safety SCEPB | Capacity ND: 15.0 kW (code 0600) | Motor LD: 18.5 kW | Rated Current ND: 60.0 A (57.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 69.0 A (58.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 23.9 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.6 kg | Availability: Made-to-order
FR-E820-18.5KSCEPA FR-E820 compact inverter, 18.5kW ND, Safety SCEPA | Capacity ND: 18.5 kW (code 0760) | Motor LD: 22.0 kW | Rated Current ND: 76.0 A (72.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 88.0 A (74.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 30.3 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E820-18.5KSCEPB FR-E820 compact inverter, 18.5kW ND, Safety SCEPB | Capacity ND: 18.5 kW (code 0760) | Motor LD: 22.0 kW | Rated Current ND: 76.0 A (72.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 88.0 A (74.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 30.3 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E820-22KSCEPA FR-E820 compact inverter, 22.0kW ND, Safety SCEPA | Capacity ND: 22.0 kW (code 0900) | Motor LD: 30.0 kW | Rated Current ND: 90.0 A (86.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 115.0 A (97.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 35.9 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E820-22KSCEPB FR-E820 compact inverter, 22.0kW ND, Safety SCEPB | Capacity ND: 22.0 kW (code 0900) | Motor LD: 30.0 kW | Rated Current ND: 90.0 A (86.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 115.0 A (97.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 35.9 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
Inverters (VFD)Mitsubishi Electric
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-E820 Compact Inverter (3-Phase 200V, 0.1–22kW, Safety Communication SIL3/PLe)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (26)

FR-E820-0.1KSCEPA, FR-E820-0.1KSCEPB, FR-E820-0.2KSCEPA, FR-E820-0.2KSCEPB, FR-E820-0.4KSCEPA, FR-E820-0.4KSCEPB, FR-E820-0.75KSCEPA, FR-E820-0.75KSCEPB, FR-E820-1.5KSCEPA, FR-E820-1.5KSCEPB + 16 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-E820-0.1KSCEPAFR-E820 compact inverter, 0.1kW ND, Safety SCEPA | Capacity ND: 0.1 kW (code 0008) | Motor LD: 0.2 kW | Rated Current ND: 0.8 A (0.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 1.3 A (1.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.3 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.1KSCEPBFR-E820 compact inverter, 0.1kW ND, Safety SCEPB | Capacity ND: 0.1 kW (code 0008) | Motor LD: 0.2 kW | Rated Current ND: 0.8 A (0.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 1.3 A (1.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.3 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.2KSCEPAFR-E820 compact inverter, 0.2kW ND, Safety SCEPA | Capacity ND: 0.2 kW (code 0015) | Motor LD: 0.4 kW | Rated Current ND: 1.5 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.0 A (1.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.6 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.2KSCEPBFR-E820 compact inverter, 0.2kW ND, Safety SCEPB | Capacity ND: 0.2 kW (code 0015) | Motor LD: 0.4 kW | Rated Current ND: 1.5 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.0 A (1.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.6 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.4KSCEPAFR-E820 compact inverter, 0.4kW ND, Safety SCEPA | Capacity ND: 0.4 kW (code 0030) | Motor LD: 0.75 kW | Rated Current ND: 3.0 A (2.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 0.7 kg | Availability: Made-to-order
FR-E820-0.4KSCEPBFR-E820 compact inverter, 0.4kW ND, Safety SCEPB | Capacity ND: 0.4 kW (code 0030) | Motor LD: 0.75 kW | Rated Current ND: 3.0 A (2.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 0.7 kg | Availability: Made-to-order
FR-E820-0.75KSCEPAFR-E820 compact inverter, 0.75kW ND, Safety SCEPA | Capacity ND: 0.75 kW (code 0050) | Motor LD: 1.1 kW | Rated Current ND: 5.0 A (4.1 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.0 A (5.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.0 kg | Availability: Made-to-order
FR-E820-0.75KSCEPBFR-E820 compact inverter, 0.75kW ND, Safety SCEPB | Capacity ND: 0.75 kW (code 0050) | Motor LD: 1.1 kW | Rated Current ND: 5.0 A (4.1 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.0 A (5.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.0 kg | Availability: Made-to-order
FR-E820-1.5KSCEPAFR-E820 compact inverter, 1.5kW ND, Safety SCEPA | Capacity ND: 1.5 kW (code 0080) | Motor LD: 2.2 kW | Rated Current ND: 8.0 A (7.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 9.6 A (8.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.2 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-1.5KSCEPBFR-E820 compact inverter, 1.5kW ND, Safety SCEPB | Capacity ND: 1.5 kW (code 0080) | Motor LD: 2.2 kW | Rated Current ND: 8.0 A (7.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 9.6 A (8.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.2 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-2.2KSCEPAFR-E820 compact inverter, 2.2kW ND, Safety SCEPA | Capacity ND: 2.2 kW (code 0110) | Motor LD: 3.0 kW | Rated Current ND: 11.0 A (10.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 12.0 A (10.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.4 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-2.2KSCEPBFR-E820 compact inverter, 2.2kW ND, Safety SCEPB | Capacity ND: 2.2 kW (code 0110) | Motor LD: 3.0 kW | Rated Current ND: 11.0 A (10.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 12.0 A (10.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.4 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-3.7KSCEPAFR-E820 compact inverter, 3.7kW ND, Safety SCEPA | Capacity ND: 3.7 kW (code 0175) | Motor LD: 5.5 kW | Rated Current ND: 17.5 A (16.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 19.6 A (16.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E820-3.7KSCEPBFR-E820 compact inverter, 3.7kW ND, Safety SCEPB | Capacity ND: 3.7 kW (code 0175) | Motor LD: 5.5 kW | Rated Current ND: 17.5 A (16.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 19.6 A (16.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E820-5.5KSCEPAFR-E820 compact inverter, 5.5kW ND, Safety SCEPA | Capacity ND: 5.5 kW (code 0240) | Motor LD: 7.5 kW | Rated Current ND: 24.0 A (23.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 30.0 A (25.5 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.6 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-5.5KSCEPBFR-E820 compact inverter, 5.5kW ND, Safety SCEPB | Capacity ND: 5.5 kW (code 0240) | Motor LD: 7.5 kW | Rated Current ND: 24.0 A (23.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 30.0 A (25.5 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.6 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-7.5KSCEPAFR-E820 compact inverter, 7.5kW ND, Safety SCEPA | Capacity ND: 7.5 kW (code 0330) | Motor LD: 11.0 kW | Rated Current ND: 33.0 A (31.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 40.0 A (34.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.1 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-7.5KSCEPBFR-E820 compact inverter, 7.5kW ND, Safety SCEPB | Capacity ND: 7.5 kW (code 0330) | Motor LD: 11.0 kW | Rated Current ND: 33.0 A (31.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 40.0 A (34.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.1 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-11KSCEPAFR-E820 compact inverter, 11.0kW ND, Safety SCEPA | Capacity ND: 11.0 kW (code 0470) | Motor LD: 15.0 kW | Rated Current ND: 47.0 A (44.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 56.0 A (47.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 18.7 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.4 kg | Availability: Made-to-order
FR-E820-11KSCEPBFR-E820 compact inverter, 11.0kW ND, Safety SCEPB | Capacity ND: 11.0 kW (code 0470) | Motor LD: 15.0 kW | Rated Current ND: 47.0 A (44.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 56.0 A (47.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 18.7 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.4 kg | Availability: Made-to-order
FR-E820-15KSCEPAFR-E820 compact inverter, 15.0kW ND, Safety SCEPA | Capacity ND: 15.0 kW (code 0600) | Motor LD: 18.5 kW | Rated Current ND: 60.0 A (57.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 69.0 A (58.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 23.9 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.6 kg | Availability: Made-to-order
FR-E820-15KSCEPBFR-E820 compact inverter, 15.0kW ND, Safety SCEPB | Capacity ND: 15.0 kW (code 0600) | Motor LD: 18.5 kW | Rated Current ND: 60.0 A (57.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 69.0 A (58.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 23.9 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.6 kg | Availability: Made-to-order
FR-E820-18.5KSCEPAFR-E820 compact inverter, 18.5kW ND, Safety SCEPA | Capacity ND: 18.5 kW (code 0760) | Motor LD: 22.0 kW | Rated Current ND: 76.0 A (72.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 88.0 A (74.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 30.3 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E820-18.5KSCEPBFR-E820 compact inverter, 18.5kW ND, Safety SCEPB | Capacity ND: 18.5 kW (code 0760) | Motor LD: 22.0 kW | Rated Current ND: 76.0 A (72.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 88.0 A (74.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 30.3 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E820-22KSCEPAFR-E820 compact inverter, 22.0kW ND, Safety SCEPA | Capacity ND: 22.0 kW (code 0900) | Motor LD: 30.0 kW | Rated Current ND: 90.0 A (86.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 115.0 A (97.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 35.9 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E820-22KSCEPBFR-E820 compact inverter, 22.0kW ND, Safety SCEPB | Capacity ND: 22.0 kW (code 0900) | Motor LD: 30.0 kW | Rated Current ND: 90.0 A (86.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 115.0 A (97.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 35.9 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
