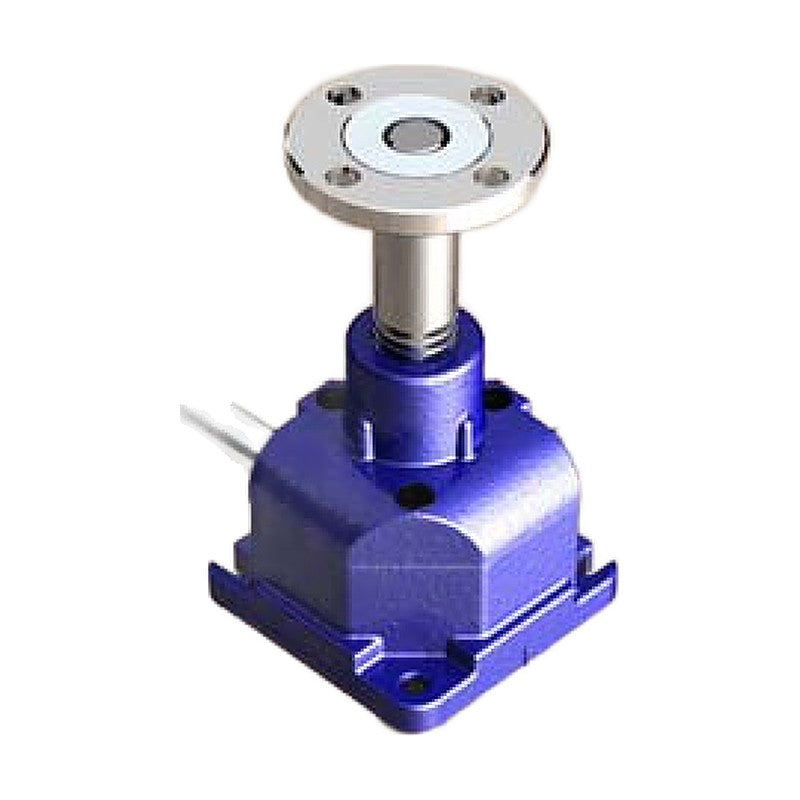

Myung Shin IP Series Power Base Rack-and-Pinion Lift Guide Unit (General Type, Single Unit)

Single rack-and-pinion gearbox guide unit used in sets of four, linked by torque shafts, to guide and synchronize up/down motion of frames and lifters.

Key features

Rack gear and pinion gear gearbox keeps parallel balance during up/down travel
Standard models from 300 kg to 20,000 kg load per set of 4
Gearbox center distance and stroke selectable by the designer
Can be driven by hydraulic/pneumatic cylinder, air spring or motor
Ball bearings inside the gearbox for long service life
Versions without flange or with rack gear flange (F)

Specifications

Type	Standard (general type)
Scale of drawing	1:1
Shaft pitch tolerance	±1 mm (IP300-IP1500), ±2 mm (IP3000-IP20000)
Rack gear finish	Black coloring
Gearbox	Painted

Myung Shin IP Series Power Base Rack-and-Pinion Lift Guide Unit (General Type, Single Unit) - reference 2

IP300-1S		Load: max. 300 kg per set of 4 \| Max stroke: 350 mm \| Gear module: M1 \| Flange: Without rack gear flange
IP500-1S		Load: max. 500 kg per set of 4 \| Max stroke: 600 mm \| Gear module: M1.5 \| Flange: Without rack gear flange
IP900-1S		Load: max. 900 kg per set of 4 \| Max stroke: 1300 mm \| Gear module: M1.5 \| Flange: Without rack gear flange
IP1500-1S		Load: max. 1,500 kg per set of 4 \| Max stroke: 1300 mm \| Gear module: M2 \| Flange: Without rack gear flange
IP3000-1S		Load: max. 3,000 kg per set of 4 \| Max stroke: 1500 mm \| Gear module: M3 \| Flange: Without rack gear flange
IP5000-1S		Load: max. 5,000 kg per set of 4 \| Max stroke: 1500 mm \| Gear module: M3 \| Flange: Without rack gear flange
IP10000-1S		Load: max. 10,000 kg per set of 4 \| Max stroke: 2000 mm \| Gear module: M3 \| Flange: Without rack gear flange
IP20000-1S		Load: max. 20,000 kg per set of 4 \| Max stroke: 2200 mm \| Gear module: M4 \| Flange: Without rack gear flange
IP300F-1S		Load: max. 300 kg per set of 4 \| Max stroke: 350 mm \| Gear module: M1 \| Flange: With rack gear flange
IP500F-1S		Load: max. 500 kg per set of 4 \| Max stroke: 600 mm \| Gear module: M1.5 \| Flange: With rack gear flange
IP900F-1S		Load: max. 900 kg per set of 4 \| Max stroke: 1300 mm \| Gear module: M1.5 \| Flange: With rack gear flange
IP1500F-1S		Load: max. 1,500 kg per set of 4 \| Max stroke: 1300 mm \| Gear module: M2 \| Flange: With rack gear flange
IP3000F-1S		Load: max. 3,000 kg per set of 4 \| Max stroke: 1500 mm \| Gear module: M3 \| Flange: With rack gear flange
IP5000F-1S		Load: max. 5,000 kg per set of 4 \| Max stroke: 1500 mm \| Gear module: M3 \| Flange: With rack gear flange
IP10000F-1S		Load: max. 10,000 kg per set of 4 \| Max stroke: 2000 mm \| Gear module: M3 \| Flange: With rack gear flange
IP20000F-1S		Load: max. 20,000 kg per set of 4 \| Max stroke: 2200 mm \| Gear module: M4 \| Flange: With rack gear flange
