Myung Shin IPB Series Power Base Lift Guide Unit with Miter Gearbox (4-Unit Set, Motor Drive)

Myung Shin IPB Series Power Base Lift Guide Unit with Miter Gearbox (4-Unit Set, Motor Drive)

Four-unit IP power base set driven through a central miter (bevel) gearbox for motorized up/down movement of light loads.

Key features

  • Miter gearbox with 1:1 ratio for motor drive
  • For moving light objects up and down
  • Power base center distance L x W specified at order
  • Also available as clean room type

Specifications

Type Standard
Units per set 4
Miter gearbox ratio 1/1

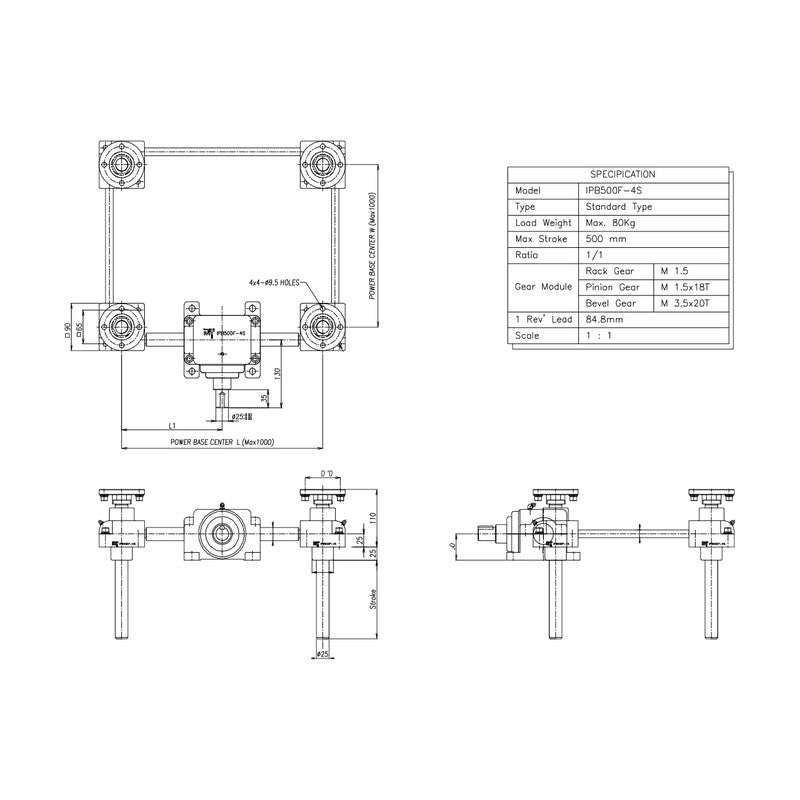

IPB500F-4S Load: max. 80 kg | Max stroke: 500 mm | Rack gear: M1.5 | Pinion gear: M1.5x18T | Bevel gear: M3.5x20T | Lead per rev: 84.8 mm
IPB900F-4S Load: max. 150 kg | Max stroke: 600 mm | Rack gear: M1.5 | Pinion gear: M1.5x21T | Bevel gear: M3.5x20T | Lead per rev: 98.9 mm
IPB1500F-4S Load: max. 250 kg | Max stroke: 900 mm | Rack gear: M2 | Pinion gear: M2x21T | Bevel gear: M3.5x20T | Lead per rev: 131.9 mm
Power BasesMyung Shin
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myung Shin IPB Series Power Base Lift Guide Unit with Miter Gearbox (4-Unit Set, Motor Drive)

Brand Myung Shin·Power Bases

Available part numbers (3)

IPB500F-4S, IPB900F-4S, IPB1500F-4S

How to order

Send the Myung Shin part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IPB500F-4SLoad: max. 80 kg | Max stroke: 500 mm | Rack gear: M1.5 | Pinion gear: M1.5x18T | Bevel gear: M3.5x20T | Lead per rev: 84.8 mm
IPB900F-4SLoad: max. 150 kg | Max stroke: 600 mm | Rack gear: M1.5 | Pinion gear: M1.5x21T | Bevel gear: M3.5x20T | Lead per rev: 98.9 mm
IPB1500F-4SLoad: max. 250 kg | Max stroke: 900 mm | Rack gear: M2 | Pinion gear: M2x21T | Bevel gear: M3.5x20T | Lead per rev: 131.9 mm
