Myung Shin IPH Series Power Base Lift Guide Unit with Worm Reducer (4-Unit Set, Handle or Motor Drive)

Myung Shin IPH Series Power Base Lift Guide Unit with Worm Reducer (4-Unit Set, Handle or Motor Drive)

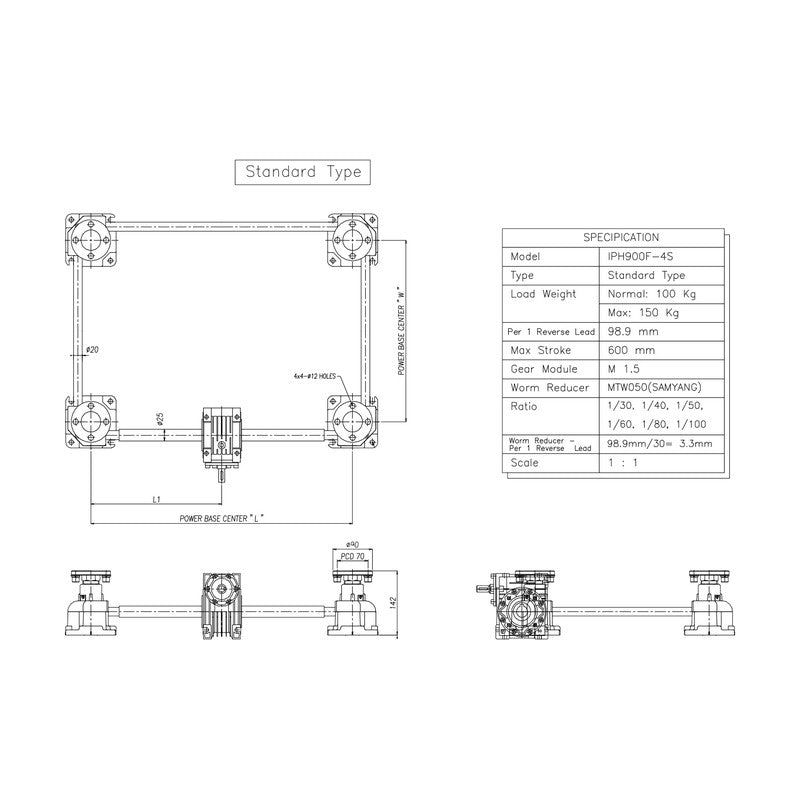

Four-unit IP power base set fitted with a worm reducer so the frame can be raised and lowered by handwheel or motor.

Key features

  • Worm reducer drive for handle or motor operation
  • Reduction ratio 1/40 or higher recommended to prevent back-driving and falling
  • Suited to lifting applications that do not require high precision
  • Also available as clean room type

Specifications

Type Standard type
Units per set 4
Worm reducer ratios 1/30, 1/40, 1/50, 1/60, 1/80, 1/100
Worm reducer make Samyang MTW series
IPH300F-4S Load: normal 20 kg, max. 50 kg | Lead per rev: 75.4 mm | Max stroke: 300 mm | Gear module: M1 | Worm reducer: MTW030 | Lead per reducer input rev (1/30): 2.5 mm
IPH500F-4S Load: normal 50 kg, max. 80 kg | Lead per rev: 84.8 mm | Max stroke: 400 mm | Gear module: M1.5 | Worm reducer: MTW040 | Lead per reducer input rev (1/30): 2.83 mm
IPH900F-4S Load: normal 100 kg, max. 150 kg | Lead per rev: 98.9 mm | Max stroke: 600 mm | Gear module: M1.5 | Worm reducer: MTW050 | Lead per reducer input rev (1/30): 3.3 mm
IPH1500F-4S Load: normal 180 kg, max. 250 kg | Lead per rev: 131.9 mm | Max stroke: 900 mm | Gear module: M2 | Worm reducer: MTW050 or MTW063 | Lead per reducer input rev (1/30): 4.4 mm
IPH3000F-4S Load: normal 300 kg, max. 400 kg | Lead per rev: 141.3 mm | Max stroke: 1000 mm | Gear module: M3 | Worm reducer: MTW063 | Lead per reducer input rev (1/30): 4.71 mm
